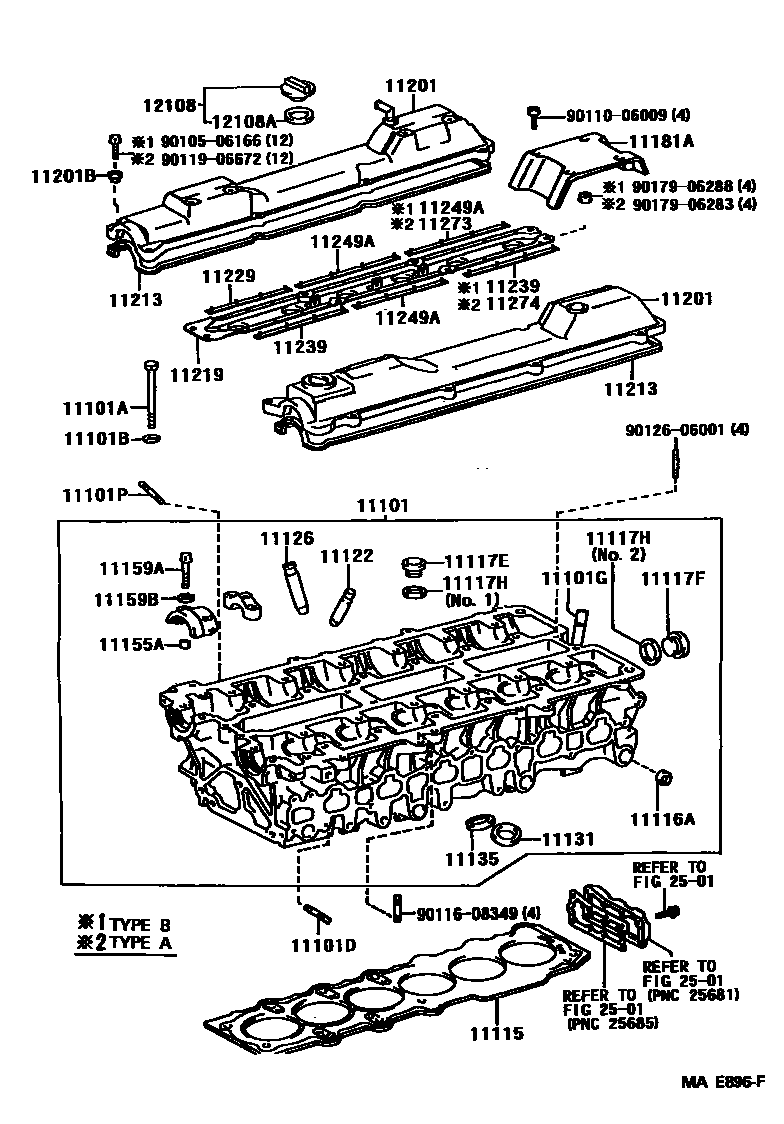

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
sub90201-11034
11101DBOLT, STUD(FOR WATER OUTLET)
11101GUNION(FOR CYLINDER HEAD)
11101PBOLT, STUD(FOR DISTRIBUTOR)
11116APLUG, TIGHT, NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
NO.1
NO.2
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159BWASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP)
FOR CAM CAP NO.1
11181ACOVER, CYLINDER HEAD, REAR
11201COVER SUB-ASSY, CYLINDER HEAD
INTAKE SIDE, TYPE A
sub11201-46031
sub11202-46010
sub11219-46011
sub11229-46010
sub11239-46010
sub11249-46010
sub90105-06166
sub90179-06288
sub90210-07001
INTAKE SIDE
sub11201-46031
sub11202-46010
sub11219-46011
sub11229-46010
sub11239-46010
sub11249-46010
sub90105-06166
sub90179-06288
sub90210-07001
EXHAUST SIDE
sub11202-46010
sub11201-46031
sub11219-46011
sub11229-46010
sub11239-46010
sub11249-46010
sub90105-06166
sub90179-06288
sub90210-07001
EXHAUST SIDE, TYPE A
sub11202-46010
sub11201-46031
sub11219-46011
sub11229-46010
sub11239-46010
sub11249-46010
sub90105-06166
sub90179-06288
sub90210-07001
EXHAUST SIDE, TYPE B
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
INTAKE SIDE
EXHAUST SIDE
11219COVER, CYLINDER HEAD, NO.3
TYPE B
TYPE A
11229GASKET, CYLINDER HEAD COVER, NO.3
TYPE B
TYPE A
11239GASKET, CLINDER HEAD CONER, NO.4
TYPE B
TYPE A
11249AGASKET, CLINDER HEAD CONER, NO.5
TYPE B
TYPE A
11273GASKET, CYLINDER BLOCK SIDE COVER
11274GASKET, CYLINDER HEAD COVER, NO.7
12108AGASKET(FOR OIL FILLER CAP)
2501
9010506166
main90105-06166
9011006009
main90110-06009
9011608349
main90116-08349
9011906672
main90119-06672
9012606001
main90126-06001
9017906283
main90179-06283
9017906288
main90179-06288
38 parts on this diagram · 1 diagram in section
