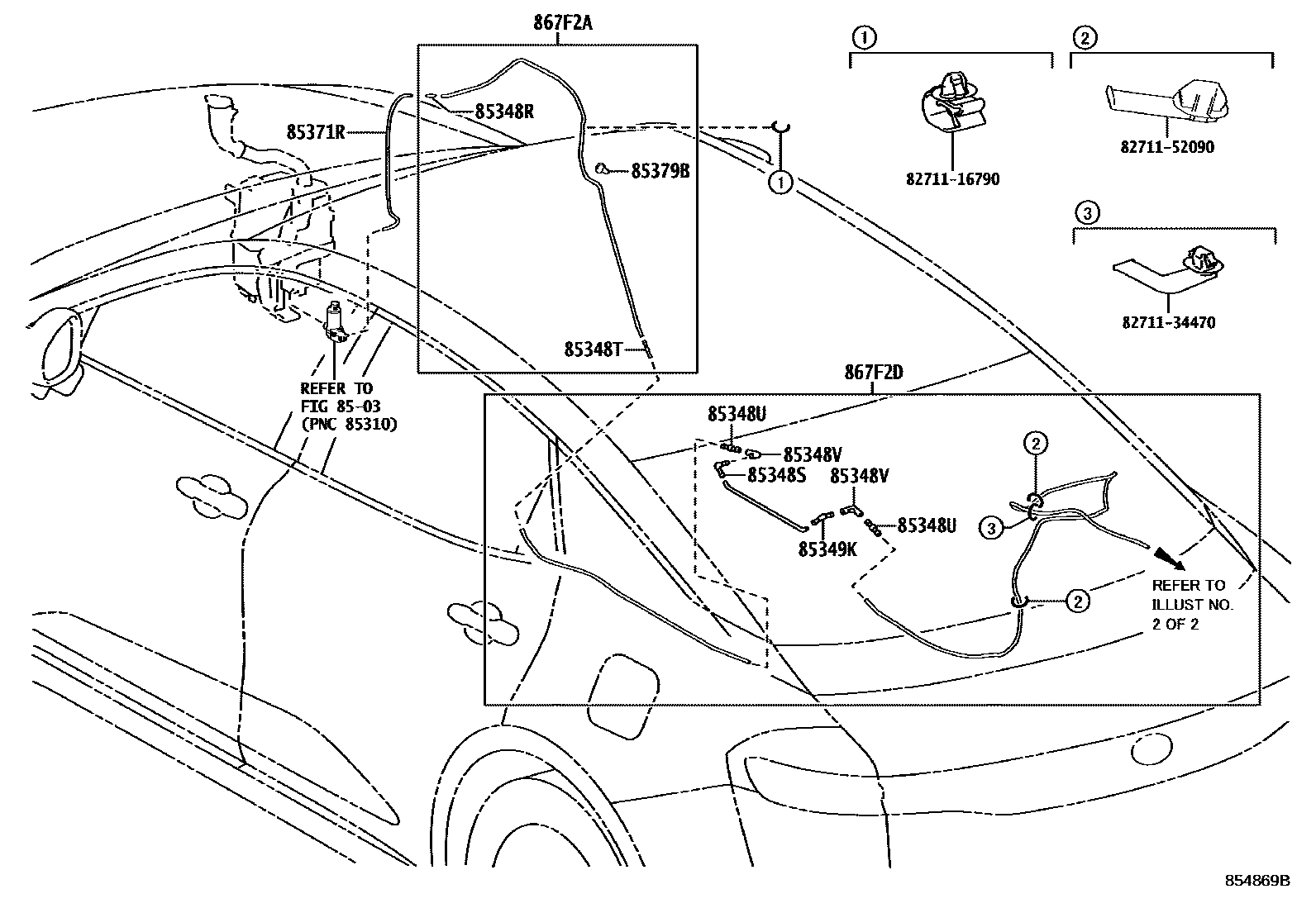

REAR WASHER
8503
85348RJOINT, REAR WASHER HOSE, NO.1
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
85348SJOINT, REAR WASHER ELBOW, NO.1
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
85348TJOINT, REAR WASHER HOSE, NO.2
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
85348UJOINT, REAR WASHER HOSE, NO.3
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
85348VJOINT, REAR WASHER HOSE, NO.4
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
85349KJOINT, REAR WASHER ELBOW, NO.2
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=480),USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G
L=1450(*H,L=480)
L=1450(*H,L=480),KOREA SPEC&USA MID LUX PACKAGE
L=1450(*H,L=480),USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE
85379BGROMMET, WASHER, A
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
867F2AHOSE ASSY, CAMERA CLEANER
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
867F2DHOSE, CAMERA CLEANER, NO.3
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE 24G&BACK MONITOR-WITH(*PVM)
KOREA SPEC&USA MID LUX PACKAGE&BACK MONITOR-WITH(*PVM)
USA MID LUX PACKAGE&US DRIVER SUPPORT PACKAGE&BACK MONITOR-WITH(*PVM)
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271134470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34470
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
14 parts on this diagram · 2 diagrams in section
