INVERTER COOLING

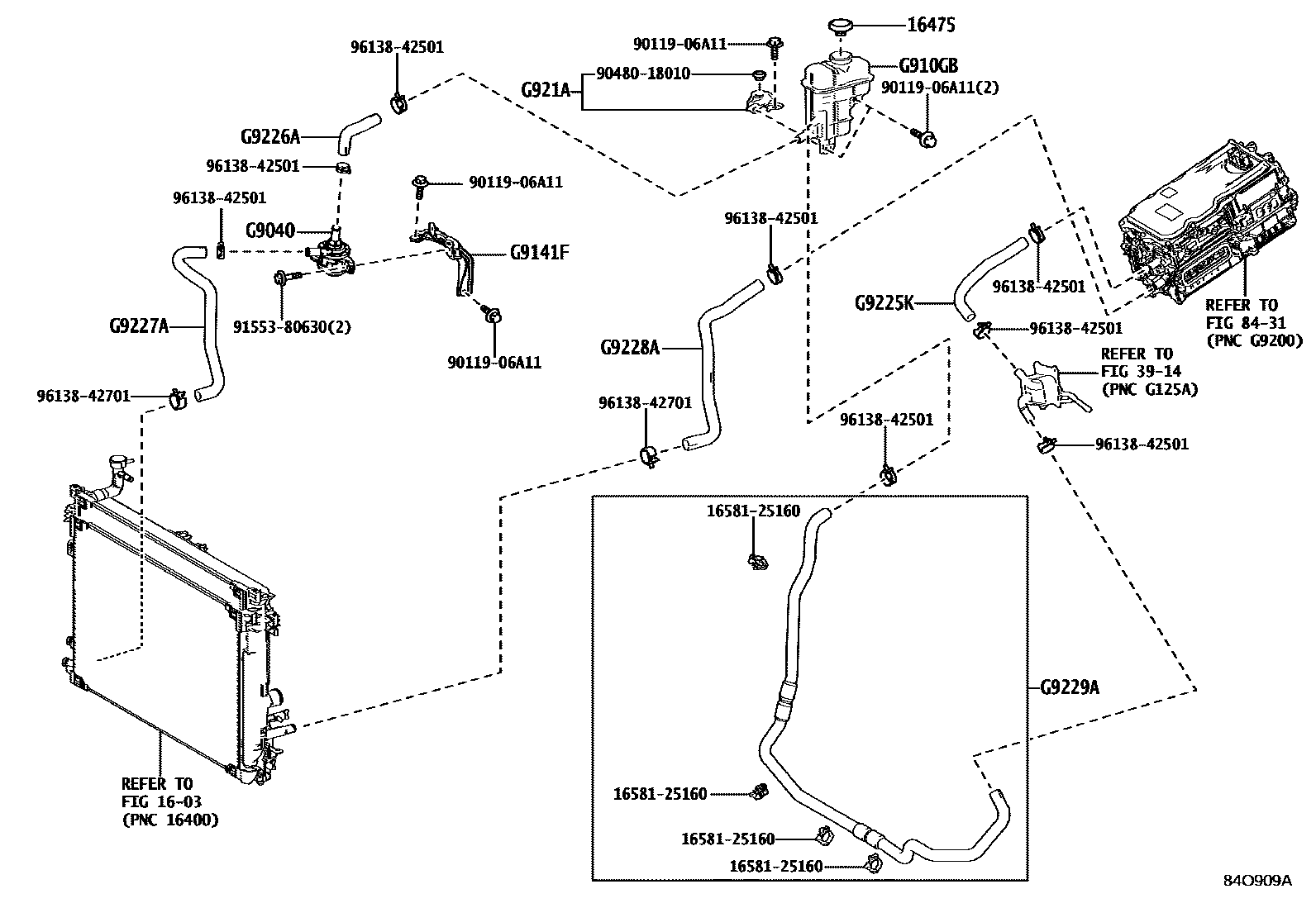

0001 1 0002 1FRONT PIPING 0003 1REAR PIPING

1603

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AZSH35202301

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048030iTZSH35202301

mainG904048050iAZSH35202301

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAZSH35202301

G9141FBRACKET, HV WATER PUMP

mainG914148040iTZSH35202301

mainG914178010iAZSH35202301

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAZSH35202301

G9225KHOSE, INVERTER COOLING, NO.1

mainG922533080iAZSH35202301

G9226AHOSE, INVERTER COOLING, NO.2

mainG922630030iTZSH35202301

mainG922642020iAZSH35202301

G9227AHOSE, INVERTER COOLING, NO.3

mainG922730050iAZSH35202301

mainG922748070iTZSH35202301

G9228AHOSE, INVERTER COOLING, NO.4

mainG922830060iAZSH35202301

mainG922848050iTZSH35202301

G9229AHOSE, INVERTER COOLING, NO.5

mainG922930070iAZSH35202301

mainG922948030iTZSH35202301

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9048018010

main90480-18010

9155380630

main91553-80630

9613842501

main96138-42501

9613842701

main96138-42701
