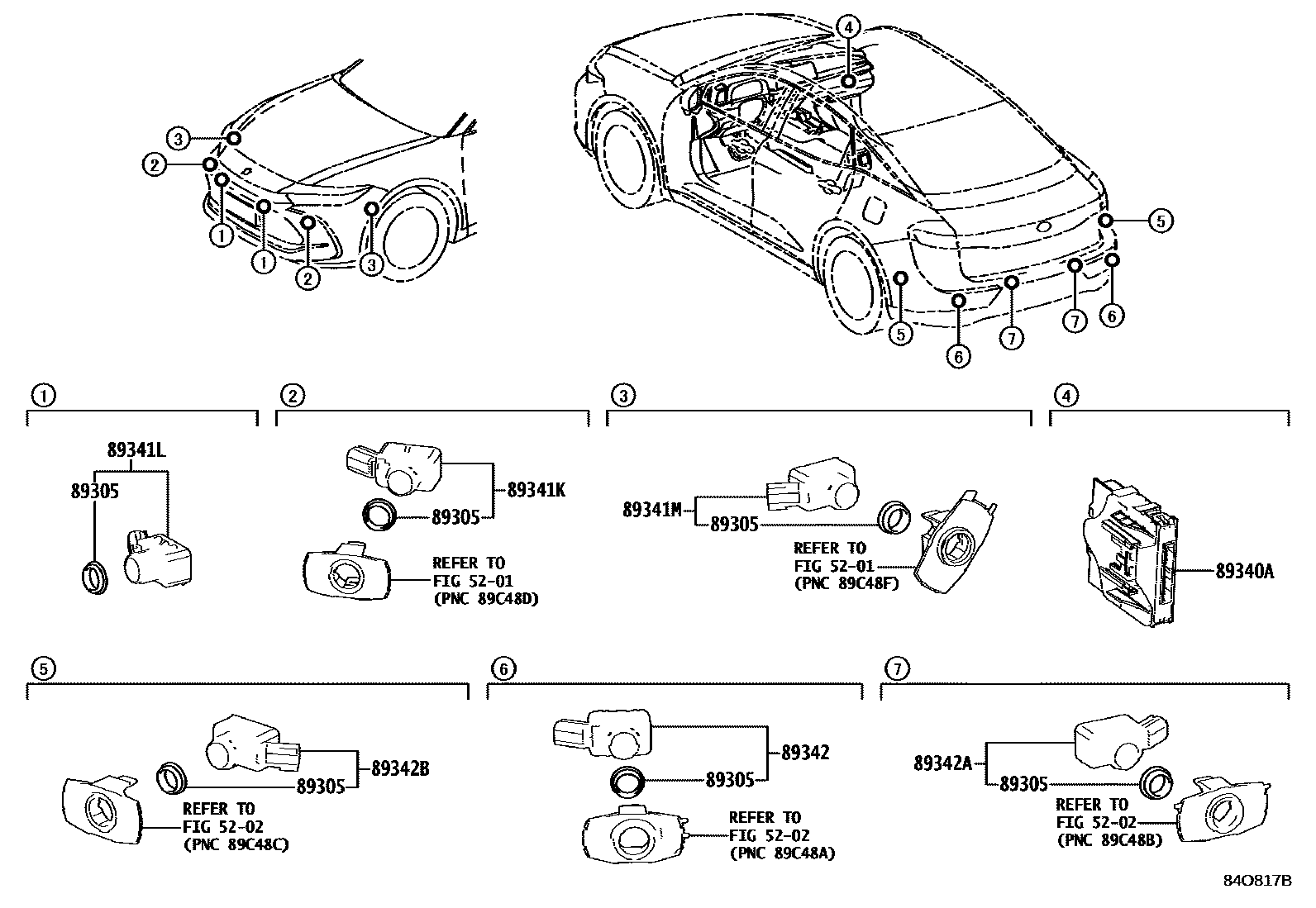

CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
USA MID LUX PACKAGE
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
KOREA SPEC,*614
KOREA SPEC&USA MID LUX PACKAGE&AUDIO-12.3INCH & 6SPEAKER & T2&BACK MONITOR-WITH(*PVM),*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
USA MID LUX PACKAGE,BLACK,202 ,2NB ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZR,BLACK PAINT
sub89341-50080
89341LSENSOR, ULTRASONIC, FRONT CENTER
BLACK,202 ,2NB ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YA ,2YZ ,2ZA ,2ZR
sub89341-50080
89341MSENSOR, ULTRASONIC, FRONT SIDE
PRECIOUS WHITE PEARL,090 ,2XW
GRAY ME.,1G3 ,2NB
BLACK,202
EMOTIONAL RED 2,2TB ,2YZ ,3U5
PRECIOUS BRONZE,2XZ ,4Y6
PRECIOUS METAL,1L5 ,2WC ,2ZA
MASSIVE GRAY,1L6 ,2XY
89342SENSOR, ULTRASONIC, REAR CORNER
BLACK,202 ,2NB ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YA ,2YZ ,2ZA ,2ZR
sub89341-50080
89342ASENSOR, ULTRASONIC, REAR CENTER
BLACK,202 ,2NB ,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YA ,2YZ ,2ZA ,2ZR
sub89341-50080
89342BSENSOR, ULTRASONIC, REAR SIDE
PRECIOUS WHITE PEARL,090 ,2XW
GRAY ME.,1G3 ,2NB
BLACK,202
EMOTIONAL RED 2,2TB ,2YZ ,3U5
PRECIOUS BRONZE,2XZ ,4Y6
PRECIOUS METAL,1L5 ,2WC ,2ZA
MASSIVE GRAY,1L6 ,2XY
10 parts on this diagram · 1 diagram in section
