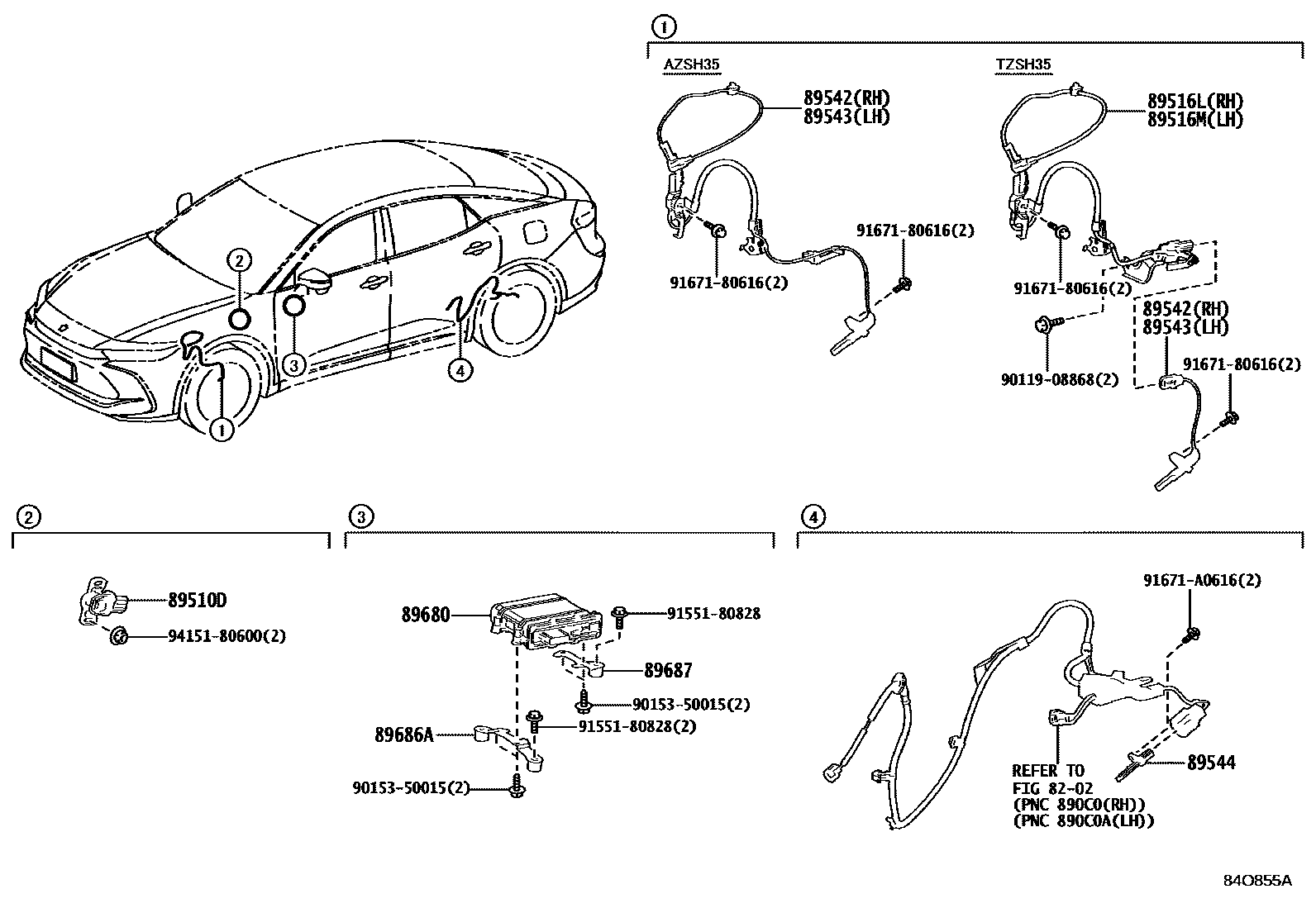

ABS & VSC

8202

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47040iAZSH35,TZSH35202301

89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH

main89516-30240iTZSH35202301

89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH

main89516-30250iTZSH35202301

89542SENSOR, SPEED, FRONT RH

main89542-30320iAZSH35202301

main89542-78040iTZSH35202301

89543SENSOR, SPEED, FRONT LH

main89543-30310iAZSH35202301

main89543-78040iTZSH35202301

89544SENSOR, SKID CONTROL

main89544-48050iAZSH35,TZSH35202301

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iAZSH35,TZSH35202301

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-30140iAZSH35,TZSH35202301

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-30020iAZSH35,TZSH35202301

9011908868

main90119-08868

9015350015

main90153-50015

9155180828

main91551-80828

9167180616

main91671-80616

91671A0616

main91671-A0616

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
