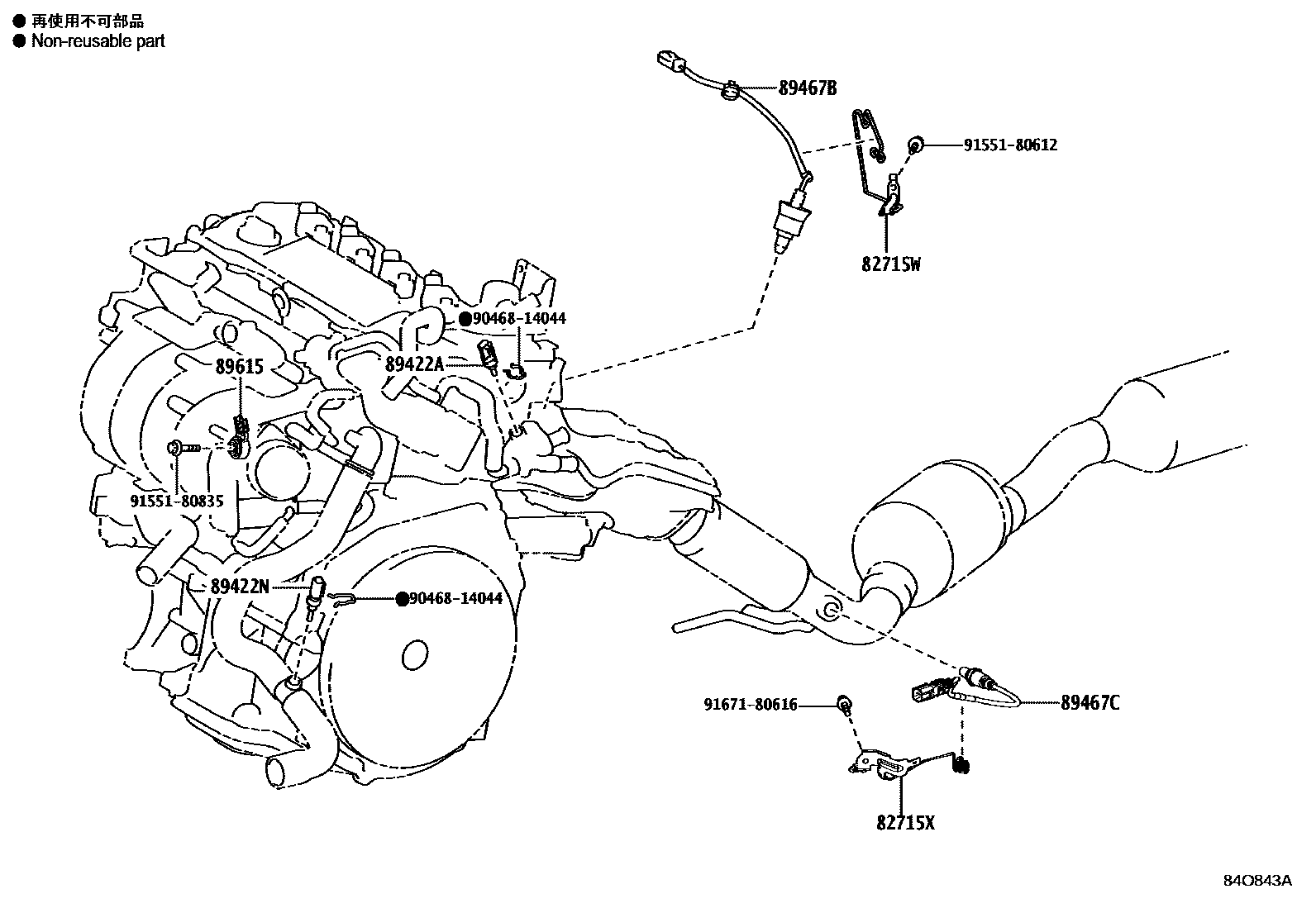

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1CONSOLE BOX 0008 1STEERING 0009 1SEAT 0010 1DOOR & ROOF 0011 1FLOOR & LUGGAGE

82715WBRACKET, WIRING HARNESS CLAMP

main82715-33V10iAZSH35202301

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-42K60iAZSH35202301

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAZSH35,TZSH35202301

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAZSH35202301

89467BSENSOR, AIR FUEL RATIO

main89467-33310iAZSH35202301

main89467-78040iTZSH35202301

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170iAZSH35202301

main89467-78050iTZSH35202301

89615SENSOR, KNOCK CONTROL

main89615-20090iAZSH35202301

main89615-78010iTZSH35202301

9046814044

main90468-14044

9155180612

main91551-80612

9155180835

main91551-80835

9167180616

main91671-80616

11 parts on this diagram · 11 diagrams in section
