METER

0001 1COMBINATION METER 0002 1HEAD UP DISPLAY

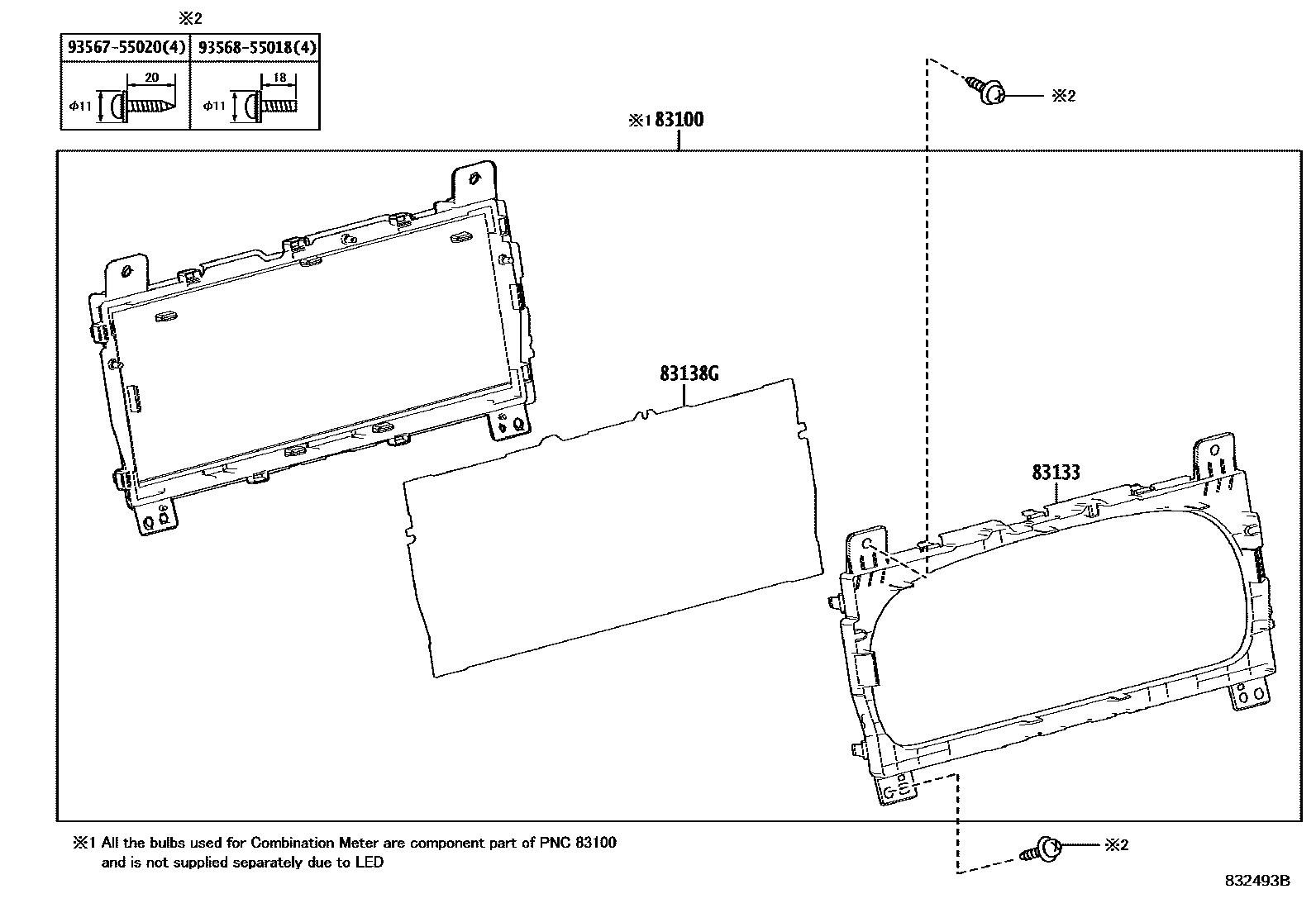

83100METER ASSY, COMBINATION

main83800-3AT10iTZSH35202301-202309

DENSO,*614

sub83800-3AT11

main83800-3AT11iTZSH35202309-202310

DENSO

sub83800-3AT12

main83800-3AV20iAZSH35202301-202309

DENSO,*614

sub83800-3AV21

main83800-3AV21iAZSH35202309-202310

DENSO

sub83800-3AV22

main83800-3AX40iAZSH35202404-202409

DENSO,*614

sub83800-3AX41

main83800-3AX41iAZSH35202410

DENSO,*614

main83800-3AX70iAZSH35202310-202404

DENSO,*614

main83800-3AX90iTZSH35202310-202404

DENSO,*614

main83800-3AY50iTZSH35202404-202409

DENSO,*614

sub83800-3AY51

main83800-3AY51iTZSH35202410

DENSO,*614

83133PLATE, COMBINATION METER, NO.1

main83811-3AS10iAZSH35,TZSH35202301

83138GGLASS, COMBINATION METER

main83852-3AS10iAZSH35,TZSH35202301

9356755020

main93567-55020

9356855018

main93568-55018

5 parts on this diagram · 2 diagrams in section
