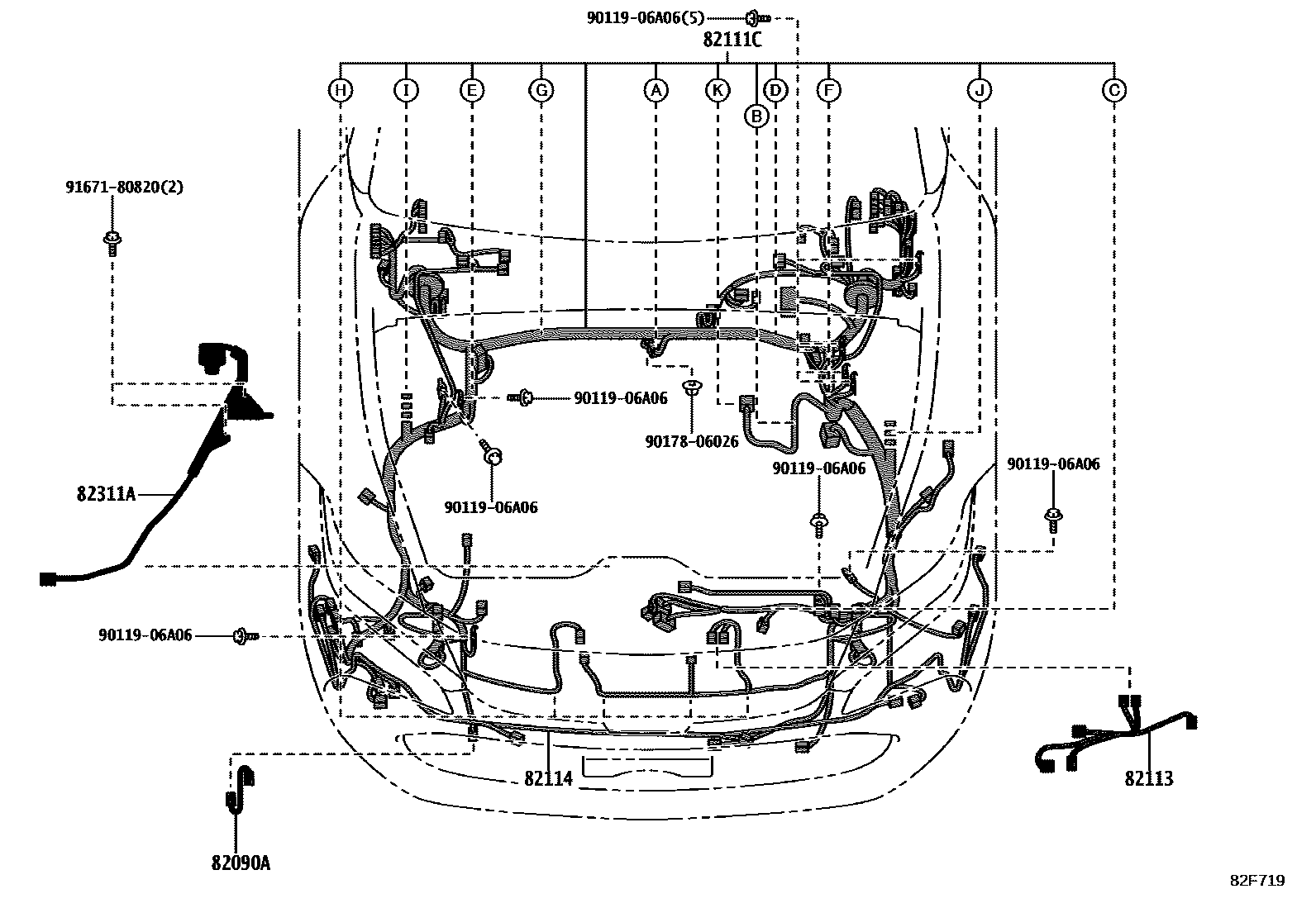

WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 0006 1ENGINE 0007 1INSTRUMENT PANEL & CONSOLE BO0008 1DOOR 0009 1FLOOR & ROOF 0010 1HIGH TENSION CABLE 0011 1HIGH TENSION CABLE 0012 1SEAT 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CONNECTOR 1/2 0016 1CONNECTOR 2/2

82090AWIRE ASSY, EXTENSION

main82090-33030iAZSH35202301

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-3FJ80iAZSH35202301-202404

main82111-3FJ81iAZSH35202404

main82111-3FL70iTZSH35202301-202310

main82111-3FL71iTZSH35202310-202404

main82111-3FL72iTZSH35202404

82113WIRE, ENGINE ROOM, NO.3

main82113-30A40iAZSH35,TZSH35202301

82114WIRE, ENGINE ROOM, NO.4

main82114-30560iTZSH35202301

main82114-30570iAZSH35202301

82311AWIRE, AIR CONDITIONER

main821H2-42020iAZSH35202301

main821H2-48040iTZSH35202301

9011906A06

main90119-06A06

9017806026

main90178-06026

9167180820

main91671-80820

8 parts on this diagram · 16 diagrams in section
