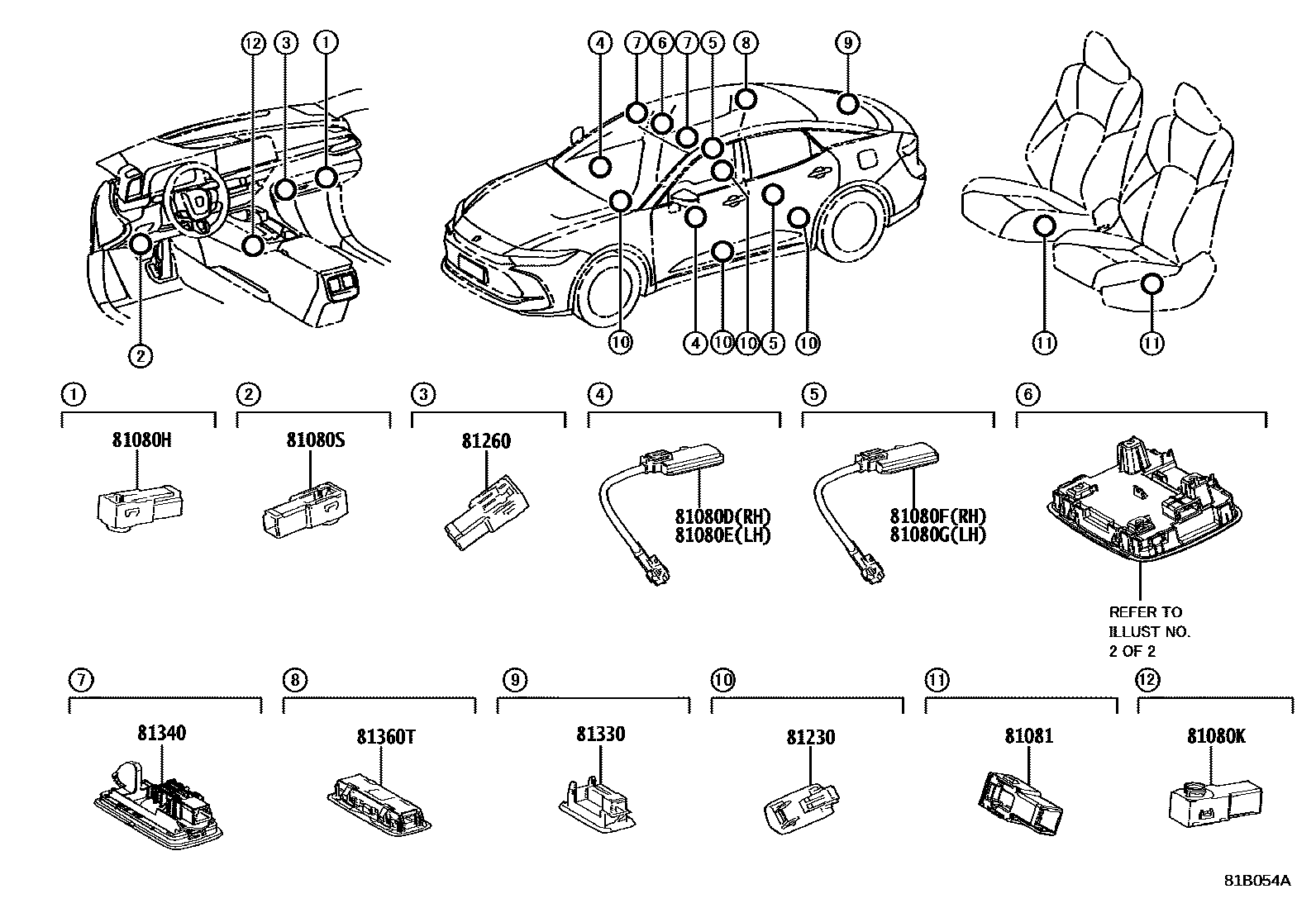

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
USA MID LUX PACKAGE&AUDIO-12.3 DISPLAY & JBL & 11SPEAKER & PREMIUM
KOREA SPEC&USA MID LUX PACKAGE&AUDIO-12.3INCH & 6SPEAKER & T2
KOREA SPEC&AUDIO-12.3INCH & 6SPEAKER & T2
KOREA SPEC
KOREA SPEC&USA MID LUX PACKAGE
USA MID LUX PACKAGE
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
KOREA SPEC
KOREA SPEC&USA MID LUX PACKAGE
USA MID LUX PACKAGE
KOREA SPEC&USA MID LUX PACKAGE&AUDIO-12.3INCH & 6SPEAKER & T2
KOREA SPEC&AUDIO-12.3INCH & 6SPEAKER & T2
USA MID LUX PACKAGE&AUDIO-12.3 DISPLAY & JBL & 11SPEAKER & PREMIUM
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
KOREA SPEC&USA MID LUX PACKAGE&AUDIO-12.3INCH & 6SPEAKER & T2
KOREA SPEC
KOREA SPEC&USA MID LUX PACKAGE
USA MID LUX PACKAGE
KOREA SPEC&AUDIO-12.3INCH & 6SPEAKER & T2
USA MID LUX PACKAGE&AUDIO-12.3 DISPLAY & JBL & 11SPEAKER & PREMIUM
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
KOREA SPEC&USA MID LUX PACKAGE
KOREA SPEC
USA MID LUX PACKAGE
KOREA SPEC&USA MID LUX PACKAGE&AUDIO-12.3INCH & 6SPEAKER & T2
KOREA SPEC&AUDIO-12.3INCH & 6SPEAKER & T2
USA MID LUX PACKAGE&AUDIO-12.3 DISPLAY & JBL & 11SPEAKER & PREMIUM
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
KOREA SPEC&USA MID LUX PACKAGE
KOREA SPEC
USA MID LUX PACKAGE
81230LAMP ASSY, COURTESY
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81360TLAMP ASSY, SPOT
FROMAGE,TRIM0#
BLACK,TRIM2#
13 parts on this diagram · 2 diagrams in section
