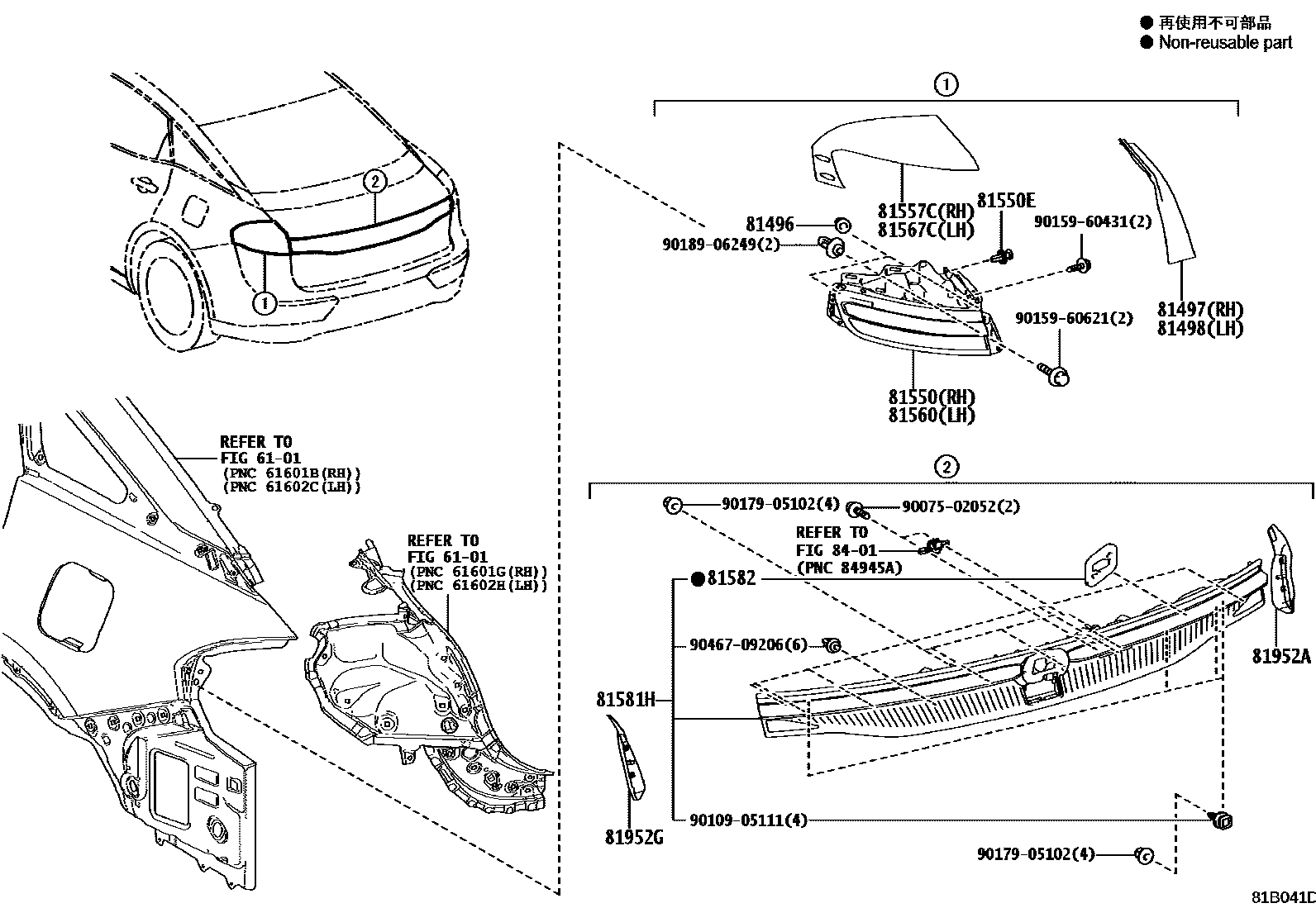

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
COLOR : BLACK
COLOR : WHITE
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550LAMP ASSY, REAR COMBINATION, RH
81550ECLIP(FOR REAR COMBINATION LAMP)
81557CCOVER, REAR COMBINATION LAMP, RH
PRECIOUS WHITE PEARL,090
GRAY ME.,1G3
PRECIOUS METAL,1L5
MASSIVE GRAY,1L6
BLACK,202 ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZR
EMOTIONAL RED 2,3U5
PRECIOUS BRONZE,4Y6
81560LAMP ASSY, REAR COMBINATION, LH
81567CCOVER, REAR COMBINATION LAMP, LH
PRECIOUS WHITE PEARL,090
GRAY ME.,1G3
PRECIOUS METAL,1L5
MASSIVE GRAY,1L6
BLACK,202 ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZR
EMOTIONAL RED 2,3U5
PRECIOUS BRONZE,4Y6
81581HLENS & BODY, REAR LAMP
81582GASKET, REAR LAMP
81952ACOVER, REAR LAMP, RH
81952GCOVER, REAR LAMP, LH
8401
9007502052
main90075-02052
9010905111
main90109-05111
9015960431
main90159-60431
9015960621
main90159-60621
9017905102
main90179-05102
9018906249
main90189-06249
9046709206
main90467-09206
21 parts on this diagram · 2 diagrams in section
