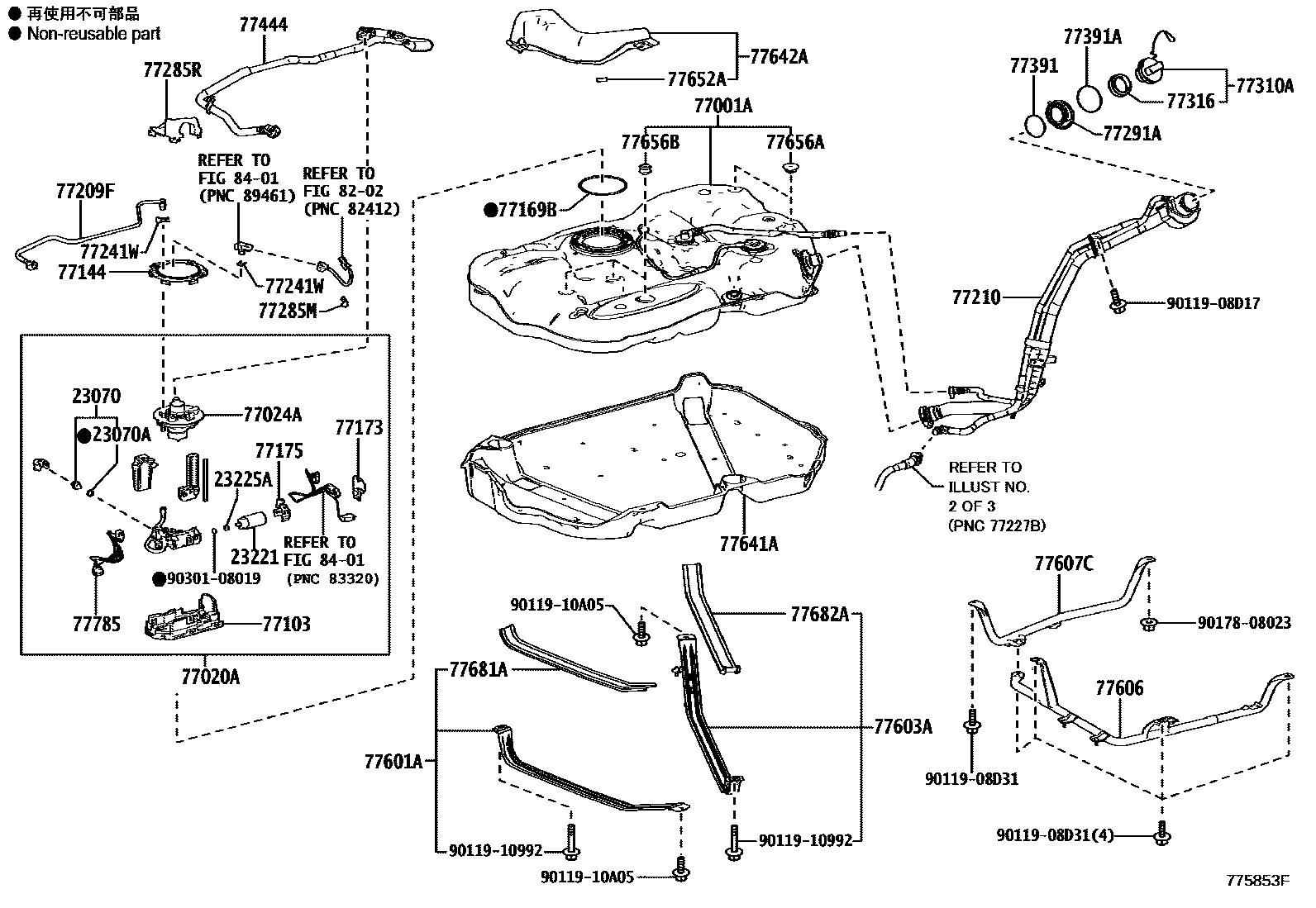

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-25020iA25AFXS,T24AFTS..AZSH35,TZSH35202301

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iA25AFXS,T24AFTS..AZSH35,TZSH35202301

23221PUMP, FUEL

main23221-25030iA25AFXS..AZSH35202301

main23221-25080iT24AFTS..TZSH35202301

23225ASPACER, FUEL PUMP

main23225-31020iA25AFXS,T24AFTS..AZSH35,TZSH35202301

77001ATANK SUB-ASSY, FUEL

main77001-30680iAZSH35,TZSH35202301

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-30470iTZSH35202301

main77020-42251iAZSH35202301

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-42150iAZSH35202301

main77024-48160iTZSH35202301

77103SUB-TANK SUB-ASSY, FUEL

main77103-12150iAZSH35202301

main77103-48100iTZSH35202301

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAZSH35,TZSH35202301

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47040iAZSH35,TZSH35202301

77173BRACKET, FUEL GAGE

main77173-12020iAZSH35,TZSH35202301

77175SUPPORT, FUEL SUCTION, NO.2

main77175-12030iAZSH35,TZSH35202301

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30430iAZSH35,TZSH35202301

77210PIPE ASSY, FUEL TANK FILLER

main77210-30240iAZSH35,TZSH35202301

77241WCLIP, TUBE JOINT

main77241-60550iAZSH35,TZSH35202301

77285MCLAMP, FUEL TUBE, NO.1

main77285-42240iAZSH35,TZSH35202301

77285RCLAMP, FUEL TUBE, NO.1

main77285-30410iAZSH35,TZSH35202301

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-33110iAZSH35,TZSH35202301

77310ACAP ASSY, FUEL TANK

main77300-53040iAZSH35,TZSH35202301

77316GASKET, FUEL TANK CAP

main77316-75020iAZSH35,TZSH35202301

77391RING, FUEL INLET BOX

main77391-12020iAZSH35,TZSH35202301

77391ARING, FUEL INLET BOX

main77391-33060iAZSH35,TZSH35202301

77444HOSE, FUEL TANK VENT

main77404-30120iAZSH35,TZSH35202301

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42120iAZSH35,TZSH35202301

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-30070iAZSH35,TZSH35202301

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30230iAZSH35,TZSH35202301

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-30020iAZSH35,TZSH35202301

77641APROTECTOR, FUEL TANK, NO.1

main77606-42050iAZSH35,TZSH35202301

77642APROTECTOR, FUEL TANK, NO.2

main77642-42070iAZSH35,TZSH35202301

77652ACUSHION, FUEL TANK, NO.2

main77652-42040iAZSH35,TZSH35202301

77656ACUSHION, FUEL TANK, NO.4

main77656-30040iAZSH35,TZSH35202301

77656BCUSHION, FUEL TANK, NO.6

main77656-33010iAZSH35,TZSH35202301

77681ASEAT, FUEL TANK BAND

main77681-42040iAZSH35,TZSH35202301

77682ASEAT, FUEL TANK BAND, NO.2

main77682-42010iAZSH35,TZSH35202301

77785HARNESS, FUEL PUMP

main77785-42070iAZSH35,TZSH35202301

8202

8401

9011908D17

main90119-08D17

9011908D31

main90119-08D31

9011910992

main90119-10992

9011910A05

main90119-10A05

9017808023

main90178-08023

9030108019

main90301-08019
