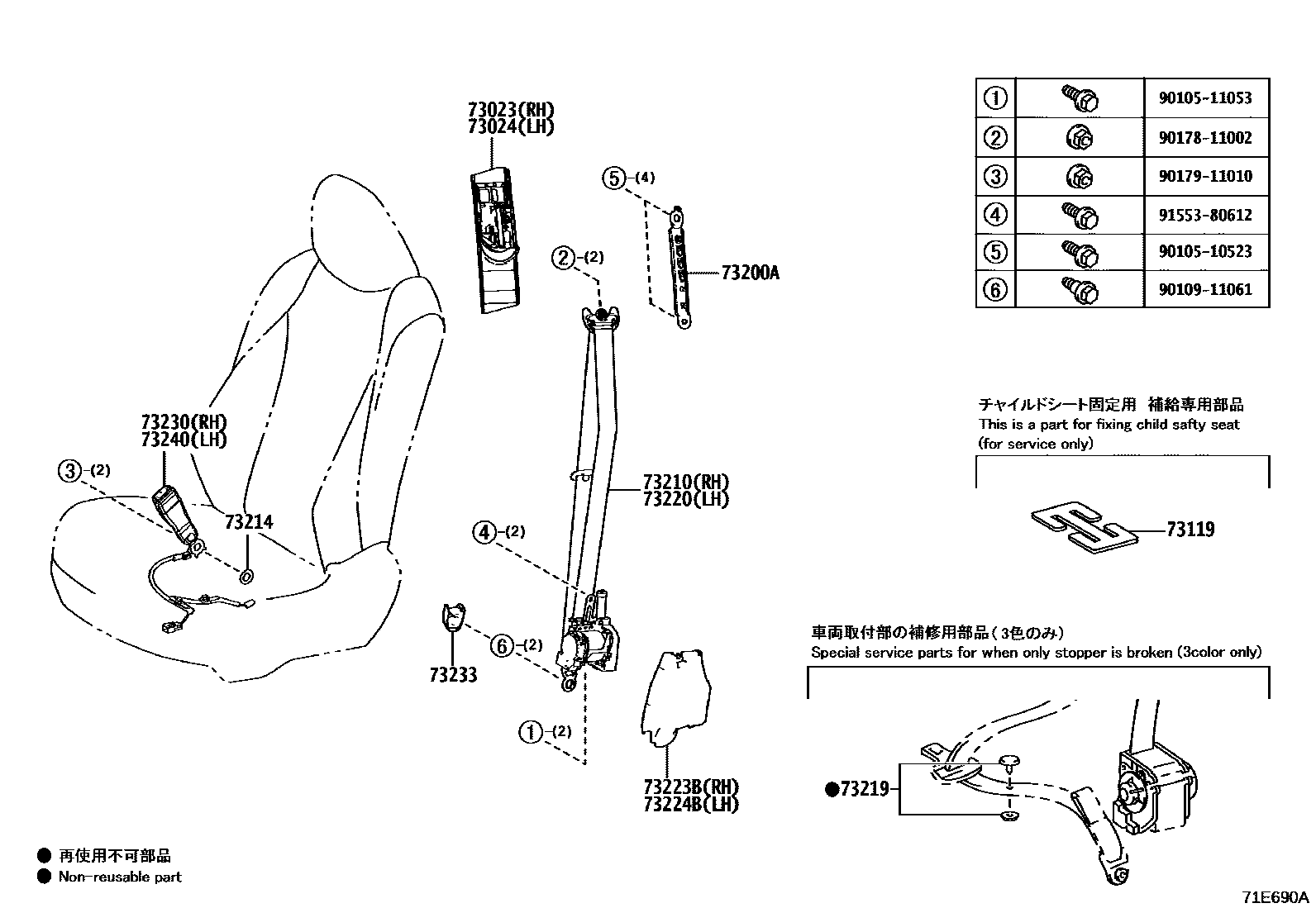

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
BLACK,TRIM0#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
BLACK,TRIM0#,2#
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
73223COVER, SEAT BELT RETRACTOR
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
FROMAGE,TRIM0#
KOREA SPEC&USA MID LUX PACKAGE,FROMAGE,TRIM0#
BLACK,TRIM2#
KOREA SPEC&USA MID LUX PACKAGE,BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
FROMAGE,TRIM0#
KOREA SPEC&USA MID LUX PACKAGE,FROMAGE,TRIM0#
BLACK,TRIM2#
KOREA SPEC&USA MID LUX PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
USA MID LUX PACKAGE,BLACK,TRIM2#
9010510523
9010511053
9010911061
9017811002
9017911010
9155380612
20 parts on this diagram · 2 diagrams in section
