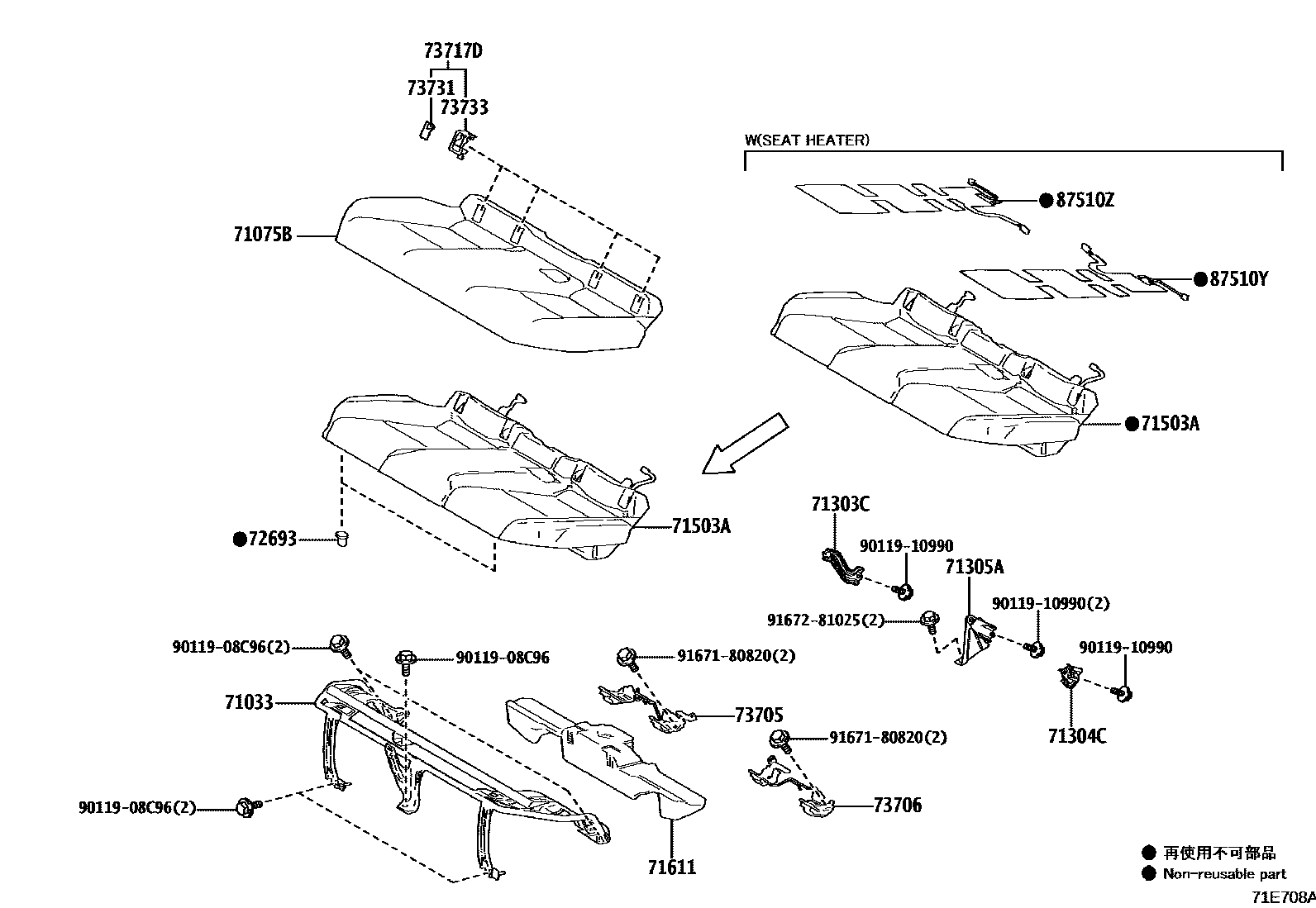

REAR SEAT & SEAT TRACK
71033LEG SUB-ASSY, REAR SEAT CUSHION
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
FROMAGE,TRIM0#
KOREA SPEC&USA MID LUX PACKAGE,FROMAGE,TRIM0#
USA MID LUX PACKAGE,FROMAGE,TRIM0#
KOREA SPEC,FROMAGE,TRIM0#
FROMAGE,TRIM0#
USA MID LUX PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
KOREA SPEC,BLACK,TRIM2#
KOREA SPEC&USA MID LUX PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
KOREA SPEC&USA MID LUX PACKAGE,BLACK,TRIM2#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71503APAD SUB-ASSY, REAR SEAT CUSHION
71611PAD, REAR SEAT CUSHION
72693HOOK, REAR SEAT CUSHION LOCK
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
FROMAGE,TRIM0#
KOREA SPEC&USA MID LUX PACKAGE,FROMAGE,TRIM0#
BLACK,TRIM2#
73731COVER, CHILD RESTRAINT SEAT
FROMAGE,TRIM0#
KOREA SPEC&USA MID LUX PACKAGE,FROMAGE,TRIM0#
BLACK,TRIM2#
73733COVER, CHILD RESTRAINT SEAT BASE
KOREA SPEC&USA MID LUX PACKAGE,FROMAGE,TRIM0#
FROMAGE,TRIM0#
BLACK,TRIM2#
87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
9011908C96
main90119-08C96
9011910990
main90119-10990
9167180820
main91671-80820
9167281025
main91672-81025
19 parts on this diagram · 3 diagrams in section
