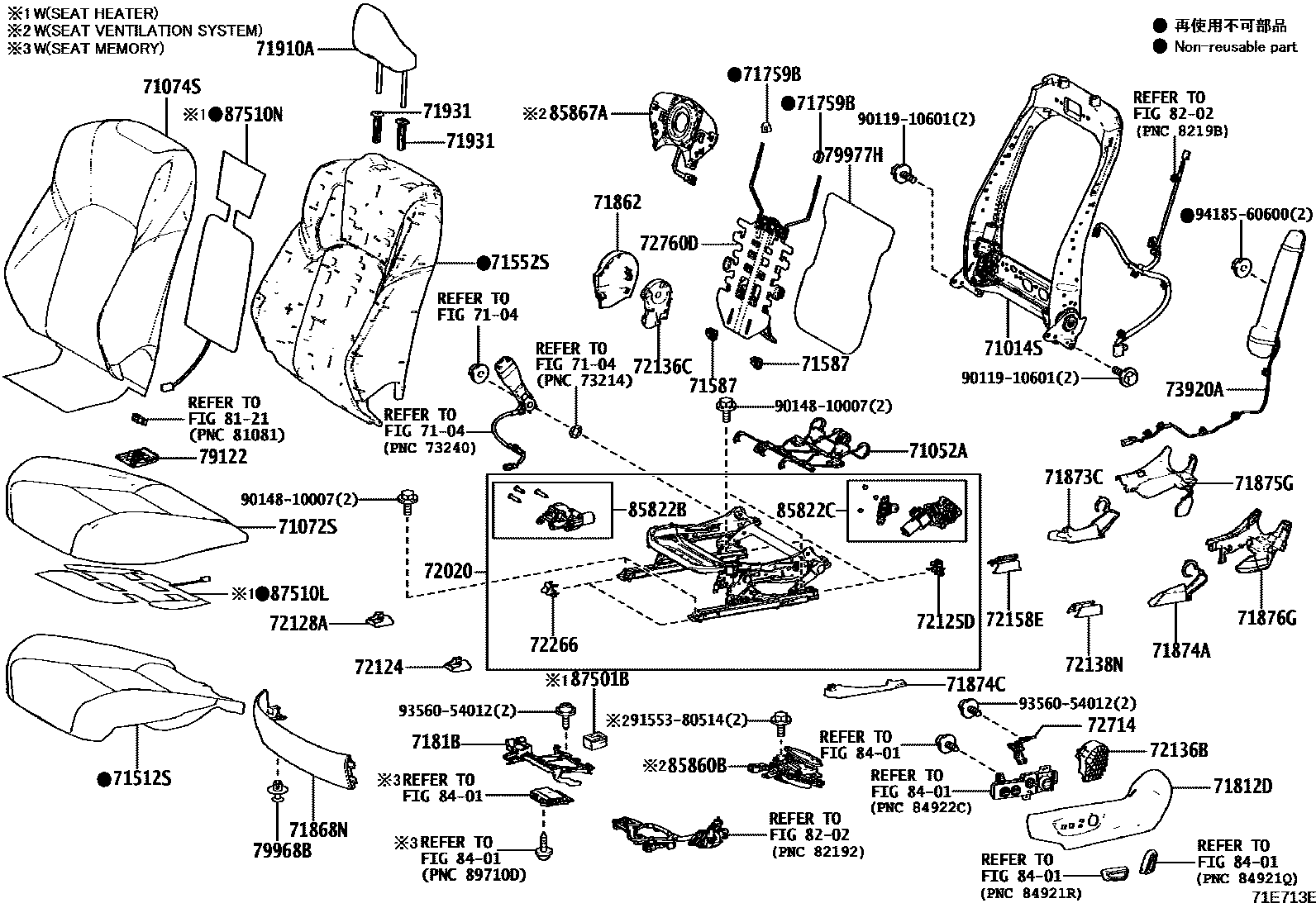

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE 0002 1PASSENGER SIDE

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-62090supersedes 71014-62050iTZSH35202301

USA MID LUX PACKAGE

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090iAZSH35,TZSH35202301

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-30S10-A2iAZSH35202404

FROMAGE,TRIM0#

main71072-30S10-C7supersedes 71072-30S00-C3iAZSH35202301-202310

USA MID LUX PACKAGE,BLACK,TRIM2#

main71072-30S10-C9supersedes 71072-30S00-C4iTZSH35202310

BLACK/LT.GRAY NO.831,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-30U90-A4iAZSH35202404

FROMAGE,TRIM0#

main71074-30U90-C7supersedes 71074-30U50-C3iTZSH35202301-202310

KOREA SPEC&USA MID LUX PACKAGE,BLACK,TRIM2#

main71074-30U90-C9supersedes 71074-30U50-C4iTZSH35202310

BLACK/LT.GRAY NO.831,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-30840supersedes 71512-30830iTZSH35202301

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-30B50supersedes 71552-30B20iTZSH35202301

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×4iAZSH35,TZSH35202301

71759BHOOK, FRONT SEATBACK

main71759-50040×4iAZSH35,TZSH35202301

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-33400-C0iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-33010iAZSH35,TZSH35202301

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-C1iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-47010-C1iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iAZSH35,TZSH35202301

71873CSHIELD, REAR SEAT CUSHION, LOWER RH

main71874-42080iAZSH35,TZSH35202301

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-42090iAZSH35,TZSH35202301

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47070iAZSH35,TZSH35202301

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-47090iAZSH35,TZSH35202301

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-47080-C1iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-30230-C0iAZSH35,TZSH35202301

BLACK,TRIM0#,2#

71910AHEADREST ASSY, FRONT SEAT

main71910-30M00-A3×2iAZSH35202404

FROMAGE,TRIM0#

main71910-30M00-C3×2supersedes 71910-30L90-C3iTZSH35202301-202310

KOREA SPEC&USA MID LUX PACKAGE,BLACK,TRIM2#

main71910-30M00-C4×2supersedes 71910-30L90-C4iAZSH35202310

BLACK/LT.GRAY NO.831,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-A0×2iAZSH35202301

W(LOCK),FROMAGE,TRIM0#

main71930-47050-C5×2iAZSH35,TZSH35202301

W(LOCK),BLACK,TRIM2#

main71931-47030-A0×2iTZSH35202301

W/O(LOCK),KOREA SPEC&USA MID LUX PACKAGE,FROMAGE,TRIM0#

main71931-47030-C4×2iAZSH35,TZSH35202301

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-30710iTZSH35202301

USA MID LUX PACKAGE

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-47060iAZSH35,TZSH35202301

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-47020×2iAZSH35,TZSH35202301

sub72125-47010

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-47060iAZSH35,TZSH35202301

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-33230iAZSH35,TZSH35202301

72136BSPACER, SEAT TRACK, LOWER NO.3

main72136-33290iAZSH35,TZSH35202301

72136CSPACER, SEAT TRACK, LOWER NO.4

main72136-33300iAZSH35,TZSH35202301

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-47060iAZSH35,TZSH35202301

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-47080iAZSH35,TZSH35202301

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47020×2iAZSH35,TZSH35202301

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-47010iAZSH35,TZSH35202301

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33150supersedes 72750-33140iTZSH35202301

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-12090iAZSH35,TZSH35202301

79122BRACKET, FRONT SEAT CUSHION, LH

main79122-30010iTZSH35202301

79968BCLIP

main90467-07215×2iAZSH35,TZSH35202301

79977HFELT, FRONT SEATBACK, LH

main79977-33030iAZSH35,TZSH35202301

8121

8202

8401

85822BMOTOR ASSY, POWER SEAT TILT, LH

main85801-11040iTZSH35202301

USA MID LUX PACKAGE

85822CMOTOR ASSY, POWER SEAT LIFTER, LH

main85801-11050iTZSH35202301

USA MID LUX PACKAGE

85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

main85802-42020iTZSH35202301

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-30040iTZSH35202301

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-33010iAZSH35,TZSH35202301

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-30610iAZSH35,TZSH35202301

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-30350iAZSH35,TZSH35202301

9011910601

main90119-10601

9014810007

main90148-10007

9155380514

main91553-80514

9356054012

main93560-54012

9418560600

main94185-60600

53 parts on this diagram · 2 diagrams in section
