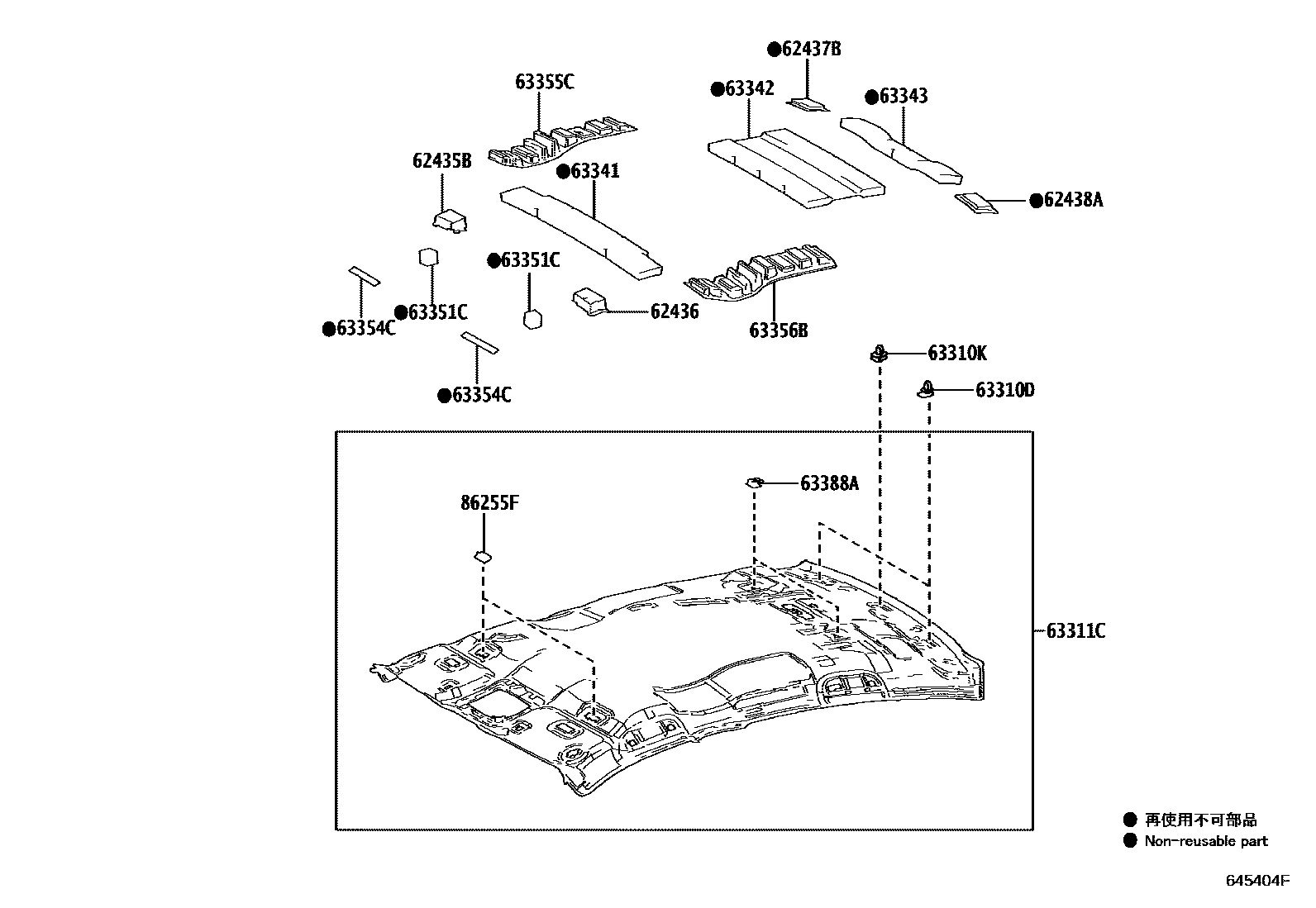

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1PANORAMA ROOF

62435BPAD, ROOF SIDE RAIL, FRONT RH

main62435-30100iAZSH35202301

62436PAD, ROOF SIDE RAIL, FRONT LH

main62436-30100iAZSH35202301

62437BPAD, ROOF SIDE RAIL, REAR RH

main62437-30040iAZSH35,TZSH35202301

62438APAD, ROOF SIDE RAIL, REAR LH

main62438-30040iAZSH35,TZSH35202301

63310DCLIP, ROOF HEADLINING

main90467-09126iAZSH35,TZSH35202301

63310KCLIP

main90467-10181iAZSH35,TZSH35202301

63311CHEADLINING, ROOF

main63311-30K30-A0iAZSH35202301

FROMAGE,TRIM0#

main63311-30K30-C0iAZSH35202301

BLACK,TRIM2#

main63311-30K70-A0iTZSH35202301

FROMAGE,TRIM0#

main63311-30K70-A0iTZSH35202301

USA MID LUX PACKAGE,FROMAGE,TRIM0#

main63311-30K70-C0iTZSH35202301

BLACK,TRIM2#

main63311-30K70-C0iTZSH35202301

USA MID LUX PACKAGE,BLACK,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-30390iAZSH35202301

63342PAD, ROOF SILENCER, NO.2

main63341-30410iAZSH35202301

63343PAD, ROOF SILENCER, NO.3

main63341-30440iAZSH35202301

63351CPAD, ROOF HEADLINING

main63351-30290iAZSH35202301

63354CPAD, ROOF HEADLINING FRONT SIDE

main63354-30060iAZSH35,TZSH35202301

63355CPAD, ROOF HEADLINING, RH

main63355-30030iAZSH35202301

63356BPAD, ROOF HEADLINING, LH

main63356-30020iAZSH35202301

63388ACOVER, ROOF HEADLINING HOLDER

main63388-30050-A0iAZSH35,TZSH35202301

FROMAGE,TRIM0#

main63388-30050-C0iAZSH35,TZSH35202301

BLACK,TRIM2#

86255FCASE, MICROPHONE

main86255-78020-A1iAZSH35,TZSH35202301

FROMAGE,TRIM0#

main86255-78020-C0iAZSH35,TZSH35202301

BLACK,TRIM2#

16 parts on this diagram · 2 diagrams in section
