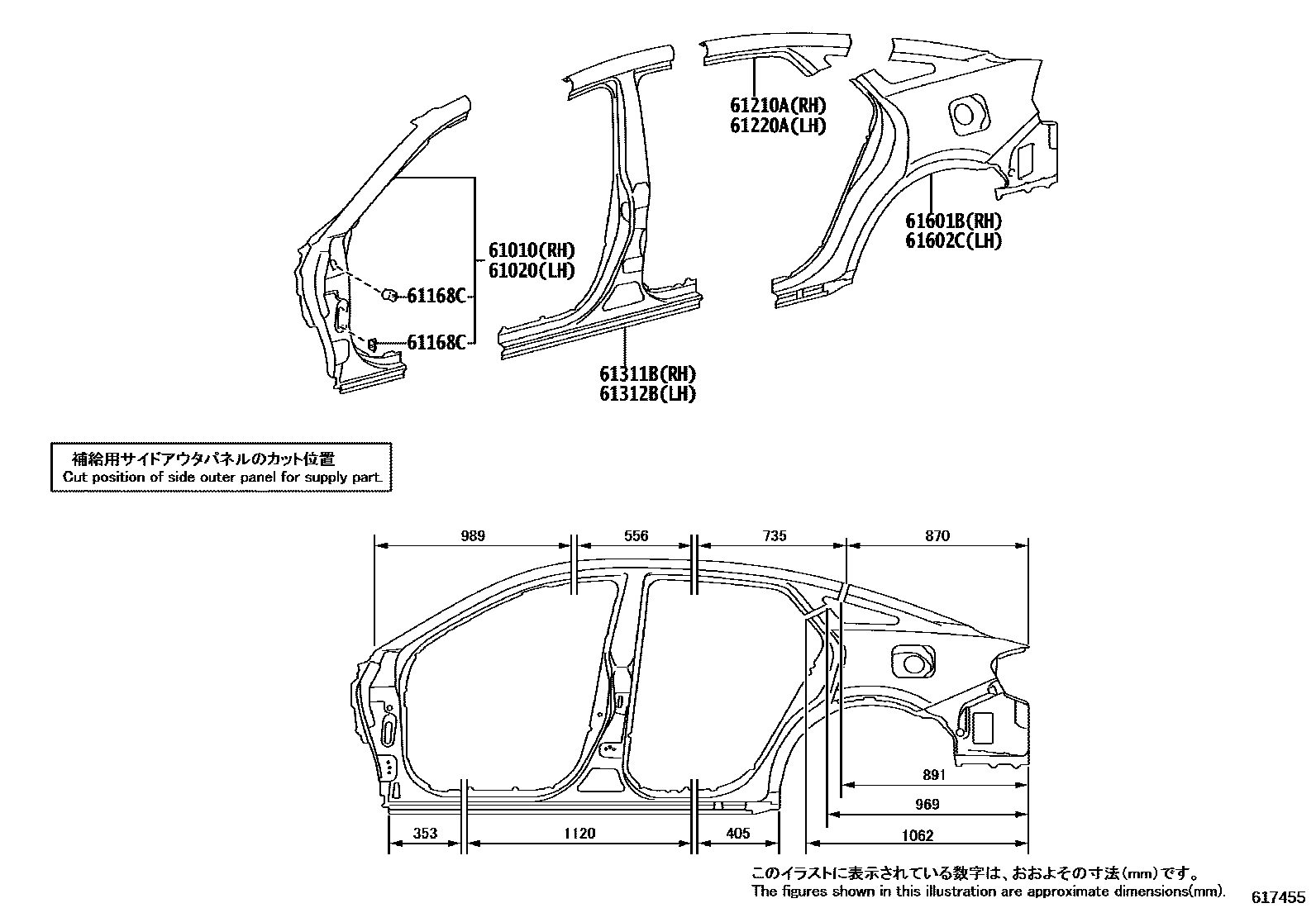

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61010MEMBER ASSY, SIDE, RH

main61010-30020iAZSH35,TZSH35202301

61020MEMBER ASSY, SIDE, LH

main61020-30020iAZSH35,TZSH35202301

61168CBRACKET, NO.6 PILLAR OUTER

main61168-44010iAZSH35,TZSH35202301

61210ARAIL ASSY, ROOF SIDE, RH

main61210-30010iAZSH35,TZSH35202301

61220ARAIL ASSY, ROOF SIDE, LH

main61220-30010iAZSH35,TZSH35202301

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30330iAZSH35,TZSH35202301

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30430iAZSH35,TZSH35202301

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-30A30iAZSH35,TZSH35202301

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-30A20iAZSH35,TZSH35202301

9 parts on this diagram · 3 diagrams in section
