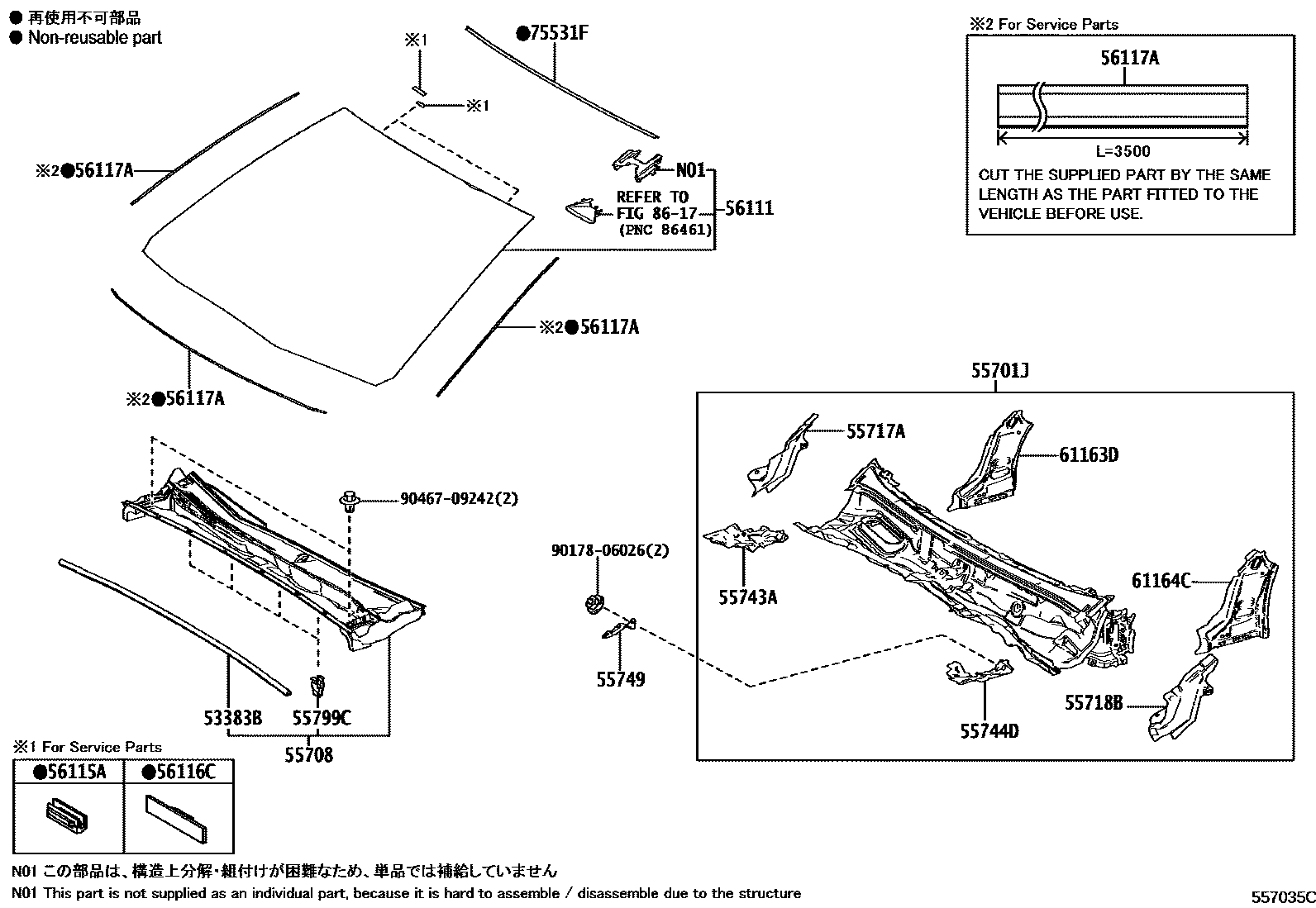

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-30290iAZSH35,TZSH35202301

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-30370iAZSH35,TZSH35202301

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30280iAZSH35,TZSH35202301

55717APANEL, COWL TOP SIDE, INNER RH

main55717-30120iAZSH35,TZSH35202301

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-30140iAZSH35,TZSH35202301

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-30140iAZSH35,TZSH35202301

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-30150iAZSH35,TZSH35202301

55749BRACE, COWL TOP TO PILLAR, LH

main55749-30080iAZSH35,TZSH35202301

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09241iAZSH35,TZSH35202301

56111GLASS, WINDSHIELD

main56101-3F926iAZSH35202301

main56101-3F931iTZSH35202301-202404

main56101-3F951iTZSH35202404

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110iAZSH35,TZSH35202301

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAZSH35,TZSH35202301

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAZSH35,TZSH35202301

*D,L=1327 OR 698

main56117-64010iAZSH35,TZSH35202301

*D,L=1327 OR 698,USA MID LUX PACKAGE

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-30100iAZSH35,TZSH35202301

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-30100iAZSH35,TZSH35202301

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-30410iAZSH35,TZSH35202301

8617

9017806026

main90178-06026

9046709242

main90467-09242

19 parts on this diagram · 1 diagram in section
