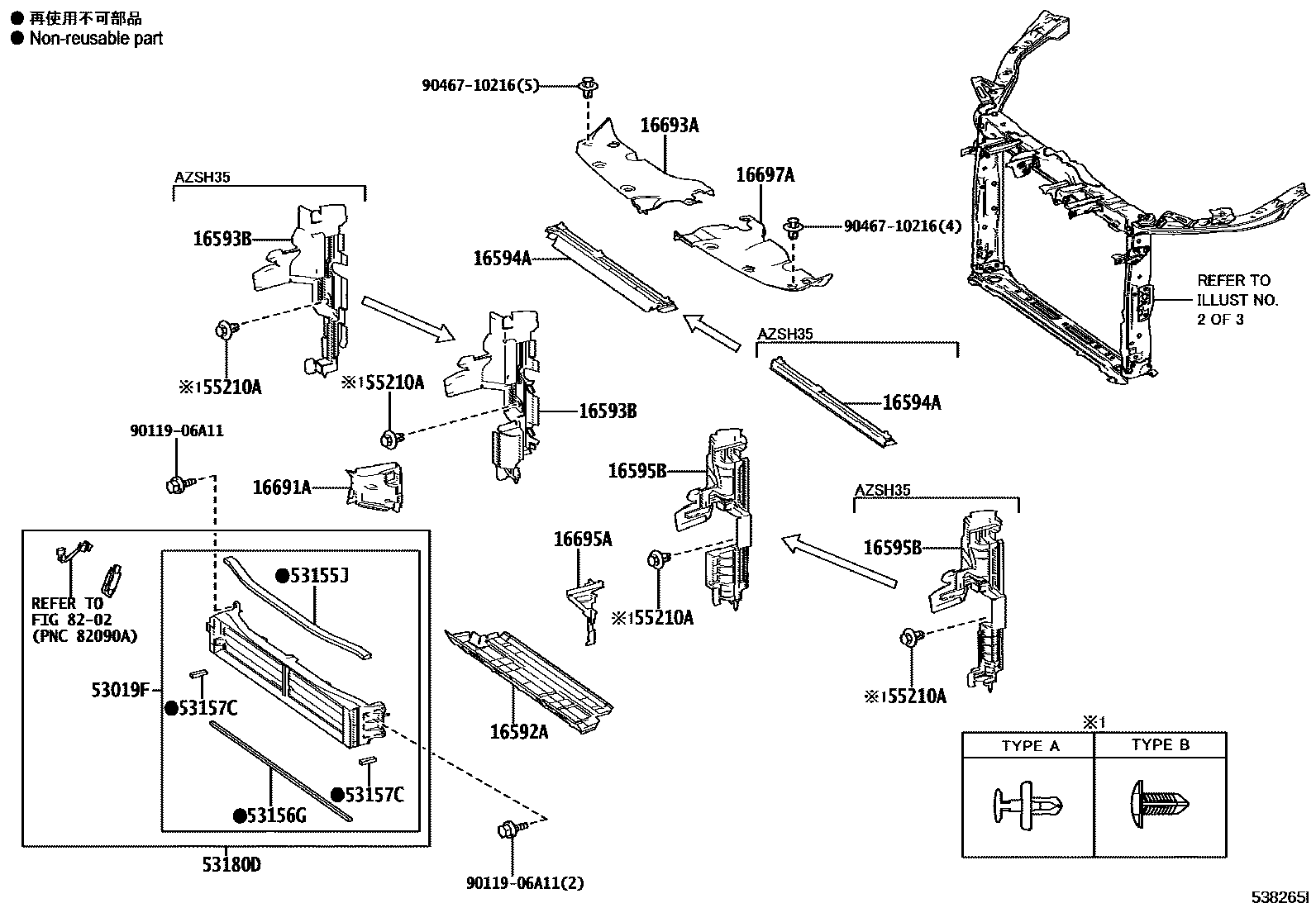

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25060iA25AFXS,T24AFTS..AZSH35,TZSH35202301

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25300iA25AFXS..AZSH35202301

main16593-25310iT24AFTS..TZSH35202301

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iT24AFTS..TZSH35202301-202501

main16594-25040iA25AFXS..AZSH35202301

main16594-25050iT24AFTS..TZSH35202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25290iA25AFXS..AZSH35202301

main16595-25300iT24AFTS..TZSH35202301

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25160iA25AFXS,T24AFTS..AZSH35,TZSH35202301

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-25030iA25AFXS,T24AFTS..AZSH35,TZSH35202301

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25160iA25AFXS,T24AFTS..AZSH35,TZSH35202301

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-25030iA25AFXS,T24AFTS..AZSH35,TZSH35202301

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33020iAZSH35202301

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33120iAZSH35202301

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010iAZSH35202301

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010×2iAZSH35202301

53180DSHUTTER ASSY, RADIATOR

main53180-33090iAZSH35202301-202303

main53180-33091iAZSH35202304-202311

main53180-33092iAZSH35202312

55210INSULATOR ASSY, DASH PANEL

main55210-30560iAZSH35,TZSH35202301-202405

main55210-30561iAZSH35,TZSH35202406

55210ACLIP

main90467-07220×2iAZSH35,TZSH35202301

TYPE A:REFER ILLUST.

main90467-08186-C3×2iAZSH35,TZSH35202301

BLACK,TYPE B:REFER ILLUST.

8202

9011906A11

main90119-06A11

9046710216

main90467-10216

18 parts on this diagram · 3 diagrams in section
