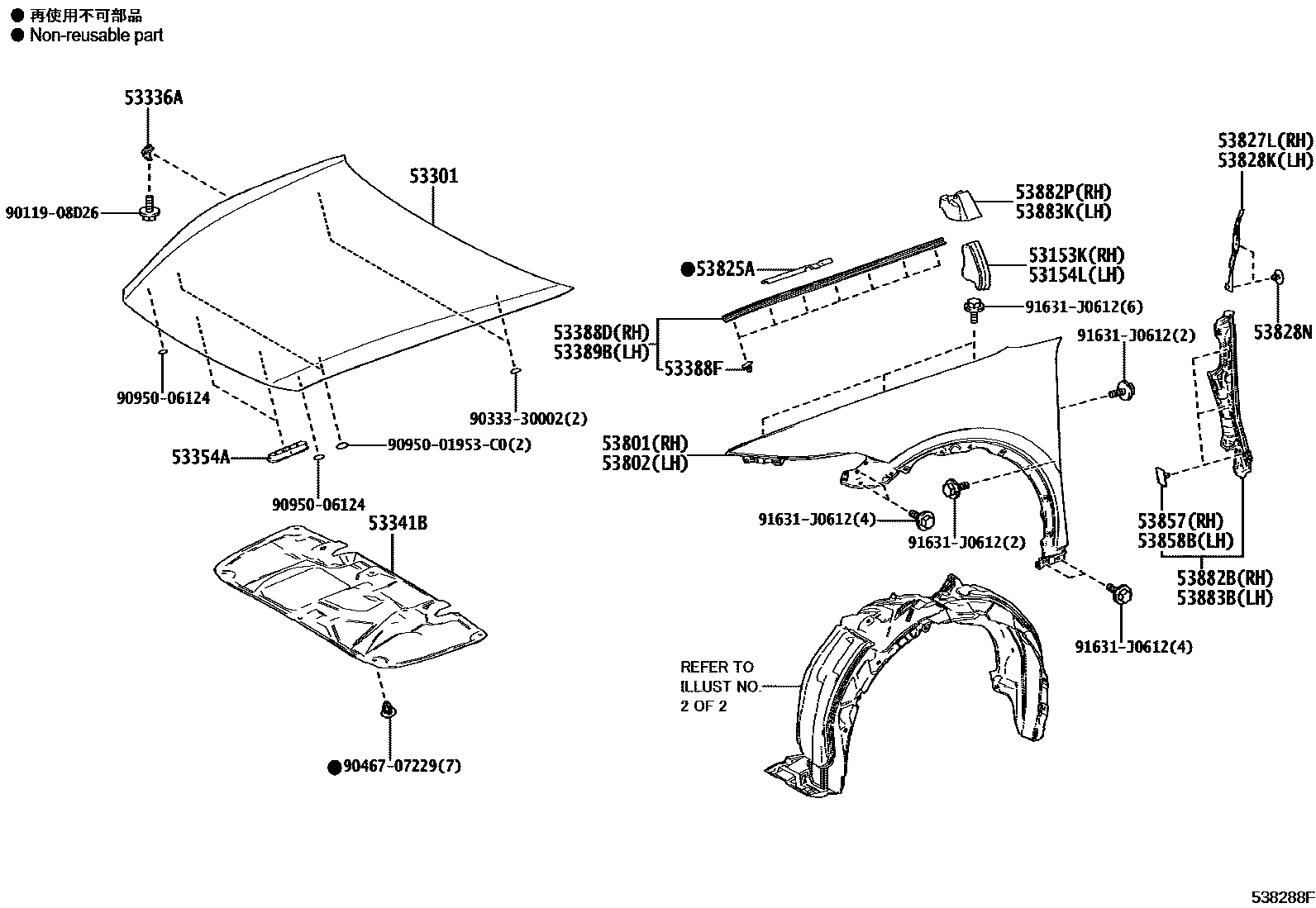

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30350iAZSH35,TZSH35202301

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30340iAZSH35,TZSH35202301

53301HOOD SUB-ASSY

main53301-30550iAZSH35,TZSH35202301

main53301-30560iAZSH35,TZSH35202301-202310

53336ABRACKET, HOOD STAY

main53336-42010iAZSH35,TZSH35202301

53341BINSULATOR, HOOD

main53341-30380iAZSH35202301

main53341-30390iTZSH35202301

53354APLATE, HOOD, CENTER

main53354-30010iAZSH35,TZSH35202301

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30120iAZSH35,TZSH35202301

53388FRETAINER, HOOD TO FRONT FENDER SEAL

main67867-12150iAZSH35,TZSH35202301

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-30110iAZSH35,TZSH35202301

53801FENDER SUB-ASSY, FRONT RH

main53801-30A90iAZSH35,TZSH35202301

main53801-30B00iAZSH35,TZSH35202301-202310

53802FENDER SUB-ASSY, FRONT LH

main53802-30A80iAZSH35,TZSH35202301

main53802-30A90iAZSH35,TZSH35202301-202310

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-30250iAZSH35,TZSH35202301

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30090iAZSH35,TZSH35202301

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30110iAZSH35,TZSH35202301

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iAZSH35,TZSH35202301

BLACK

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAZSH35,TZSH35202301

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAZSH35,TZSH35202301

53882BSEAL, FRONT FENDER, RH

main53882-30110iAZSH35,TZSH35202301

53882PSEAL, FRONT FENDER, RH

main53155-30130iAZSH35,TZSH35202301

53883BSEAL, FRONT FENDER, LH

main53883-30080iAZSH35,TZSH35202301

53883KSEAL, FRONT FENDER, LH

main53156-30040iAZSH35,TZSH35202301

9011908D26

main90119-08D26

9033330002

main90333-30002

9046707229

main90467-07229

9095001953C0

main90950-01953C0

9095006124

main90950-06124

91631J0612

main91631-J0612

27 parts on this diagram · 2 diagrams in section
