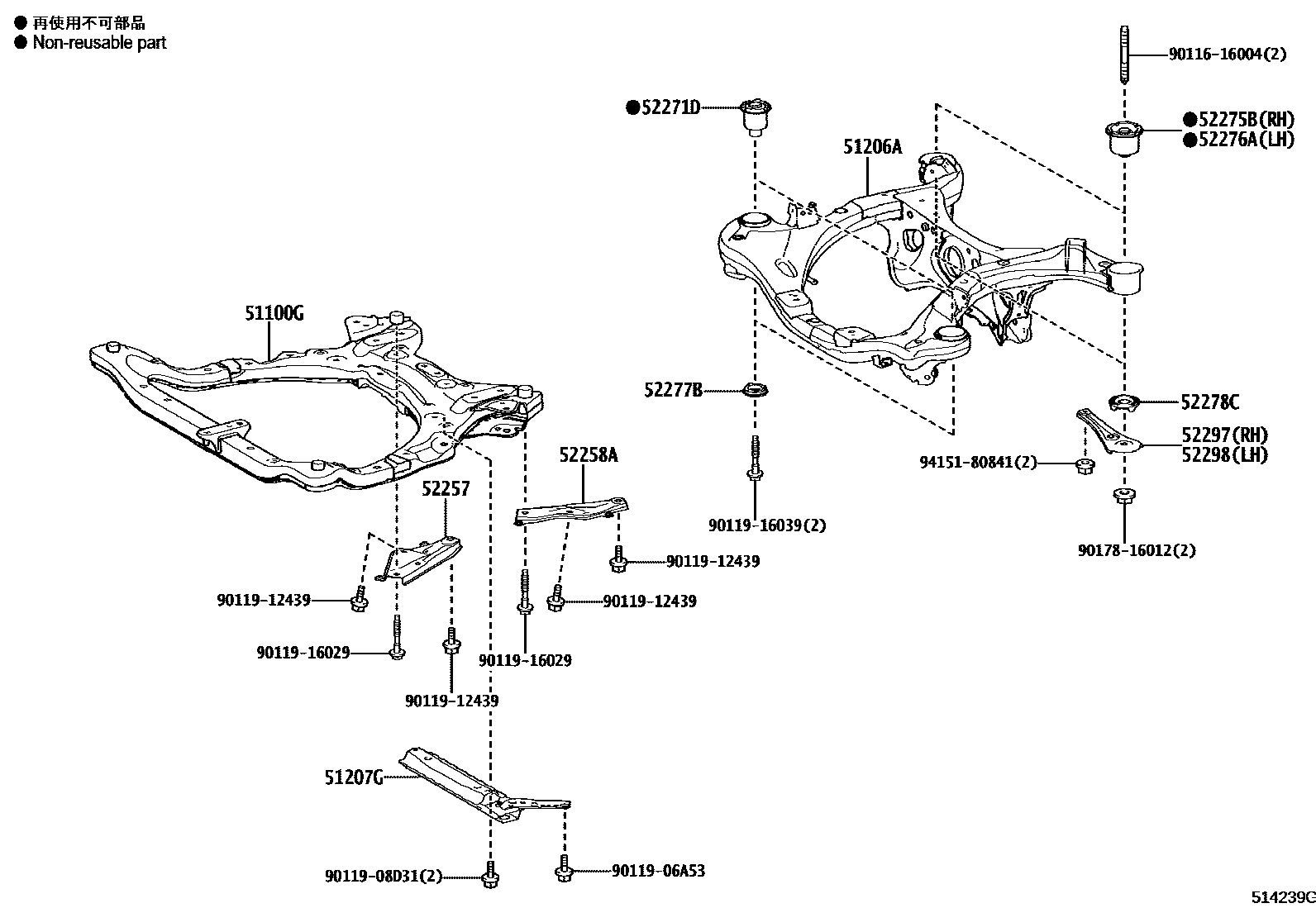

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-42051iAZSH35,TZSH35202301

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30190iTZSH35202404

main51206-30200iAZSH35202301

main51206-30210iTZSH35202301-202404

51207GBRACKET SUB-ASSY, STRUT BAR

main51207-30110iAZSH35202301

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42020iAZSH35,TZSH35202301

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iAZSH35,TZSH35202301

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-48040iTZSH35202301

main52271-48050iAZSH35202301

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-48030iAZSH35,TZSH35202301

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-48020iAZSH35,TZSH35202301

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-48030iTZSH35202301

main52277-48040iAZSH35202301

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-48020iAZSH35,TZSH35202301

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-30060iAZSH35,TZSH35202301

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52297-30060iAZSH35,TZSH35202301

9011616004

main90116-16004

9011906A53

main90119-06A53

9011908D31

main90119-08D31

9011912439

main90119-12439

9011916029

main90119-16029

9011916039

main90119-16039

9017816012

main90178-16012

9415180841

main94151-80841

20 parts on this diagram · 3 diagrams in section
