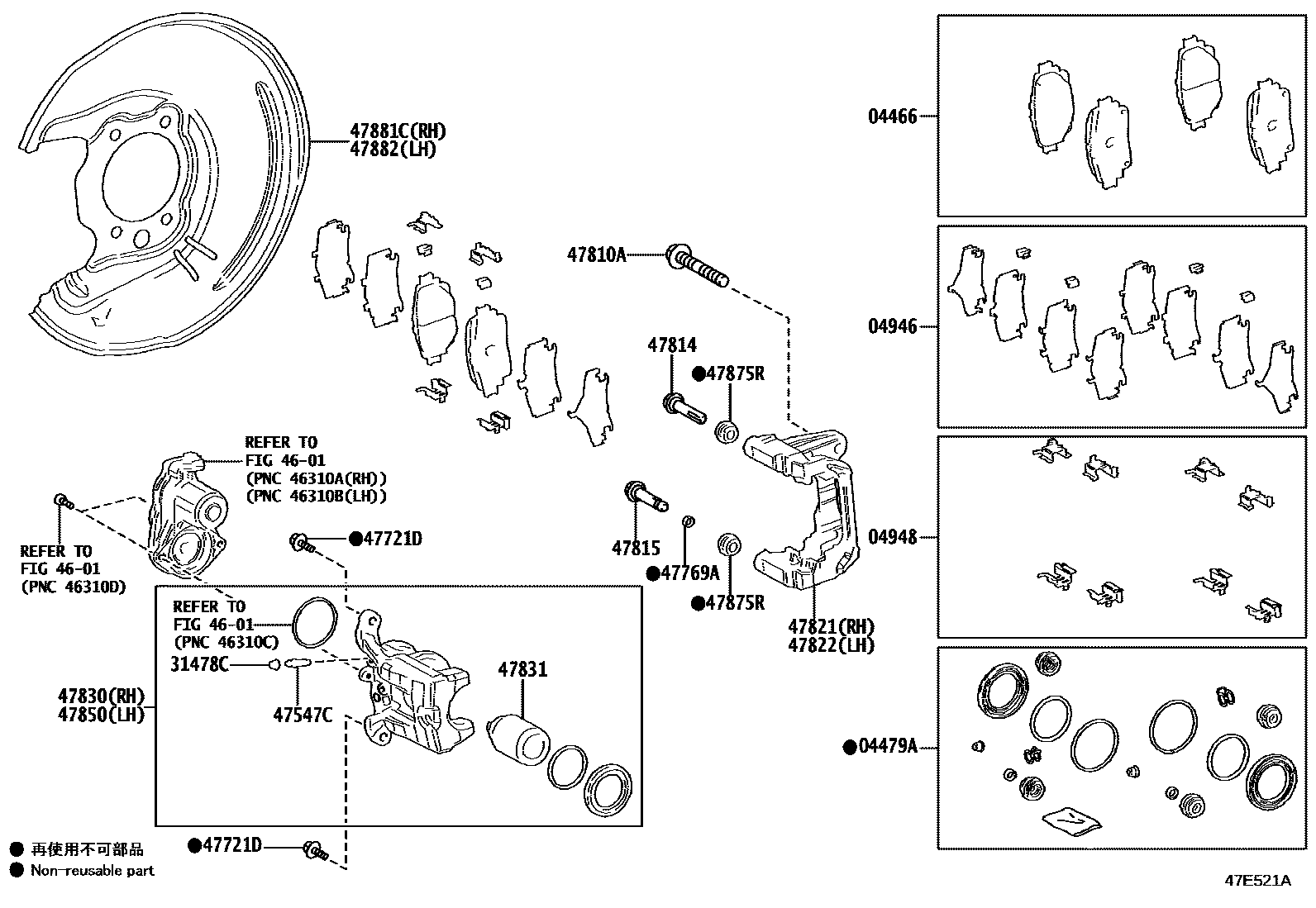

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iAZSH35,TZSH35202401

MARK NBK D6363-FF N

main04466-F4020iAZSH35,TZSH35202301-202401

MARK NBK D6361

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42110iAZSH35,TZSH35202301

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280iAZSH35,TZSH35202301

04948FITTING KIT, DISC BRAKE, REAR

main04948-12071iAZSH35,TZSH35202301-202401

main04948-V2010iAZSH35,TZSH35202401

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAZSH35,TZSH35202301

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAZSH35,TZSH35202301

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAZSH35,TZSH35202301

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAZSH35,TZSH35202301

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12426iAZSH35,TZSH35202301

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAZSH35,TZSH35202301

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAZSH35,TZSH35202301

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42100iAZSH35,TZSH35202301

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42090iAZSH35,TZSH35202301

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47850-42090iAZSH35,TZSH35202301

47831PISTON, REAR DISC BRAKE

main47831-58040iAZSH35,TZSH35202301

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47830-42100iAZSH35,TZSH35202301

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAZSH35,TZSH35202301

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-48020iAZSH35,TZSH35202301

47882COVER, DISC BRAKE DUST, REAR LH

main47882-48020iAZSH35,TZSH35202301

20 parts on this diagram · 1 diagram in section
