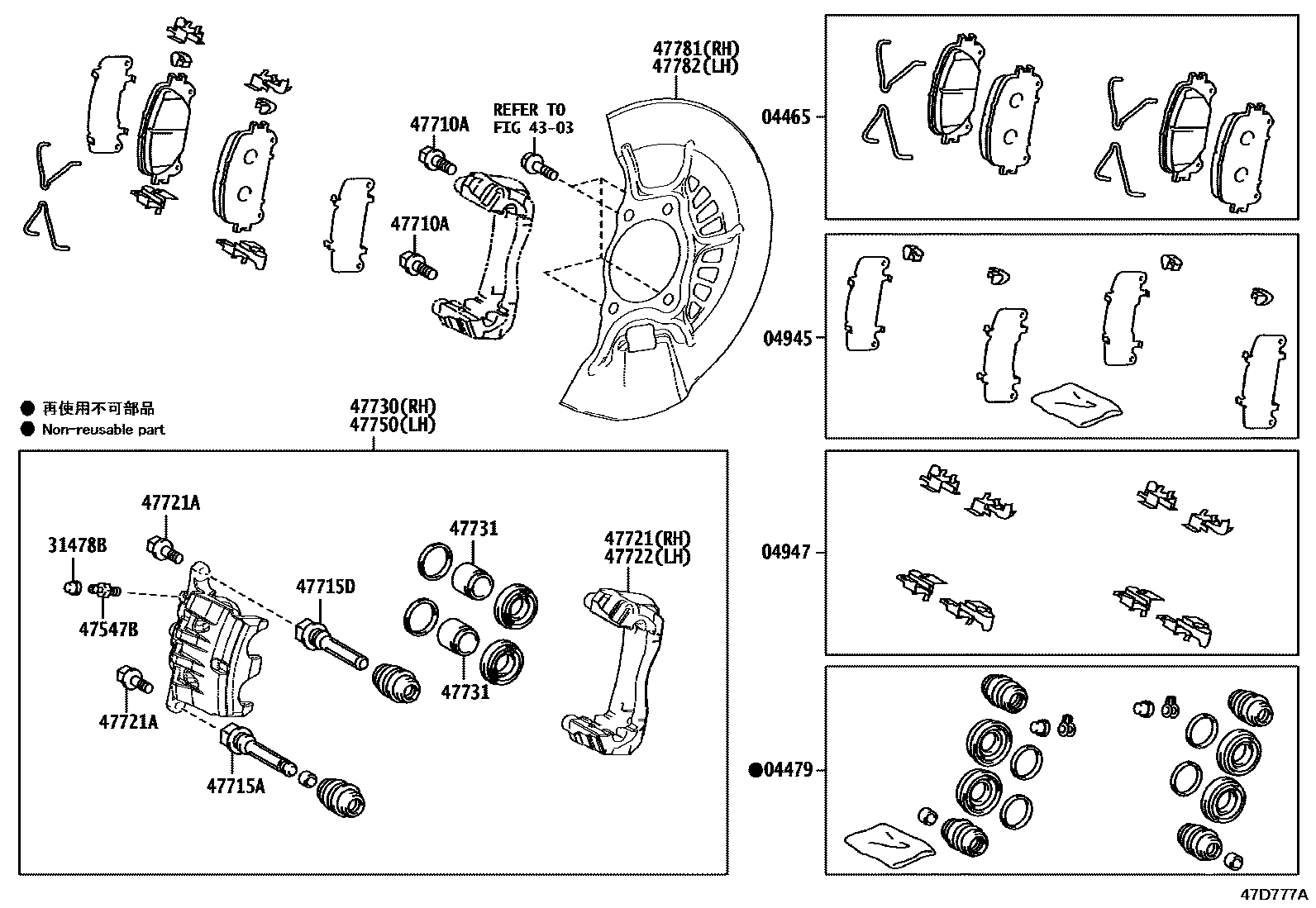

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-78010iAZSH35202301

MARK ADVICS VC084H

main04465-78020iTZSH35202301

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-42030iTZSH35202301

main04478-48200iAZSH35202301

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAZSH35202301

main04945-48190iTZSH35202301

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAZSH35,TZSH35202301

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAZSH35,TZSH35202301

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAZSH35,TZSH35202301

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401iAZSH35,TZSH35202301

*12-1.25PX35.5-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iAZSH35,TZSH35202301

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iAZSH35,TZSH35202301

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42130iTZSH35202301

main47721-48150iAZSH35202301

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAZSH35,TZSH35202301

*8-1.00PX23-12.5

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42130iTZSH35202301

main47722-48140iAZSH35202301

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42130iTZSH35202301

main47730-48150iAZSH35202301

47731PISTON, FRONT DISC BRAKE

main47731-48150iAZSH35,TZSH35202301

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42130iTZSH35202301

main47750-48110iAZSH35202301

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAZSH35,TZSH35202301

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAZSH35,TZSH35202301

18 parts on this diagram · 2 diagrams in section
