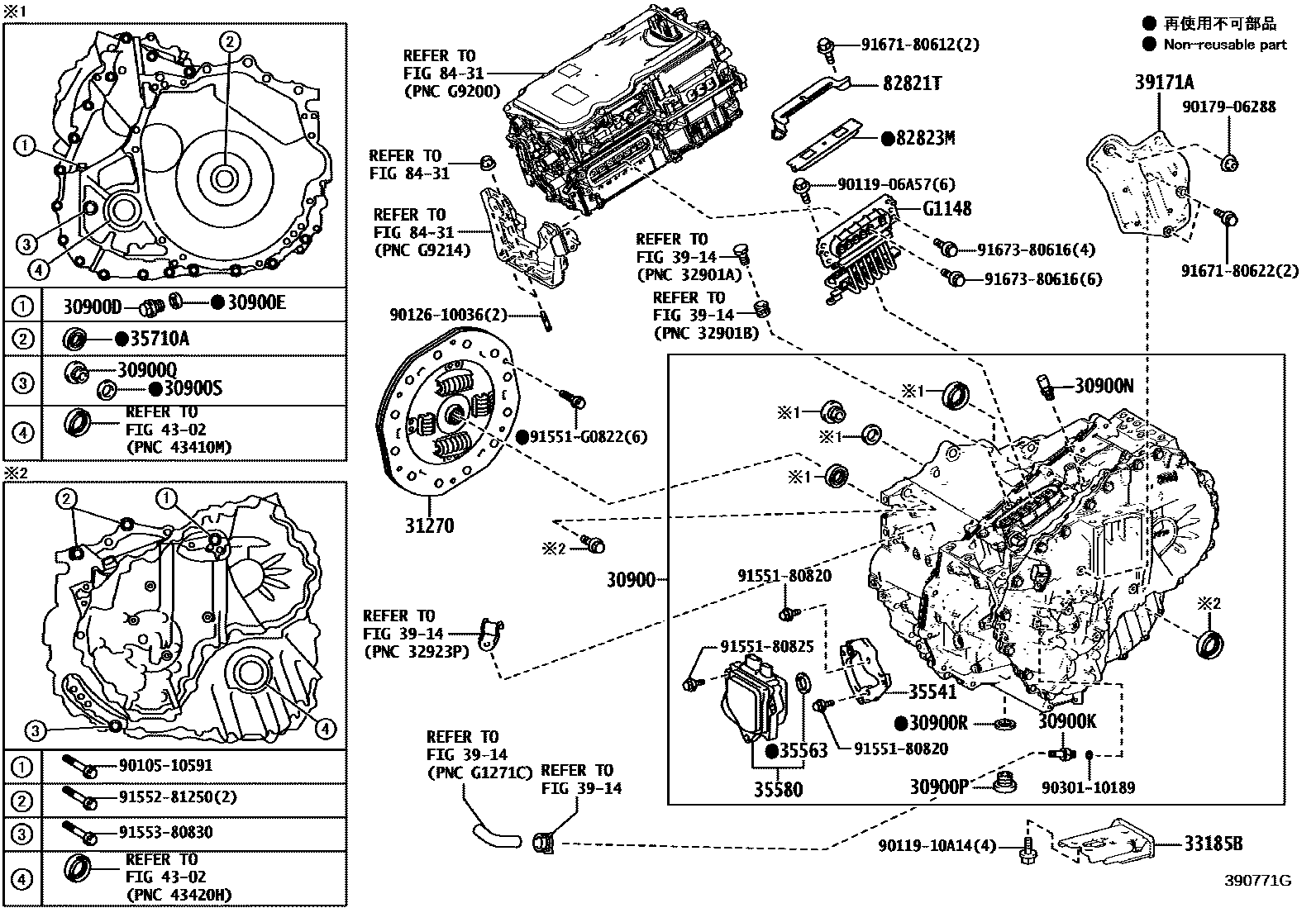

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1TRANSAXLE ASSY,W(MOTOR & INVE0003 1TRANSAXLE ASSY,W(MOTOR) 0004 1REAR TRACTION MOTOR 0005 1REAR AXLE

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-30010iAZSH35¥355,000202301-202411

W/O(LABEL)

sub30970-30010¥355,000

main30970-30010iAZSH35¥355,000202411-202508

W(LABEL)

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAZSH35¥240202301

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAZSH35¥110202301

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAZSH35¥310202301

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iAZSH35¥120202301

30900PPLUG, DRAIN(HEV)

main90341-18016iAZSH35¥190202301

30900QPLUG, FILLER(HEV)

main35150-44010iTZSH35¥340202301

main90341-18016iAZSH35¥190202301

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAZSH35¥110202301

30900SGASKET, FILLER PLUG(HEV)

main90301-09173iTZSH35¥140202301

main90430-18008iAZSH35¥110202301

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-30020iAZSH35¥31,400202301

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-42020iAZSH35¥2,570202301

35541BRACKET, SHIFT CONTROL ACTUATOR

main35541-30030iTZSH35¥5,400202301

main35541-78010iAZSH35¥2,880202301

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-52010iAZSH35¥40202301

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-48011iTZSH35¥53,800202301

main35580-52011iAZSH35¥53,800202301

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-27011iAZSH35¥290202301

3914

39171ACOVER, TRANSAXLE

main58261-30290iAZSH35¥1,720202301

4302

82821TCOVER, CONNECTOR

main82821-47240iAZSH35¥1,740202301

82823MCAP, TERMINAL

main82823-47040iAZSH35¥700202301

8431

G1148CABLE, MOTOR

mainG114833050iAZSH35202301

9010510591

main90105-10591¥120

9011906A57

main90119-06A57¥60

9011910A14

main90119-10A14¥120

9012610036

main90126-10036¥100

9017906288

main90179-06288¥70

9030110189

main90301-10189¥170

9155180820

main91551-80820¥80

9155180825

main91551-80825¥80

91551G0822

main91551-G0822¥80

9155281250

main91552-81250¥190

9155380830

main91553-80830¥80

9167180612

main91671-80612¥60

9167180622

main91671-80622¥90

9167380616

main91673-80616¥60

36 parts on this diagram · 5 diagrams in section
