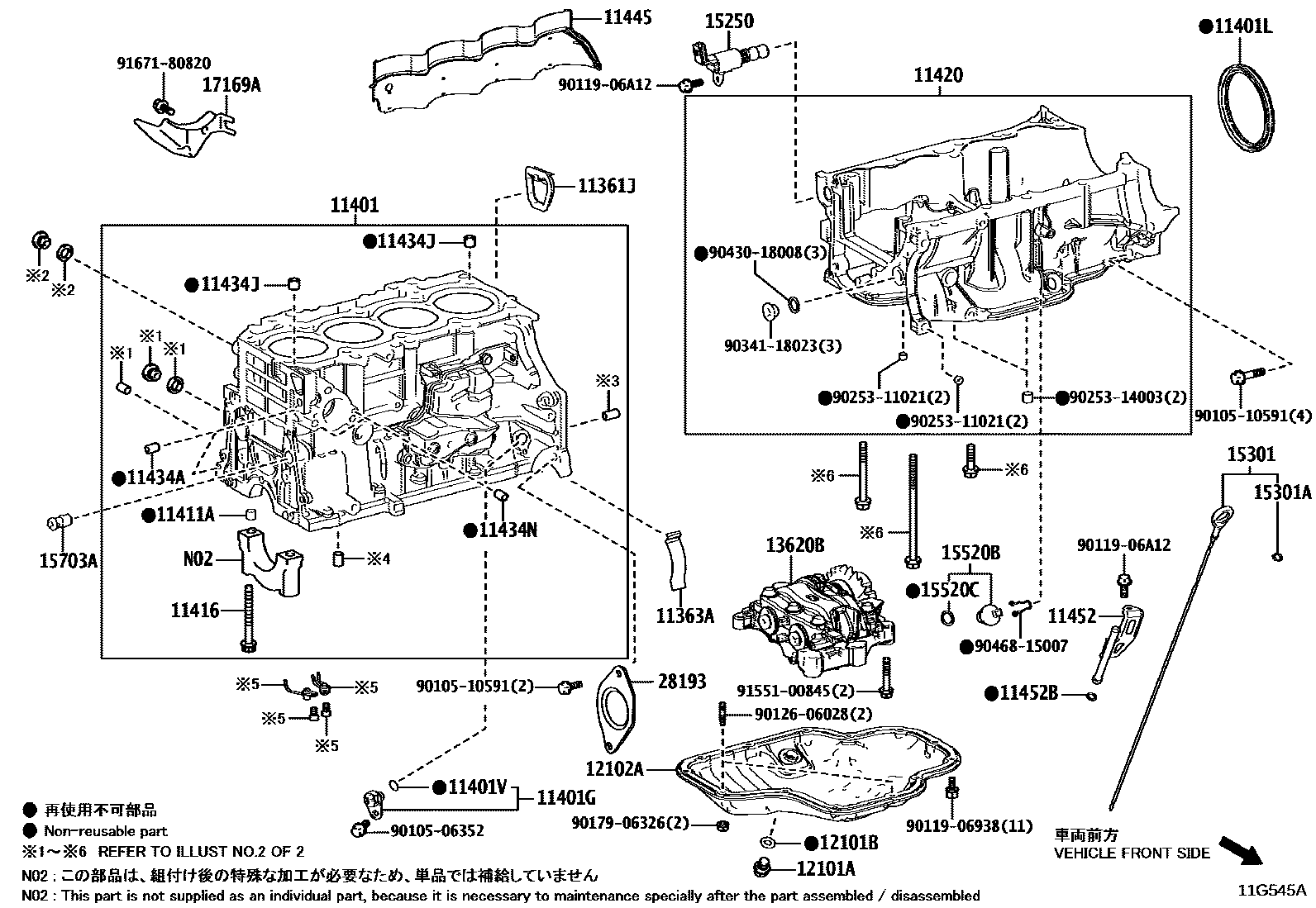

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
11401VO-RING, CRANK POSITION SENSOR
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
NO.1
NO.2
NO.3
11420CRANKCASE ASSY, STIFFENING
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
13620BBALANCER ASSY, ENGINE
15250VALVE ASSY, OIL PRESSURE CONTROL
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15520BCAP ASSY, CRANKCASE
15520CRING, O (FOR CRANKCASE CAP)
15703AVALVE SUB-ASSY, OIL NOZZLE
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
28193INSULATOR, STARTER HOLE
9010506352
main90105-06352
9010510591
main90105-10591
9011906938
main90119-06938
9011906A12
main90119-06A12
9012606028
main90126-06028
9017906326
main90179-06326
9025311021
main90253-11021
9025314003
main90253-14003
9034118023
main90341-18023
9043018008
main90430-18008
9046815007
main90468-15007
9155100845
main91551-00845
9167180820
main91671-80820
40 parts on this diagram · 4 diagrams in section
