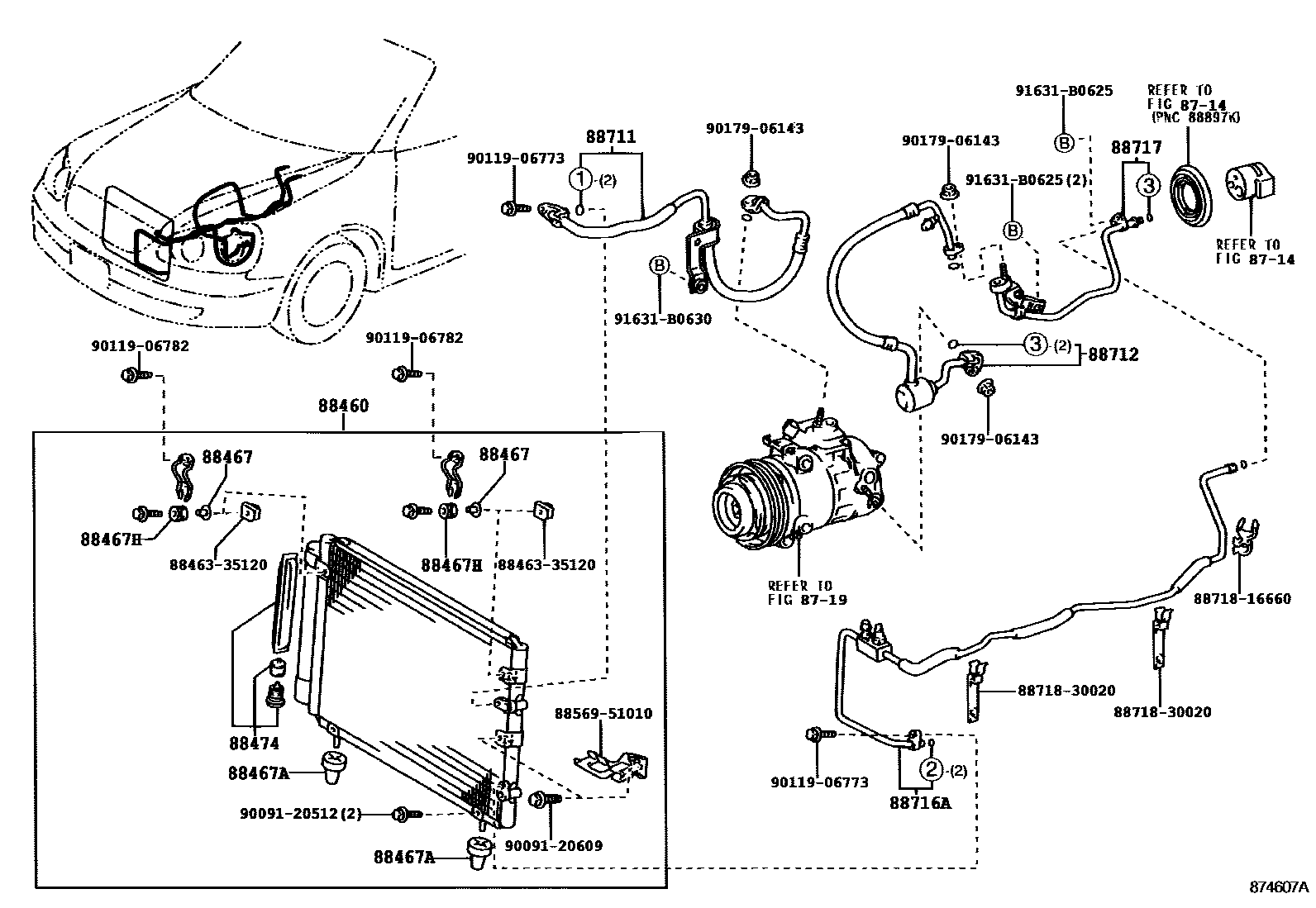

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-24090iUZZ40..5FC200101-200103

sub88460-24091

main88460-24091iUZZ40200103-200508

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14050iUZZ40200101-200508

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-20190iUZZ40200101-200508

88467HCUSHION, CONDENSER BRACKET, NO.1

main88467-24060iUZZ40200101-200508

88474DRYER, COOLER

main88474-47010iUZZ40200101-200508

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-24030iUZZ40200101-200508

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-24210iUZZ40200101-200508

sub88712-24211

main88712-24211iUZZ40200508

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-24130iUZZ40200101-200508

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88707-24020iUZZ40200101-200508

8846335120BRACKET, COOLER CONDENSER, NO.1

main88463-35120

8856951010CLAMP (FOR COOLER RELAY)

main88569-51010

8871816660PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16660

8871830020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30020

9009120512

main90091-20512

9009120609

main90091-20609

9011906773

main90119-06773

9011906782

main90119-06782

9017906143

main90179-06143

91631B0625

main91631-B0625

91631B0630

main91631-B0630

22 parts on this diagram · 2 diagrams in section
