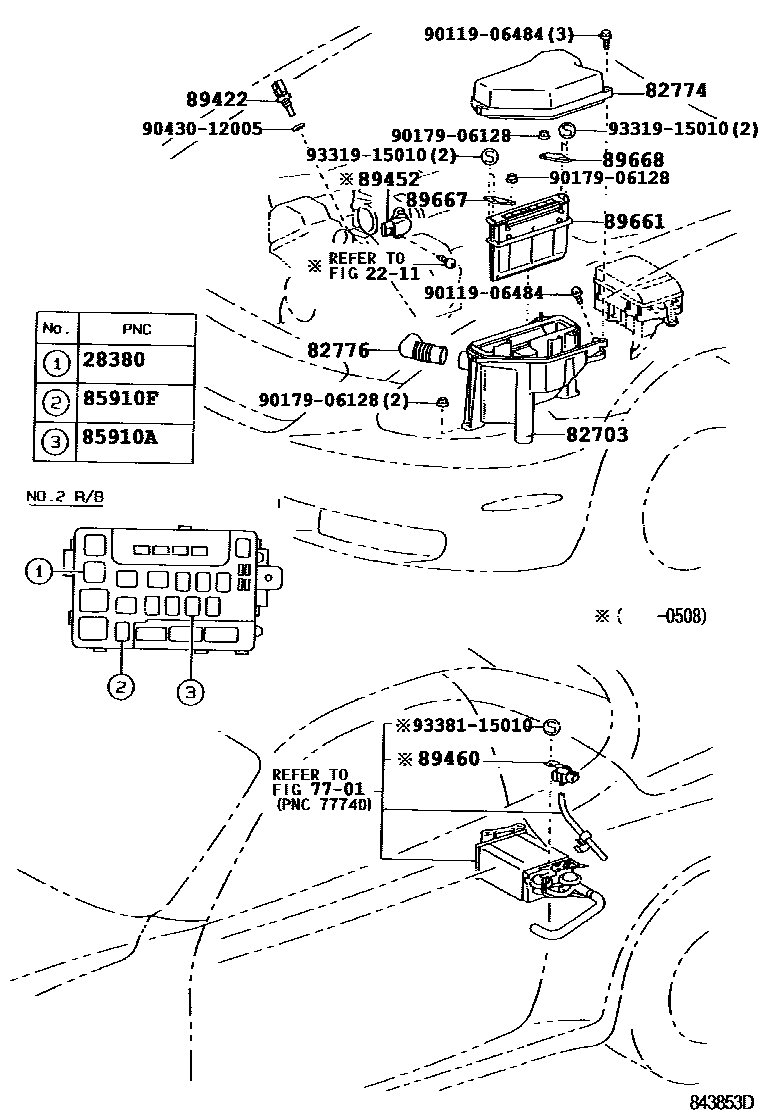

ELECTRONIC FUEL INJECTION SYSTEM

2211

28380RELAY ASSY, FUEL PUMP

main90987-03003i3UZFE..UZZ40200101-200508

7701

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-24020iUZZ40200101-200508

82774COVER, ENGINE ROOM ECU

main82774-30040iUZZ40200101-200508

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30070iUZZ40200101-200508

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iUZZ40200101-200508

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iUZZ40200101-200508

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iUZZ40200101-200508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30150iUZZ40200101-200508

89460SENSOR ASSY, VAPOR PRESSURE

main89460-53010iUZZ40200101-200508

89661COMPUTER, ENGINE CONTROL

main89661-24620iUZZ40..5FC200101-200109

sub89661-24621

main89661-24621iUZZ40..5FC200109-200208

main89661-24660iUZZ40..5FC200101-200208

TAIWAN SPEC

main89661-24670iUZZ40..5FC200208-200308

main89661-24680iUZZ40200208-200508

TAIWAN SPEC

main89661-24700iUZZ40..5FC200308-200401

sub89661-24701

main89661-24701iUZZ40..5FC200402-200408

main89661-24710iUZZ40200408-200508

main89661-24720iUZZ40200508-200510

sub89661-24721

main89661-24721iUZZ40200511-200607

sub89661-24790

main89661-24740iUZZ40200508-200607

KOREA SPEC

sub89661-24800

main89661-24750iUZZ40200508-200708

TAIWAN SPEC

main89661-24790iUZZ40200608-200706

sub89661-24791

main89661-24791iUZZ40200707-200711

sub89661-24792

main89661-24792iUZZ40200712-200906

sub89661-24793

main89661-24793iUZZ40200907-200908

main89661-24800iUZZ40200608

KOREA SPEC

main89661-24820iUZZ40200908

sub89661-24821

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30280iUZZ40200101-200508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30230iUZZ40200101-200508

9011906484

main90119-06484

9017906128

main90179-06128

9043012005

main90430-12005

9331915010

main93319-15010

9338115010

main93381-15010

19 parts on this diagram · 1 diagram in section
