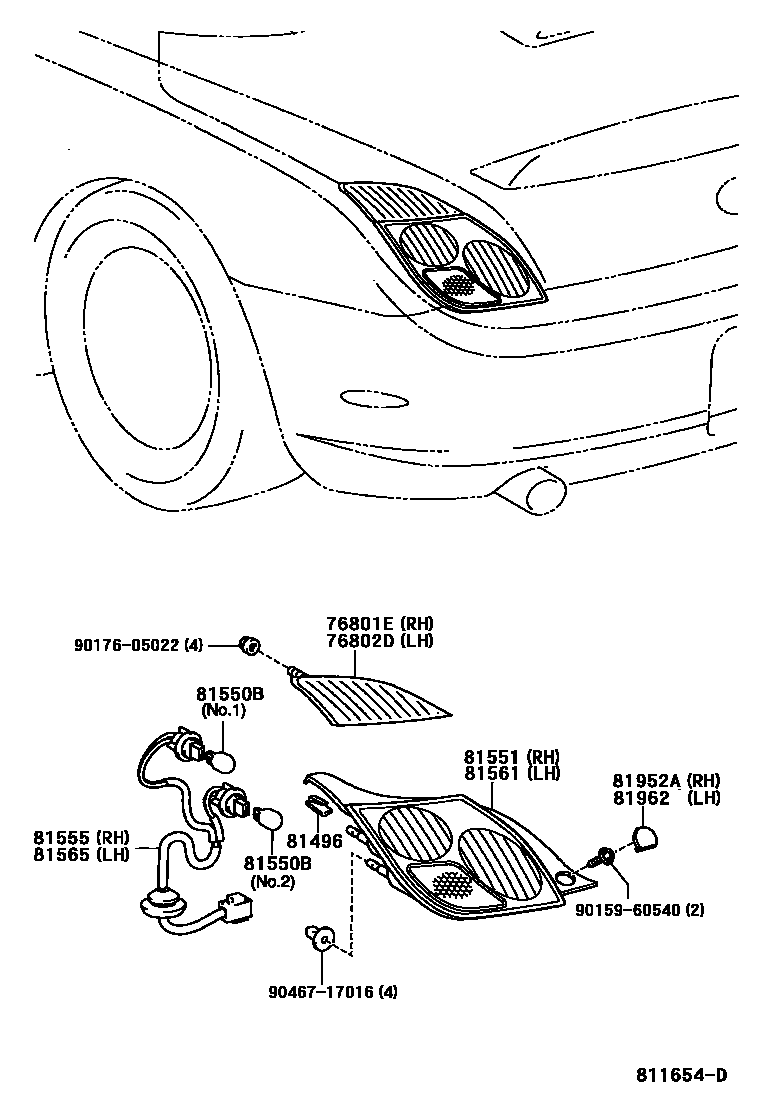

REAR COMBINATION LAMP

0001 1 0002 1

76801EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH

main76801-24010iUZZ40200101-200508

main76801-24020iUZZ40200508

76802DGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LH

main76802-24010iUZZ40200101-200508

main76802-24020iUZZ40200508

81496GUIDE, REAR COMBINATION LAMP

main81496-24020iUZZ40200101-200508

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043iUZZ40200101-200508

12V 21W,NO.1

main90981-13044iUZZ40200101-200508

12V 21/5W,NO.2

main90981-15021iUZZ40200508-201007

12V 21W,AMBER

81551LENS, REAR COMBINATION LAMP, RH

main81551-24080iUZZ40200101-200508

main81551-24130iUZZ40200508

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-24080iUZZ40200101-200508

main81555-24140iUZZ40200508

81561LENS, REAR COMBINATION LAMP, LH

main81561-24080iUZZ40200101-200508

main81561-24130iUZZ40200508

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-24080iUZZ40200101-200508

main81555-24140iUZZ40200508

81952ACOVER, REAR LAMP, RH

main81952-22010iUZZ40200101-200508

81962COVER, REAR LAMP, LH

main81952-22010iUZZ40200101-200508

9015960540

main90159-60540

9017605022

main90176-05022

9046717016

main90467-17016

13 parts on this diagram · 2 diagrams in section
