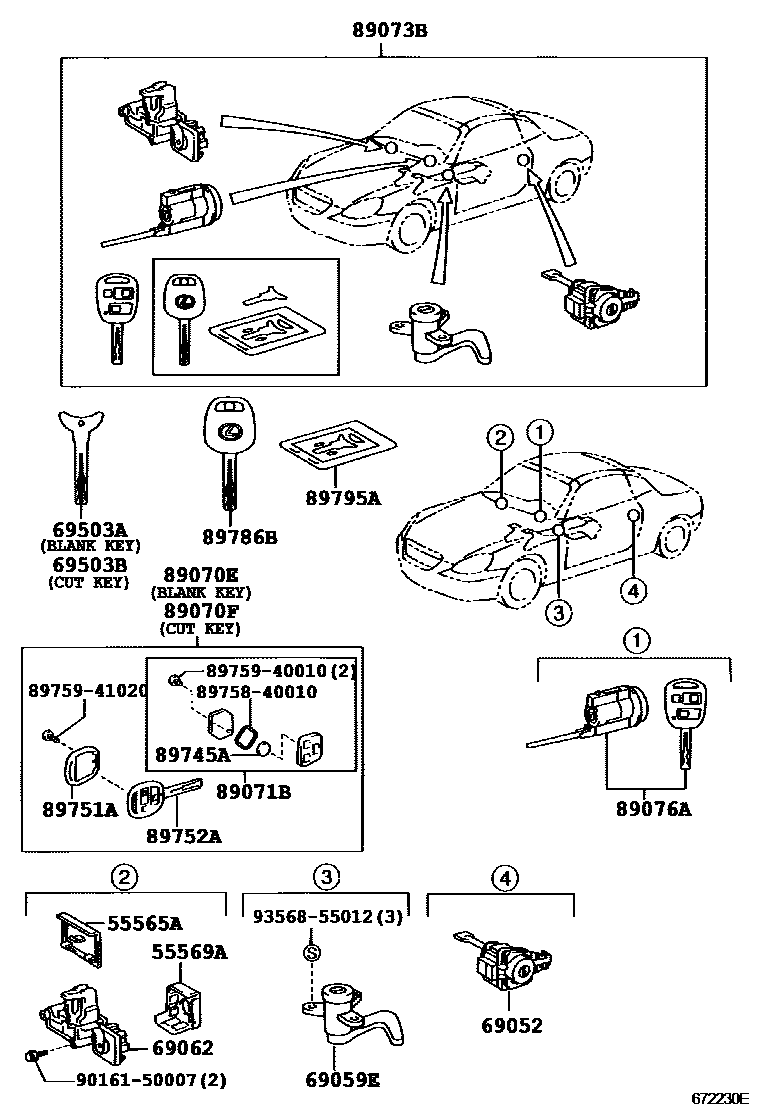

LOCK CYLINDER SET
55565AHANDLE, GLOVE COMPARTMENT DOOR LOCK
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
sub55565-24010
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
sub55565-24010
55569ACOVER, GLOVE COMPARTMENT DOOR LOCK
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
sub55569-24010
69052CYLINDER & KEY SET, DOOR LOCK, LH
69059ECYLINDER & KEY SET, CONSOLE COMPARTMENT LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503AKEY, BLANK
MASTER KEY,CARD TYPE
69503BKEY, CUT
MASTER KEY
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
KOREA SPEC
KOREA SPEC
89073BCYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
KOREA SPEC
KOREA OR TAIWAN SPEC
sub89076-24021
89745ABATTERY, TRANSMITTER
89752ACASE, TRANSMITTER HOUSING
BLANK KEY
MASTER KEY(BLANK)
MASTER KEY(CUT)
CUT KEY
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
CUT KEY
89795ACARD, TRANSPONDER KEY
KOREA SPEC
KOREA OR TAIWAN SPEC
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
9016150007
main90161-50007
9356855012
main93568-55012
22 parts on this diagram · 2 diagrams in section
