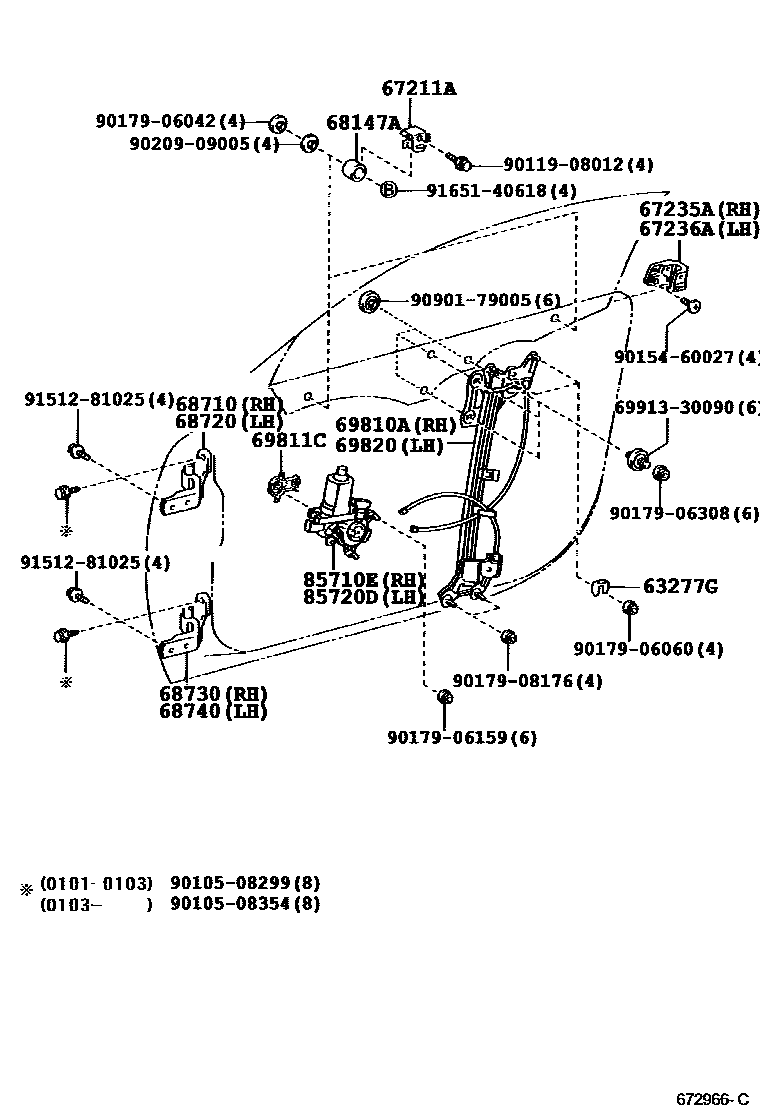

FRONT DOOR WINDOW REGULATOR & HINGE

63277GSHIM, WINDOW REGULATOR

main63277-30060iUZZ40200101-200508

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-30070iUZZ40200101-200508

67235ASTABILIZER, DOOR GLASS FEMALE, RH

main67235-30091iUZZ40200101-200508

67236ASTABILIZER, DOOR GLASS FEMALE, LH

main67236-30081iUZZ40200101-200508

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-20040iUZZ40200101-200508

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30180iUZZ40200101-200612

sub68710-30181

main68710-30181iUZZ40200701

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30100iUZZ40200101-200612

sub68720-30101

main68720-30101iUZZ40200701

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-30100iUZZ40200101-200612

sub68720-30101

main68720-30101iUZZ40200701

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-30180iUZZ40200101-200612

sub68710-30181

main68710-30181iUZZ40200701

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-24050iUZZ40200101-200508

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-33010iUZZ40200101-200508

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-24050iUZZ40200101-200508

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-24040iUZZ40200101-200508

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-24040iUZZ40200101-200508

6991330090BOLT, FRONT DOOR GLASS SETTING

main69913-30090

9010508299

main90105-08299

9010508354

main90105-08354

9011908012

main90119-08012

9015460027

main90154-60027

9017906042

main90179-06042

9017906060

main90179-06060

9017906159

main90179-06159

9017906308

main90179-06308

9017908176

main90179-08176

9020909005

main90209-09005

9090179005

main90901-79005

9151281025

main91512-81025

9165140618

main91651-40618

28 parts on this diagram · 1 diagram in section
