EPC Data

FRONT DOOR LOCK & HANDLE

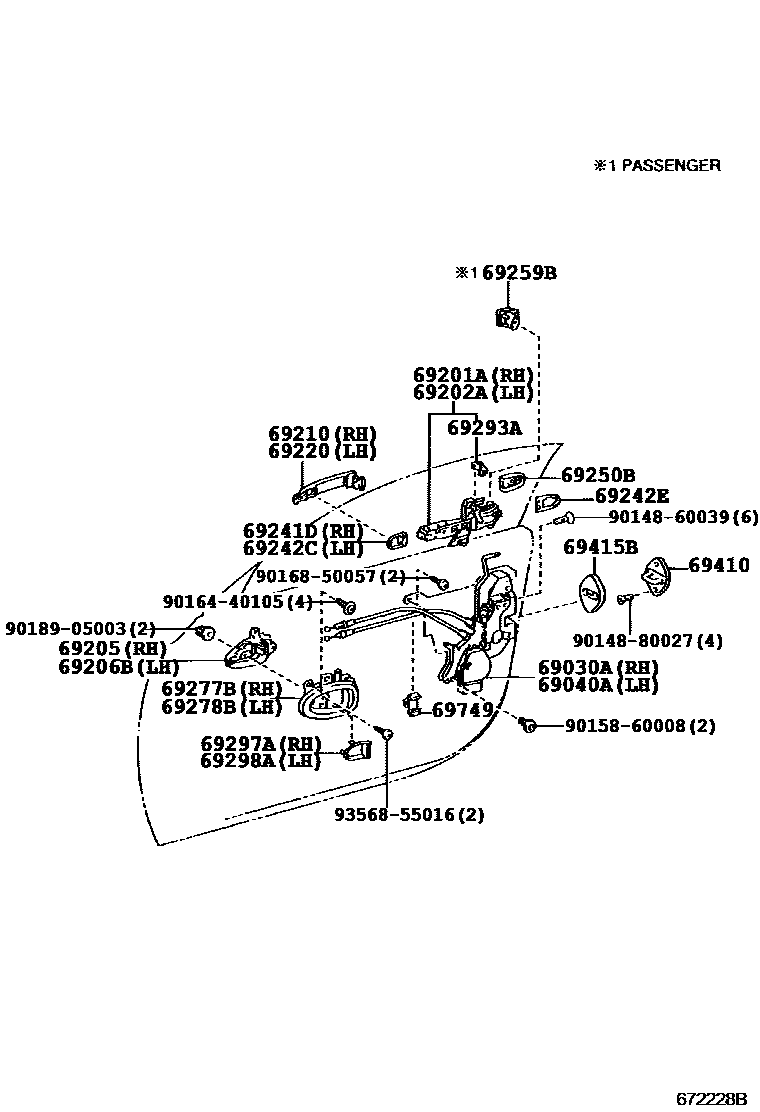

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-24090i200101-200112
main69030-24140i200112-200508
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-24100i200101-200508
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-50011i200101-200508
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-50011i200101-200508
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-24030-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
main69205-30140-A0i200101-200508
ECRU,TRIM0#
sub69205-30140
main69205-30140-C0i200101-200508
BLACK,TRIM20,21
sub69205-30140
main69205-30140-C0i200508
BLACK,TRIM2#,5#
sub69205-30140
main69205-30140-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
sub69205-30140
main69205-30140-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
sub69205-30140
main69205-30140-E1i200508
CAMEL,TRIM4#
sub69205-30140
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-24040-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
main69206-30140-A0i200101-200508
ECRU,TRIM0#
sub69206-30140
main69206-30140-C0i200508
BLACK,TRIM2#,5#
sub69206-30140
main69206-30140-C0i200101-200508
BLACK,TRIM20,21
sub69206-30140
main69206-30140-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
sub69206-30140
main69206-30140-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
sub69206-30140
main69206-30140-E1i200508
CAMEL,TRIM4#
sub69206-30140
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-24060-B0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2
main69210-50050-A2i200101-200608
WHITE PEARL CS.,065
sub69210-50050
main69210-50050-A4i200608
WHITE PEARL CS.,077
sub69210-50050
main69210-50050-B1i200101-200508
SILVER ME.,1C0
sub69210-50050
main69210-50050-B4i200508
PREMIUM SILVER,1F2
sub69210-50050
main69210-50050-B5i200508
DK.GRAY MC.,1G0
sub69210-50050
main69210-50050-C0i200101-200508
*104,BLACK,202 ,3P0
sub69210-50050
main69210-50050-C0i200508-200608
BLACK,202
sub69210-50050
main69210-50050-C1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211
sub69210-50050
main69210-50050-C2i200608
BLACK,212
sub69210-50050
main69210-50050-D2i200101-200508
*104,SUPER RED 5,3P0
sub69210-50050
main69210-50050-D3i200101-200808
BLACKISH RED MC.,3P6
sub69210-50050
main69210-50050-D4i200508
RED MC.CS.,3R1
sub69210-50050
main69210-50050-D5i200808
SHELL M.M.,3R4
sub69210-50050
main69210-50050-E1i200101-200508
BEIGE M.M.,4Q8
sub69210-50050
main69210-50050-E3i200508-200708
PREMIUM BEIGE,4S7
sub69210-50050
main69210-50050-E4i200508-200908
PREMIUM BROWN,4T2
sub69210-50050
main69210-50050-E5i200708
BEIGE ME.,4T1
sub69210-50050
main69210-50050-G1i200101-200508
DARK GREEN MC.,6S6
sub69210-50050
main69210-50050-J1i200101-200608
DK.BLUE M.M.,8P4
sub69210-50050
main69210-50050-J3i200308-200311
PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME.,8Q6
sub69210-50050
main69210-50050-J5i200608
DK.BLUE MC. CC.,8U0
sub69210-50050
main69210-50050-J6i200908
BLUE M.M.,8U4
sub69210-50050
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-24060-B0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2
main69210-50050-A2i200101-200608
WHITE PEARL CS.,065
sub69210-50050
main69210-50050-A4i200608
WHITE PEARL CS.,077
sub69210-50050
main69210-50050-B1i200101-200508
SILVER ME.,1C0
sub69210-50050
main69210-50050-B4i200508
PREMIUM SILVER,1F2
sub69210-50050
main69210-50050-B5i200508
DK.GRAY MC.,1G0
sub69210-50050
main69210-50050-C0i200508-200608
BLACK,202
sub69210-50050
main69210-50050-C0i200101-200508
*104,BLACK,202 ,3P0
sub69210-50050
main69210-50050-C1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211
sub69210-50050
main69210-50050-C2i200608
BLACK,212
sub69210-50050
main69210-50050-D2i200101-200508
*104,SUPER RED 5,3P0
sub69210-50050
main69210-50050-D3i200101-200808
BLACKISH RED MC.,3P6
sub69210-50050
main69210-50050-D4i200508
RED MC.CS.,3R1
sub69210-50050
main69210-50050-D5i200808
SHELL M.M.,3R4
sub69210-50050
main69210-50050-E1i200101-200508
BEIGE M.M.,4Q8
sub69210-50050
main69210-50050-E3i200508-200708
PREMIUM BEIGE,4S7
sub69210-50050
main69210-50050-E4i200508-200908
PREMIUM BROWN,4T2
sub69210-50050
main69210-50050-E5i200708
BEIGE ME.,4T1
sub69210-50050
main69210-50050-G1i200101-200508
DARK GREEN MC.,6S6
sub69210-50050
main69210-50050-J1i200101-200608
DK.BLUE M.M.,8P4
sub69210-50050
main69210-50050-J3i200308-200311
PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME.,8Q6
sub69210-50050
main69210-50050-J5i200608
DK.BLUE MC. CC.,8U0
sub69210-50050
main69210-50050-J6i200908
BLUE M.M.,8U4
sub69210-50050
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-50020i200101-200508
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69241-50020i200101-200508
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-50020i200101-200508
69250BCOVER ASSY, DOOR OUTSIDE HANDLE
main69250-24010-B0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2,RH
main69250-24020-B0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2,LH
main69250-50011-A2i200101-200608
WHITE PEARL CS.,065,DRIVER SIDE
sub69250-50011
main69250-50011-A4i200608
WHITE PEARL CS.,077,DRIVER SIDE
sub69250-50011
main69250-50011-B1i200101-200508
SILVER ME.,1C0,DRIVER SIDE
sub69250-50011
main69250-50011-B4i200508
PREMIUM SILVER,1F2,DRIVER SIDE
sub69250-50011
main69250-50011-B5i200508
DK.GRAY MC.,1G0,DRIVER SIDE
sub69250-50011
main69250-50011-C0i200508-200608
BLACK,202,DRIVER SIDE
sub69250-50011
main69250-50011-C0i200101-200508
*104,BLACK,202 ,3P0,DRIVER SIDE
sub69250-50011
main69250-50011-C1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211,DRIVER SIDE
sub69250-50011
main69250-50011-C2i200608
BLACK,212,DRIVER SIDE
sub69250-50011
main69250-50011-D2i200101-200508
*104,SUPER RED 5,3P0,DRIVER SIDE
sub69250-50011
main69250-50011-D3i200101-200808
BLACKISH RED MC.,3P6,DRIVER SIDE
sub69250-50011
main69250-50011-D4i200508
RED MC.CS.,3R1,DRIVER SIDE
sub69250-50011
main69250-50011-D5i200808
SHELL M.M.,3R4,DRIVER SIDE
sub69250-50011
main69250-50011-E1i200101-200508
BEIGE M.M.,4Q8,DRIVER SIDE
sub69250-50011
main69250-50011-E3i200508-200708
PREMIUM BEIGE,4S7,DRIVER SIDE
sub69250-50011
main69250-50011-E4i200508-200908
PREMIUM BROWN,4T2,DRIVER SIDE
sub69250-50011
main69250-50011-E5i200708
BEIGE ME.,4T1,DRIVER SIDE
sub69250-50011
main69250-50011-G1i200101-200508
DARK GREEN M.M.,6S6,DRIVER SIDE
sub69250-50011
main69250-50011-J1i200101-200608
DK.BLUE M.M.,8P4,DRIVER SIDE
sub69250-50011
main69250-50011-J3i200308-200311
PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME.,8Q6,DRIVER SIDE
sub69250-50011
main69250-50011-J5i200608
DK.BLUE MC. CC.,8U0,DRIVER SIDE
sub69250-50011
main69250-50011-J6i200908
BLUE M.M.,8U4,DRIVER SIDE
sub69250-50011
main69250-50021-A2i200101-200608
WHITE PEARL CS.,065,PASSENGER SIDE
sub69250-50021
main69250-50021-A4i200608
WHITE PEARL CS.,077,PASSENGER SIDE
sub69250-50021
main69250-50021-B1i200101-200508
SILVER ME.,1C0,PASSENGER SIDE
sub69250-50021
main69250-50021-B4i200508
PREMIUM SILVER,1F2,PASSENGER SIDE
sub69250-50021
main69250-50021-B5i200508
DK.GRAY MC.,1G0,PASSENGER SIDE
sub69250-50021
main69250-50021-C0i200101-200508
*104,BLACK,202 ,3P0,PASSENGER SIDE
sub69250-50021
main69250-50021-C0i200508-200608
BLACK,202,PASSENGER SIDE
sub69250-50021
main69250-50021-C1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211,PASSENGER SIDE
sub69250-50021
main69250-50021-C2i200608
BLACK,212,PASSENGER SIDE
sub69250-50021
main69250-50021-D2i200101-200508
*104,SUPER RED 5,3P0,PASSENGER SIDE
sub69250-50021
main69250-50021-D3i200101-200808
BLACKISH RED MC.,3P6,PASSENGER SIDE
sub69250-50021
main69250-50021-D4i200508
RED MC.CS.,3R1,PASSENGER SIDE
sub69250-50021
main69250-50021-D5i200808
SHELL M.M.,3R4,PASSENGER SIDE
sub69250-50021
main69250-50021-E1i200101-200508
BEIGE M.M.,4Q8,PASSENGER SIDE
sub69250-50021
main69250-50021-E3i200508-200708
PREMIUM BEIGE,4S7,PASSENGER SIDE
sub69250-50021
main69250-50021-E4i200508-200908
PREMIUM BROWN,4T2,PASSENGER SIDE
sub69250-50021
main69250-50021-E5i200708
BEIGE ME.,4T1,PASSENGER SIDE
sub69250-50021
main69250-50021-G1i200101-200508
DARK GREEN M.M.,6S6,PASSENGER SIDE
sub69250-50021
main69250-50021-J1i200101-200608
DK.BLUE M.M.,8P4,PASSENGER SIDE
sub69250-50021
main69250-50021-J3i200308-200311
PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME.,8Q6,PASSENGER SIDE
sub69250-50021
main69250-50021-J5i200608
DK.BLUE MC. CC.,8U0,PASSENGER SIDE
sub69250-50021
main69250-50021-J6i200908
BLUE M.M.,8U4,PASSENGER SIDE
sub69250-50021
69259BRETAINER, DOOR OUTSIDE HANDLE, LH
main69259-50011i200101-200508
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-24040-A0i200101-200508
ECRU,TRIM0#
main69277-24040-C0i200101-200508
BLACK,TRIM20,21
main69277-24040-C0i200508
BLACK,TRIM2#,5#
main69277-24040-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main69277-24040-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
main69277-24040-E0i200508
CAMEL,TRIM4#
main69277-24050-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-24040-A0i200101-200508
ECRU,TRIM0#
main69278-24040-C0i200508
BLACK,TRIM2#,5#
main69278-24040-C0i200101-200508
BLACK,TRIM20,21
main69278-24040-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main69278-24040-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
main69278-24040-E0i200508
CAMEL,TRIM4#
main69278-24050-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12050i200101-200508
RH
main69293-12060i200101-200508
LH
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
main69297-24020-A0i200101-200508
ECRU,TRIM0#
main69297-24020-C0i200101-200508
BLACK,TRIM20,21
main69297-24020-C0i200508
BLACK,TRIM2#,5#
main69297-24020-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main69297-24020-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
main69297-24020-E0i200508
CAMEL,TRIM4#
main69297-24030-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
main69298-24020-A0i200101-200508
ECRU,TRIM0#
main69298-24020-C0i200508
BLACK,TRIM2#,5#
main69298-24020-C0i200101-200508
BLACK,TRIM20,21
main69298-24020-D0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM3#
main69298-24020-D0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33
main69298-24020-E0i200508
CAMEL,TRIM4#
main69298-24030-D0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-51010i200101-200508
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-30020i200101-200508
69749CLAMP, FRONT DOOR LOCK LINK
main69749-30050i200101-200508
9014860039
main90148-60039
9014880027
main90148-80027
9015860008
main90158-60008
9016440105
main90164-40105
9016850057
main90168-50057
9018905003
main90189-05003
9356855016
main93568-55016

28 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
