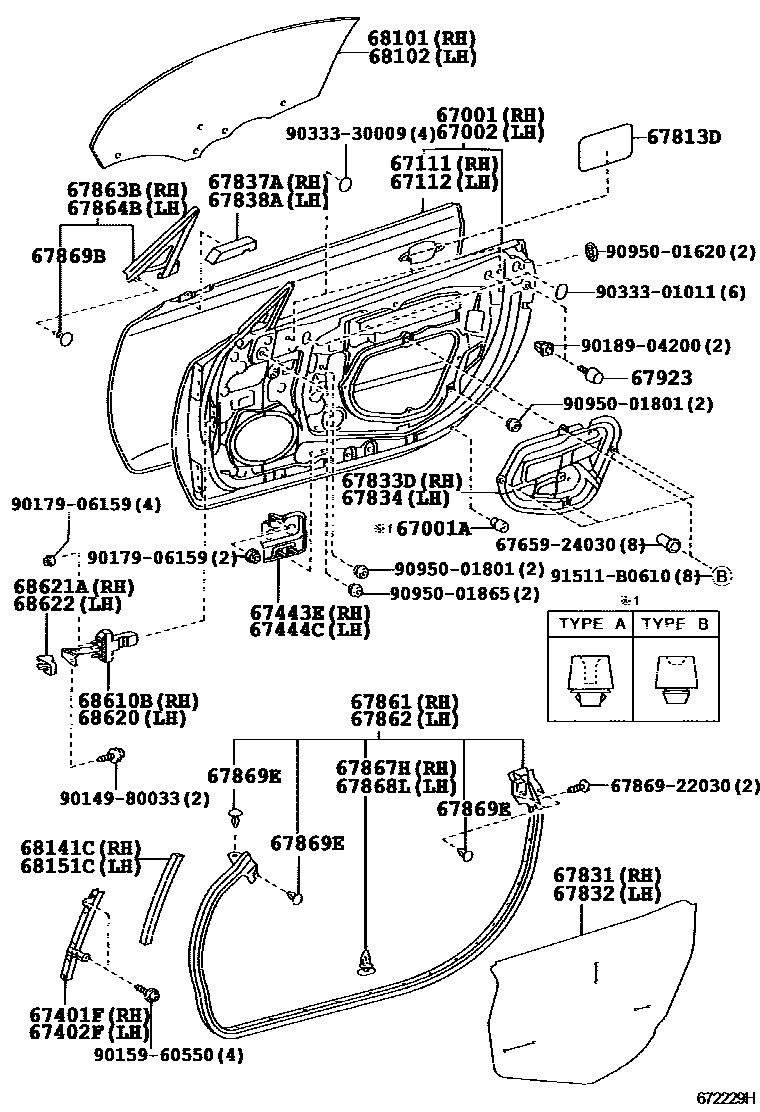

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
TYPE A:REFER ILLUST.
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER ILLUST.
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67443EPLATE, FRONT DOOR INSIDE PANEL, RH
67444CPLATE, FRONT DOOR INSIDE PANEL, LH
67813DSHEET, QUARTER PANEL SILENCER, RH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67837ASEAL, FRONT DOOR VENT, RH
67838ASEAL, FRONT DOOR VENT, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867HRETAINER, DOOR WEATHERSTRIP, RH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
RH
LH
67869ECLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=5.0,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
6765924030CASE, FRONT DOOR INSIDE PULL
main67659-24030
6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-22030
9014980033
main90149-80033
9015960550
main90159-60550
9017906159
main90179-06159
9018904200
main90189-04200
9033301011
main90333-01011
9033330009
main90333-30009
9095001620
main90950-01620
9095001801
main90950-01801
9095001865
main90950-01865
91511B0610
main91511-B0610
45 parts on this diagram · 3 diagrams in section
