PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

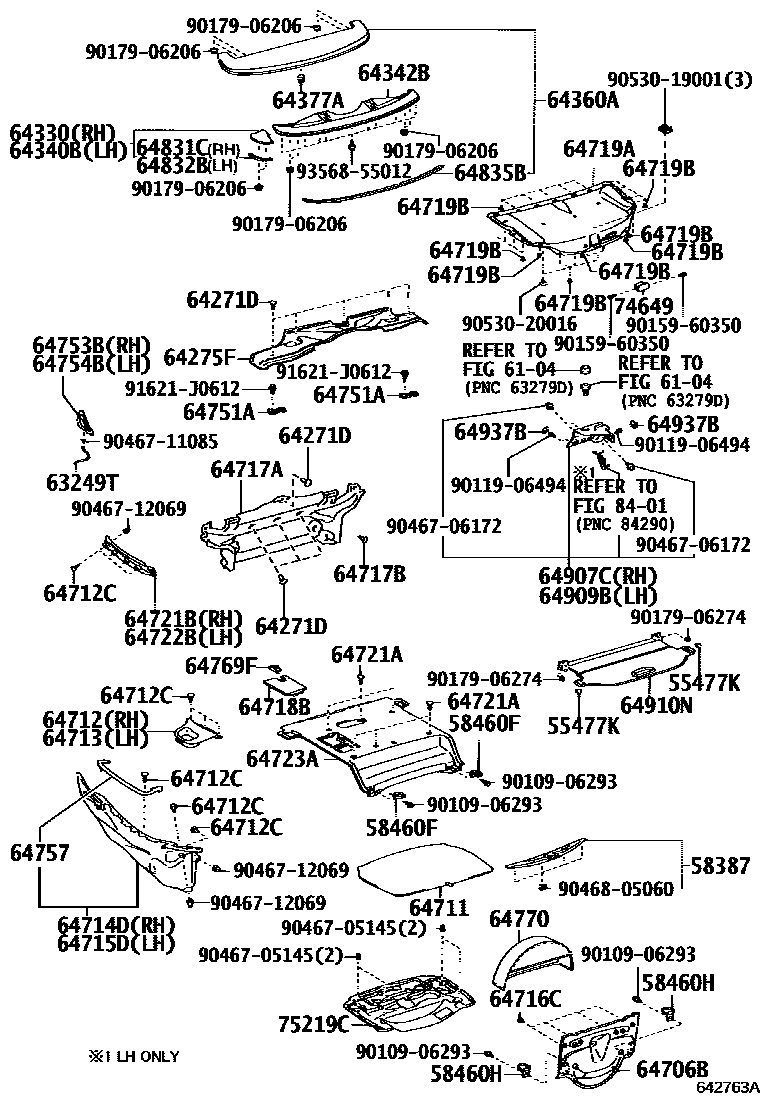

Parts diagram
55477KCOVER, TONNEAU SERVICE HOLE
main55477-10010-B2i200101-200508
MD.CHARCOAL,TRIM0#,20,21
sub55477-10010
main55477-10010-B2i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
sub55477-10010
main55477-10010-B2i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
sub55477-10010
main55477-10010-B2i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
sub55477-10010
58387PLATE, REAR FLOOR FINISH
main58387-24020-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
main58387-24020-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main58387-24020-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
main58387-24020-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33010i200101-200508
58460HSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33010i200101-200508
6104
63249THOSE, REMOVABLE ROOF DRAIN
main63245-24010i200101-200508
RH
main63249-24070i200101-200508
LH
64271DCLIP(FOR BACK PANEL TRIM)
main90467-08220-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
sub90467-08220
main90467-08220-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
sub90467-08220
main90467-08220-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
sub90467-08220
main90467-08220-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
sub90467-08220
64275FCOVER, BACK PANEL TRIM
main64275-24020-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64275-24020-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
main64275-24020-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64275-24020-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-24250-C0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#
main64330-24250-C0i200101-200508
BLACK,TRIM0#,20,21
main64330-24250-C0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33
main64330-24250-C0i200508
BLACK,TRIM0#,2#,5#
main64330-24250-E0i200508
DK.BROWN,TRIM4#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
main64340-24010-C0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#
main64340-24010-C0i200101-200508
BLACK,TRIM0#,20,21
main64340-24010-C0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33
main64340-24010-C0i200508
BLACK,TRIM0#,2#,5#
main64340-24010-E0i200508
DK.BROWN,TRIM4#
64342BCOVER, PACKAGE TRAY TRIM UNDER
main64342-24010i200101-200508
64360APANEL ASSY, PACKAGE TRAY, CENTER
main64360-24010-C0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#
main64360-24010-C0i200101-200508
BLACK,TRIM0#,20,21
main64360-24010-C0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33
main64360-24010-C0i200508
BLACK,TRIM0#,2#,5#
main64360-24010-E0i200508
DK.BROWN,TRIM4#
64377ACUSHION, PACKAGE TRAY TRIM
main64377-24010i200101-200508
64706BCOVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR
main64716-24070-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(RUN FLATS TIRE),MD.CHARCOAL,TRIM33
main64716-24070-B0i200508
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
main64716-24070-B0i200101-200508
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,20,21
main64716-24070-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM3#
main64716-24080-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
main64716-24080-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64716-24080-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64716-24080-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-24150-B0i200101-200307
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,20,21
sub64711-24151
main64711-24151-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(RUN FLATS TIRE),MD.CHARCOAL,TRIM33
main64711-24151-B0i200307-200508
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,20,21
main64711-24151-B0i200508
W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
main64711-24151-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(RUN FLATS TIRE),MEDIUM CHARCOAL,TRIM3#
main64711-24170-B0i200101-200307
MEDIUM CHARCOAL,TRIM0#,20,21
sub64711-24171
main64711-24171-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
main64711-24171-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64711-24171-B0i200307-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64711-24171-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
main64712-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64712-24010-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64712-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64712-24010-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-08220-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
sub90467-08220
main90467-08220-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
sub90467-08220
main90467-08220-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
sub90467-08220
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
main64713-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64713-24010-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64713-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64713-24010-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64714-24030-B1i200101-200205
MEDIUM CHARCOAL,TRIM0#,20,21
main64714-24030-B1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64714-24030-B1i200205-200508
MEDIUM CHARCOAL,TRIM00,20,21
main64714-24030-B1i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64714-24030-B1i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-24060-B1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64715-24060-B1i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64715-24060-B1i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64715-24060-B1i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-08220-B0i200508
W(RUN FLATS TIRE),MD.CHARCOAL,TRIM0#,2#,4#,5#
sub90467-08220
main90467-08220-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
sub90467-08220
main90467-08220-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(RUN FLATS TIRE),MD.CHARCOAL,TRIM3#
sub90467-08220
main90467-08220-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
sub90467-08220
main90467-08220-B0i200101-200508
W(RUN FLATS TIRE),MD.CHARCOAL,TRIM0#,20,21
sub90467-08220
main90467-08220-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
sub90467-08220
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-24130-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64717-24130-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64717-24130-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64717-24130-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-05056-B2i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
sub90467-05056
main90467-05056-B2i200101-200508
MD.CHARCOAL,TRIM0#,20,21
sub90467-05056
main90467-05056-B2i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
sub90467-05056
main90467-05056-B2i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
sub90467-05056
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
main64718-24020-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64718-24020-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64718-24020-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64718-24020-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64719-24010-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64719-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64719-24010-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-08220-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
sub90467-08220
main90467-08220-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
sub90467-08220
main90467-08220-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
sub90467-08220
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-08220-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
sub90467-08220
main90467-08220-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
sub90467-08220
main90467-08220-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
sub90467-08220
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
main64721-24170-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64721-24170-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64721-24170-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64721-24170-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
main64722-24150-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
main64722-24150-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64722-24150-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64722-24150-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
main64723-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64723-24010-B0i200101-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64723-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
main64723-24010-B0i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
main64723-24020-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(NAVIGATION SYSTEM),MEDIUM CHARCOAL,TRIM3#
main64723-24020-B0i200101-200508
W(NAVIGATION SYSTEM),MEDIUM CHARCOAL,TRIM0#,20,21
main64723-24020-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(NAVIGATION SYSTEM),MD.CHARCOAL,TRIM33
main64723-24020-B0i200508-200908
W(NAVIGATION SYSTEM),MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
64751ABRACKET, LUGGAGE COMPARTMENT COVER, NO.1
main64751-24010i200101-200508
64753BPLATE, REAR FLOOR FINISH SIDE, RH
main64753-24010-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
main64753-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
main64753-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64753-24010-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
64754BPLATE, REAR FLOOR FINISH SIDE, LH
main64754-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
main64754-24010-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
main64754-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64754-24010-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
64757PROTECTOR, LUGGAGE COMPATMENT COVER, NO.1
main64757-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#,RH
main64757-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33,RH
main64757-24010-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21,RH
main64757-24010-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#,RH
main64758-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#,LH
main64758-24010-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21,LH
main64758-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33,LH
main64758-24010-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#,LH
64769FKNOB, LUGGAGE TRIM SERVICE HOLE COVER
main64769-20010-B3i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
sub64769-20010
main64769-20010-B3i200101-200508
MD.CHARCOAL,TRIM0#,20,21
sub64769-20010
main64769-20010-B3i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
sub64769-20010
main64769-20010-B3i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
sub64769-20010
64770COVER ASSY, SPARE WHEEL
main64771-24040-B0i200101-200307
MEDIUM CHARCOAL,TRIM0#,20,21
sub64771-24041
main64771-24041-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MEDIUM CHARCOAL,TRIM3#
sub64771-24043
main64771-24041-B0i200307-200508
MEDIUM CHARCOAL,TRIM0#,20,21
sub64771-24043
main64771-24041-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
sub64771-24043
main64771-24041-B0i200508-200811
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
sub64771-24043
main64771-24042-B0i200811
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
sub64771-24060
64831CWEATHERSTRIP, BACK WINDOW GLASS, RH
main64831-24010i200101-200508
64832BWEATHERSTRIP, BACK WINDOW GLASS, LH
main64832-24010i200101-200508
64835BWEATHERSTRIP, BACK WINDOW GLASS, CENTER
main64835-24010i200101-200307
sub64835-24011
main64835-24011i200307-200508
64907CSTOPPER SUB-ASSY, TONNEAU COVER, RH
main64907-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
main64907-24010-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
main64907-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64907-24010-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
64909BSTOPPER SUB-ASSY, TONNEAU COVER, LH
main64909-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
main64909-24010-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
main64909-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64909-24010-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
64910NCOVER ASSY, TONNEAU
main64910-24010-B1i200101-200108
MEDIUM CHARCOAL,TRIM0#,20,21
sub64910-24011
main64910-24011-B1i200108-200109
MEDIUM CHARCOAL,TRIM0#,20,21
sub64910-24012
main64910-24012-B1i200109-200307
MEDIUM CHARCOAL,TRIM0#,20,21
sub64910-24013
main64910-24013-B1i200508
MEDIUM CHARCOAL,TRIM0#,2#,4#,5#
main64910-24013-B1i200307-200508
MEDIUM CHARCOAL,TRIM0#,20,21
main64910-24013-B1i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64910-24020-B0i200111-200112
NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21
main64910-24030-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
64937BCAP, TONNEAU COVER HOLDER
main64937-24010-B0i200101-200508
MD.CHARCOAL,TRIM0#,20,21
main64937-24010-B0i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
main64937-24010-B0i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main64937-24010-B0i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
main74649-30010-B1i200408-200409
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM3#
main74649-30010-B1i200101-200508
MD.CHARCOAL,TRIM0#,2#
main74649-30010-B1i200608-200611
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),MD.CHARCOAL,TRIM33
main74649-30010-B1i200508
MD.CHARCOAL,TRIM0#,2#,4#,5#
75219CCOVER, TOOL BOX
main75219-24010i200101-200508
8401
9010906293
main90109-06293
9011906494
main90119-06494
9015960350
main90159-60350
9017906206
main90179-06206
9017906274
main90179-06274
9046705145
main90467-05145
9046706172
main90467-06172
9046711085
main90467-11085
9046712069
main90467-12069
9046805060
main90468-05060
9053019001
main90530-19001
9053020016
main90530-20016
91621J0612
main91621-J0612
9356855012
main93568-55012

60 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
