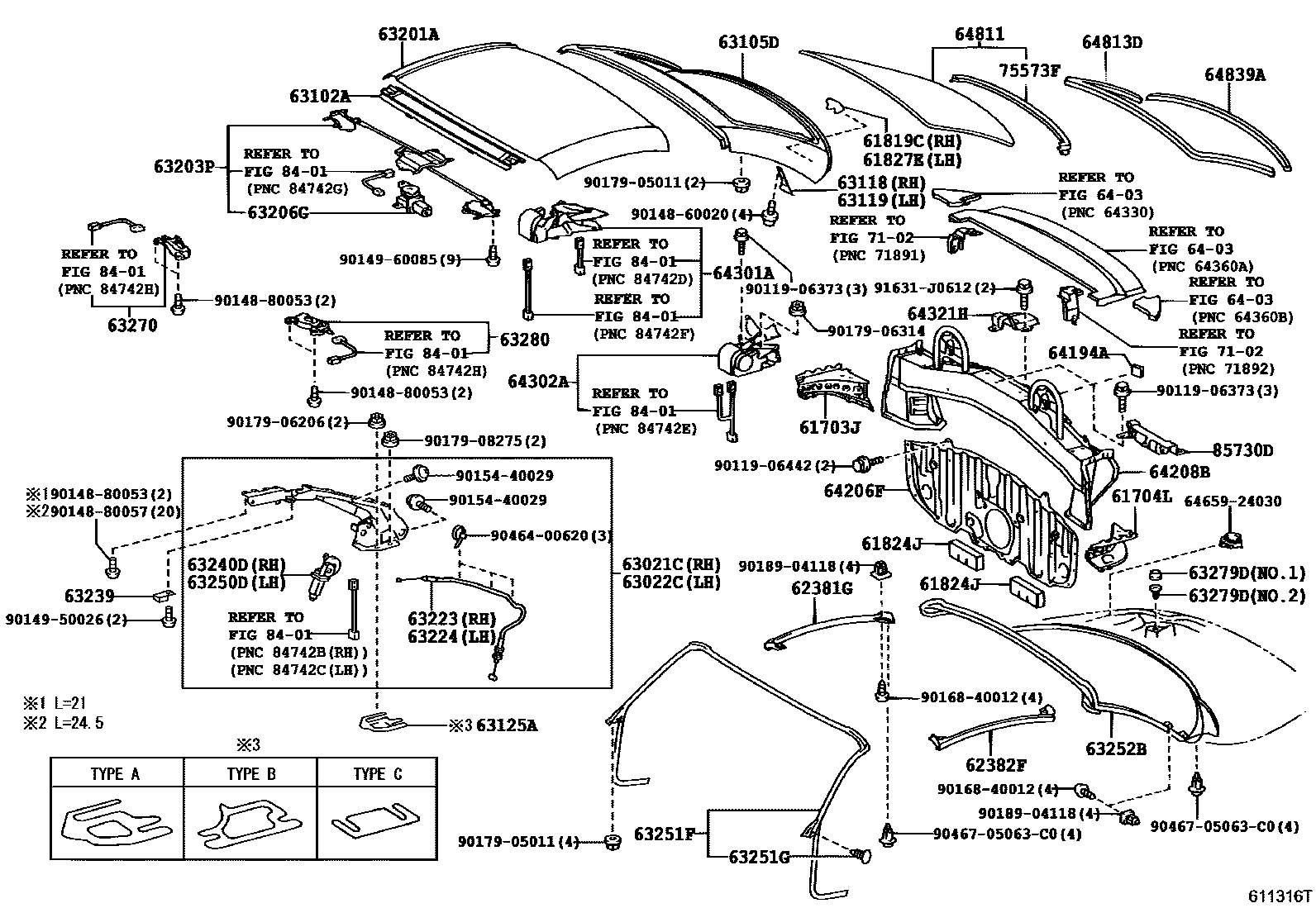

ROOF PANEL & BACK WINDOW GLASS
61703JREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61704LREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH
61819CSEAL, BACK WINDOW FRAME, RH
61824JPAD, NOISE SHUTTER, NO.1
61827ESEAL, BACK WINDOW FRAME, LH
62381GWEATHERSTRIP, ROOF SIDE RAIL, RH
62382FWEATHERSTRIP, ROOF SIDE RAIL, LH
63021CLINK SUB-ASSY, ROOF PANEL RH
63022CLINK SUB-ASSY, ROOF PANEL, LH
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63125ASHIM, ROOF PANEL
TYPE A
TYPE B
TYPE C
63201APANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63203PLOCK SUB-ASSY, REMOVABLE ROOF
63206GGEAR SUB-ASSY, SLIDING ROOF DRIVE
63223CABLE, SLIDING ROOF DRIVE, RH
63224CABLE, SLIDING ROOF DRIVE, LH
63239STOPPER, SLIDING ROOF PANEL
63240DGEAR ASSY, SLIDING ROOF DRIVE, RH
63250DGEAR ASSY, SLIDING ROOF DRIVE, LH
63251FWEATHERSTRIP, REMOVABLE ROOF, FRONT
63251GCLIP,(FOR REMOVABLE ROOF WEATHERSTRIP)
63252BWEATHERSTRIP, REMOVABLE ROOF, REAR
63270CATCH ASSY, REMOVABLE ROOF AUXILIARY, RH
63279DSTOPPER, SLIDING ROOF GUIDE RAIL
NO.2
NO.1
63280CATCH ASSY, REMOVABLE ROOF AUXILIARY, LH
6403
64194APAD, BACK PANEL SILENCER, UPPER
64206FPANEL SUB-ASSY, ROOM PARTITION
64208BMEMBER SUB-ASSY, ROOM PARTITION CROSS
64301ALINK SUB-ASSY, PACKAGE TRAY TRIM, RH
64302ALINK SUB-ASSY, PACKAGE TRAY TRIM, LH
64321HBRACKET, PACKAGE TRAY TRIM
W(MAYDAY SYSTEM)
64811GLASS, BACK WINDOW
*EHTT,T=3.5,GREEN
64813DDAM, BACK WINDOW GLASS ADHESIVE
64839APACKING, BACK WINDOW
7102
75573FMOULDING, BACK WINDOW, OUTSIDE
8401
85730DMOTOR ASSY, PACKAGE TRAY TRIM LINK, LH
6465924030BRACKET, LUGGAGE CONTROL CABLE, LH
main64659-24030
9011906373
main90119-06373
9011906442
main90119-06442
9014860020
main90148-60020
9014880053
main90148-80053
9014880057
main90148-80057
9014950026
main90149-50026
9014960085
main90149-60085
9015440029
main90154-40029
9016840012
main90168-40012
9017905011
main90179-05011
9017906206
main90179-06206
9017906314
main90179-06314
9017908275
main90179-08275
9018904118
main90189-04118
9046400620
main90464-00620
9046705063C0
main90467-05063C0
91631J0612
main91631-J0612
60 parts on this diagram · 1 diagram in section
