SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
61011BPANEL SUB-ASSY, SIDE, OUTER RH
61012BPANEL SUB-ASSY, SIDE, OUTER LH
61110APILLAR ASSY, FRONT BODY, OUTER RH
61120APILLAR ASSY, FRONT BODY, OUTER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61181ABRACKET, INSTRUMENT SIDE, RH
61321REINFORCEMENT, CENTER BODY PILLAR, UPPER RH
61322REINFORCEMENT, CENTER BODY PILLAR, UPPER LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61636EEXTENSION, QUARTER WHEEL HOUSE, LH
61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH
61644CPATCH, QUARTER WHEEL HOUSE, NO.1 LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61649APLATE, QUARTER WHEEL HOUSE
61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61676EREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61715CBRACKET, ROOF SIDE, RH
61716CBRACKET, ROOF SIDE, LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61825APLATE, NOISE CONTROL, NO.2
61826CPAD, NOISE SHUTTER, NO.3
62533DBRACKET, QUARTER TRIM, NO.1, RH
62534DBRACKET, QUARTER TRIM, NO.1, LH
62589EPAD, QUARTER PILLAR
63207JHOSE SUB-ASSY, REMOVE ROOF DRAIN, RH
63208GHOSE SUB-ASSY, REMOVE ROOF DRAIN, LH
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
67298ABRACKET, BACK DOOR STOPPER, RH
67299ABRACKET, BACK DOOR STOPPER, LH
8435
6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-22030
6786924010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-24010
7539524050CLIP, BACK DOOR MOULDING, NO.1
main75395-24050
7539724070CLIP, BACK DOOR MOULDING, NO.3
main75397-24070
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
827111B120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1B120
9011906005
main90119-06005
9011906098
main90119-06098
9011906355
main90119-06355
9011906601
main90119-06601
9014950064
main90149-50064
9015960507
main90159-60507
9016740045
main90167-40045
9017905011
main90179-05011
9017908200
main90179-08200
9018904207
main90189-04207
9018906123
main90189-06123
9043005013
main90430-05013
9046709114
main90467-09114
9046709178
main90467-09178
9048017028
main90480-17028
91631J0612
main91631-J0612

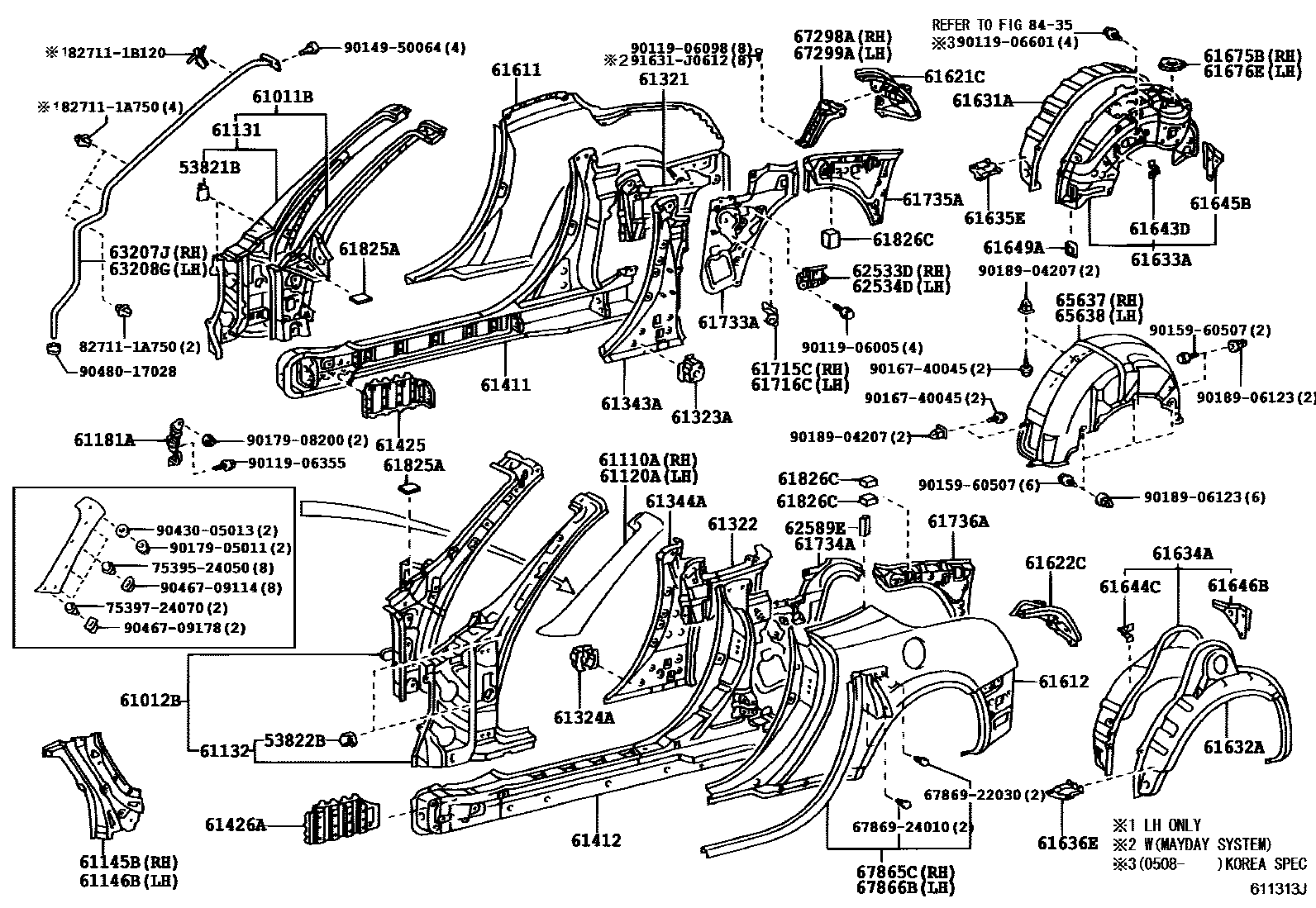

80 parts on this diagram · 2 diagrams in section
