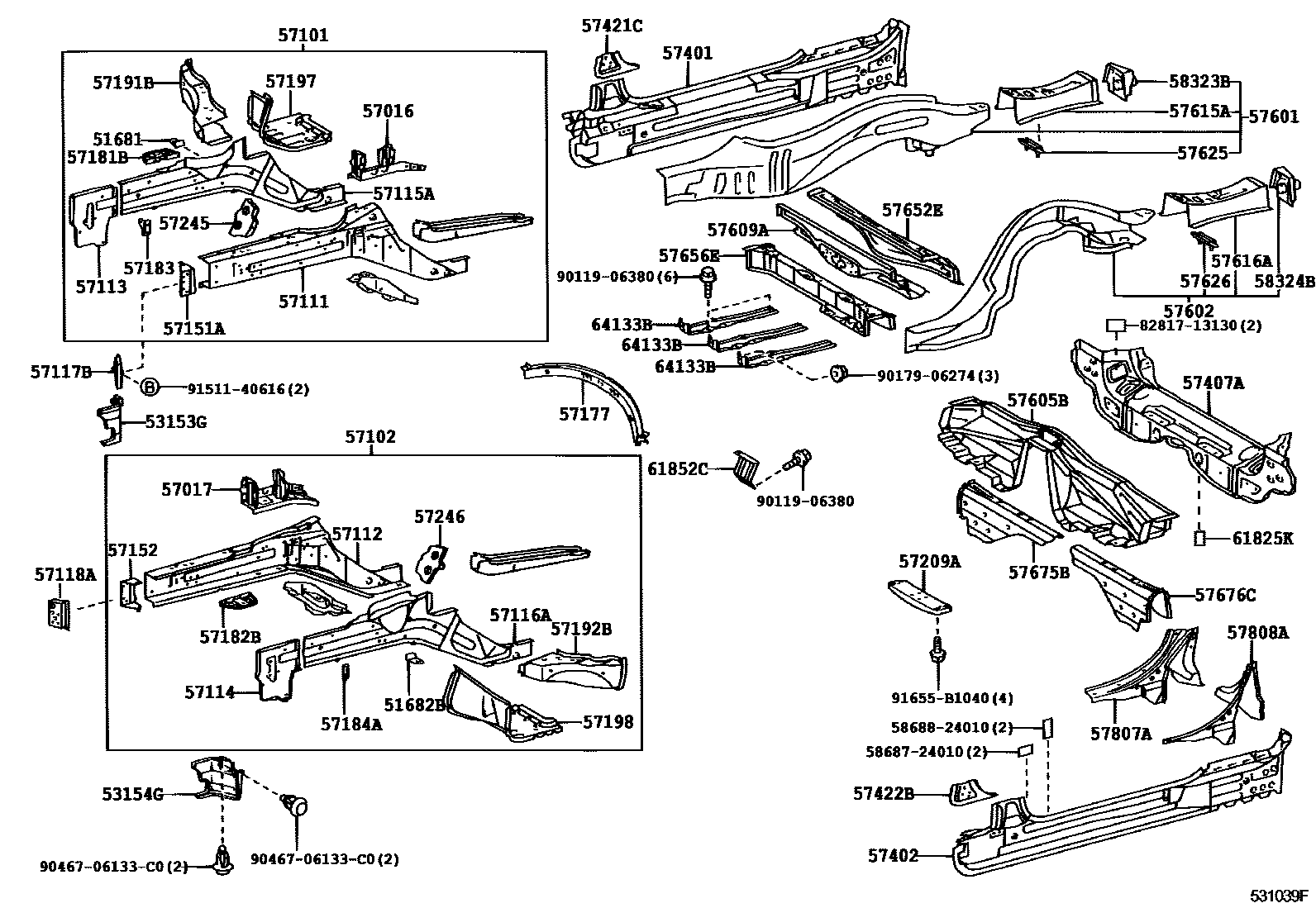

FLOOR SIDE MEMBER

0001 1 0002 1HOLE PLUG

51681BRACKET, FLEXIBLE HOSE

main51681-30070iUZZ40200101-200508

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-30050iUZZ40200101-200508

53153GGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-24010iUZZ40200101-200508

main53153-24020iUZZ40200508

53154GGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-24010iUZZ40200101-200508

main53154-24020iUZZ40200508

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30020iUZZ40200101-200508

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30020iUZZ40200101-200508

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-24090iUZZ40..5FC200101-200110

sub57101-24091

sub48809-30041

sub90119-10940

main57101-24091iUZZ40200110-200508

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-24070iUZZ40..5FC200101-200110

sub57102-24071

sub48807-30021

sub90119-10940

main57102-24071iUZZ40200110-200508

57111MEMBER, FRONT SIDE, RH

main57111-24050iUZZ40..5FC200101-200110

sub57111-24051

sub48809-30041

sub57181-24020

sub90119-10940

main57111-24051iUZZ40200110-200508

57112MEMBER, FRONT SIDE, LH

main57112-24050iUZZ40..5FC200101-200110

sub57112-24051

sub48807-30021

sub57182-30030

sub90119-10940

main57112-24051iUZZ40200110-200508

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-24040iUZZ40200101-200508

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-24040iUZZ40200101-200508

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-24050iUZZ40200101-200508

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30020iUZZ40200101-200508

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-24030iUZZ40200101-200508

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-24030iUZZ40200101-200508

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-24010iUZZ40200101-200508

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-24010iUZZ40200101-200508

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57177-24020iUZZ40200101-200508

57181BPLATE, FRONT SIDE MEMBER, NO.3 RH

main57181-30021iUZZ40..5FC200101-200110

sub57181-24020

main57181-30022iUZZ40200110-200508

57182BPLATE, FRONT SIDE MEMBER, NO.3 LH

main57182-30020iUZZ40..5FC200101-200110

sub57182-30030

main57182-30021iUZZ40200110-200508

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30010iUZZ40200101-200508

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30010iUZZ40200101-200508

57191BREINFORCEMENT, FRONT SIDE MEMBER, OUTER RH

main57191-30010iUZZ40200101-200508

57192BREINFORCEMENT, FRONT SIDE MEMBER, OUTER LH

main57192-30010iUZZ40200101-200508

57197BOX, TORQUE, FRONT RH

main57197-24030iUZZ40200101-200508

57198BOX, TORQUE, FRONT LH

main57198-24030iUZZ40200101-200508

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-30100iUZZ40200101-200508

57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH

main57245-30050iUZZ40200101-200508

57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH

main57246-30050iUZZ40200101-200508

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-24040iUZZ40200101-200508

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-24040iUZZ40200101-200508

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-24030iUZZ40200101-200508

main57407-24040iUZZ40200508

TAIWAN SPEC;KOREA SPEC

57421CPLATE, FLOOR SIDE RAIL, RH

main57421-24010iUZZ40200101-200508

57422BPLATE, FLOOR SIDE RAIL, LH

main57422-24010iUZZ40200101-200508

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14901iUZZ40200508

main57601-24905iUZZ40200101-200405

sub57601-24906

main57601-24906iUZZ40200405-200508

sub57601-14901

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-24903iUZZ40200101-200508

sub57602-24904

main57602-24905iUZZ40200508

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-24020iUZZ40200101-200508

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-24010iUZZ40200101-200508

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-24020iUZZ40200101-200508

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-24020iUZZ40200101-200508

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57625-24020iUZZ40200101-200508

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57625-24020iUZZ40200101-200508

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-24020iUZZ40200101-200508

57656EMEMBER, REAR FLOOR CROSS, NO.5

main57656-24010iUZZ40200101-200508

main57656-24011iUZZ40200508

57675BREINFORCEMENT, REAR FLOOR CROSS, NO.1 RH

main57675-24010iUZZ40200101-200508

57676CREINFORCEMENT, REAR FLOOR CROSS, NO.1 LH

main57676-24010iUZZ40200101-200508

57807AREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 RH

main57807-24010iUZZ40200101-200508

57808AREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 LH

main57808-24010iUZZ40200101-200508

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58303-24020iUZZ40200101-200508

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58304-24020iUZZ40200101-200508

61825KPAD, NOISE SHUTTER, NO.2

main61825-24010iUZZ40200101-200508

61852CBRACKET, QUARTER INNER COMPUTER, NO.2

main61852-24010iUZZ40200101-200508

64133BBRACKET, LUGGAGE COMPARTMENT TRAY, FRONT

main64133-24010iUZZ40200101-200508

5868724010PLATE, REAR FLOOR MAT SET SIDE, REAR RH

main58687-24010

5868824010

main58688-24010

8281713130PROTECTOR, WIRING HARNESS, NO.1

main82817-13130

9011906380

main90119-06380

9017906274

main90179-06274

9046706133C0

main90467-06133C0

9151140616

main91511-40616

91655B1040

main91655-B1040

62 parts on this diagram · 2 diagrams in section
