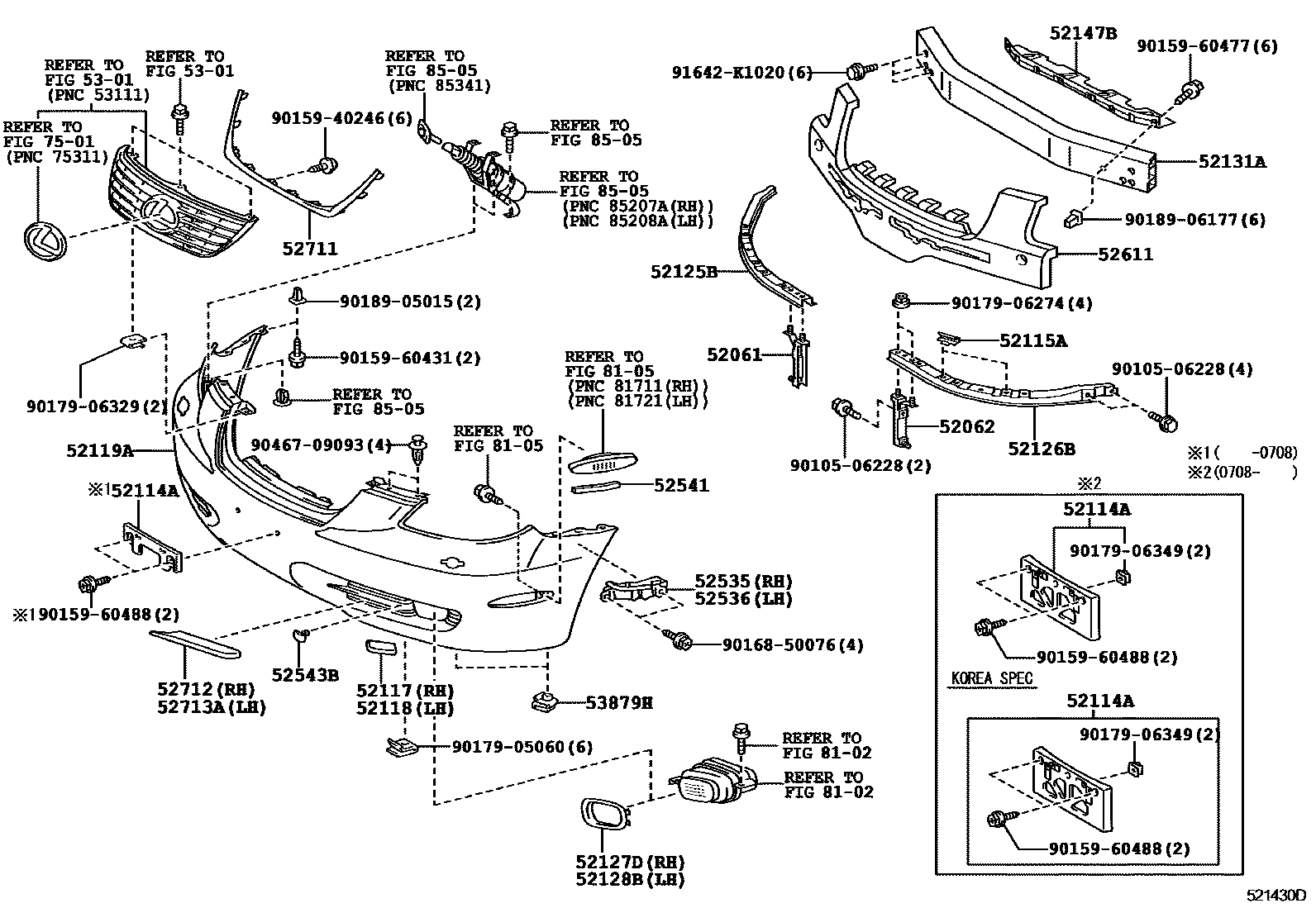

FRONT BUMPER & BUMPER STAY
52061SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52062SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
KOREA SPEC
52115ASUPPORT, FRONT BUMPER SIDE, RH
52117MOULDING, BUMPER SIDE, RH
52118MOULDING, BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
W(HEADLAMP CLEANER)
KOREA SPEC
52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH
52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52131AREINFORCEMENT, FRONT BUMPER
52147BBRACKET, FRONT BUMPER MOUNTING
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
52543BSEAL, FRONT BUMPER
52712MOULDING, FRONT BUMPER SIDE, RH
52713AMOULDING, FRONT BUMPER SIDE, LH
5301
53879HRETAINER, FRONT FENDER LINER
7501
8102
8105
8505
9010506228
main90105-06228
9015940246
main90159-40246
9015960431
main90159-60431
9015960477
main90159-60477
9015960488
main90159-60488
9016850076
main90168-50076
9017905060
main90179-05060
9017906274
main90179-06274
9017906329
main90179-06329
9017906349
main90179-06349
9018905015
main90189-05015
9018906177
main90189-06177
9046709093
main90467-09093
91642K1020
main91642-K1020
41 parts on this diagram · 2 diagrams in section
