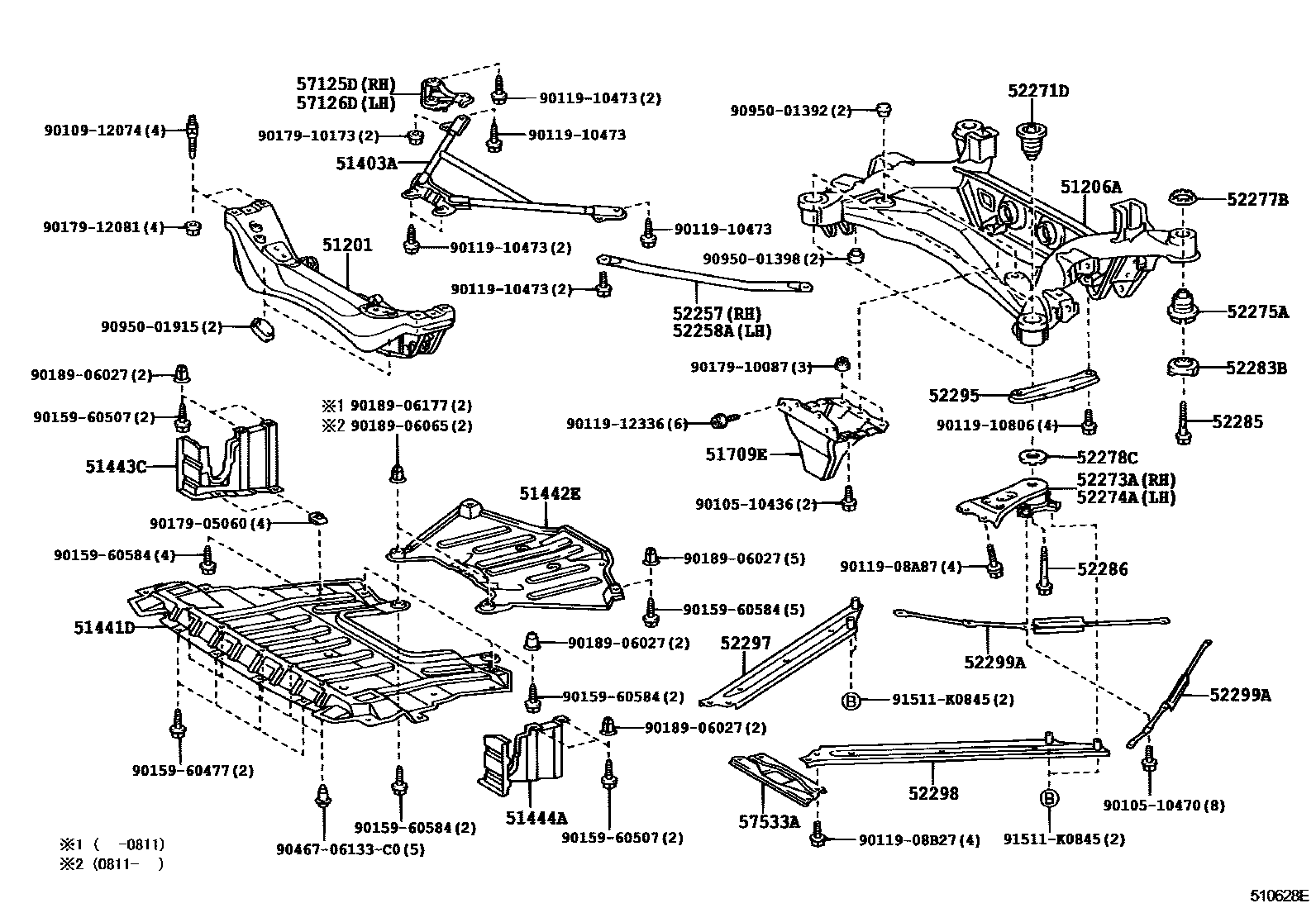

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30110iUZZ40200101-200508

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30061iUZZ40200101-200812

sub51206-30062

main51206-30062iUZZ40200901

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-24010iUZZ40200101-200508

51441DCOVER, ENGINE UNDER

main51410-24010iUZZ40200811

sub51441-24040

main51441-24040iUZZ40200101-200811

51442ECOVER, ENGINE UNDER, NO.2

main51442-24020iUZZ40200101-200503

sub51442-24021

main51442-24021iUZZ40200503-200907

sub51442-24022

main51442-24022iUZZ40200908

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30130iUZZ40..5FC200101-200111

sub51443-30131

main51443-30131iUZZ40200111-200508

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30160iUZZ40..5FC200101-200111

sub51444-30161

main51444-30161iUZZ40200111-200508

51709EBRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-24020iUZZ40200101-200508

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-24010iUZZ40200101-200508

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-24010iUZZ40200101-200508

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-24050iUZZ40..5FC200101-200107

sub52271-24060

main52271-24060iUZZ40..5FC200107-200202

main52271-24060iUZZ40200508

KOREA SPEC

main52271-30080iUZZ40200202-200508

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-24010iUZZ40200101-200508

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-24010iUZZ40200101-200508

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30070iUZZ40200101-200508

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30010iUZZ40200101-200508

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30020iUZZ40200101-200508

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30050iUZZ40200101-200508

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iUZZ40200101-200508

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010iUZZ40200101-200507

main52286-53020iUZZ40200507-200508

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30020iUZZ40200101-200508

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-24010iUZZ40200101-200508

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-24010iUZZ40200101-200508

52299APLATE, REAR END BODY MOUNTING SET

main52108-24010iUZZ40200101-200508

RH

main52109-24010iUZZ40200101-200508

LH

57125DPLATE, STRUT BAR BRACKET, RH

main57125-30031iUZZ40200101-200508

57126DPLATE, STRUT BAR BRACKET, LH

main57126-30011iUZZ40200101-200508

57533ABRACE, FRONT FLOOR, CENTER

main57533-24010iUZZ40200101-200508

9010510436

main90105-10436

9010510470

main90105-10470

9010912074

main90109-12074

9011908A87

main90119-08A87

9011908B27

main90119-08B27

9011910473

main90119-10473

9011910806

main90119-10806

9011912336

main90119-12336

9015960477

main90159-60477

9015960507

main90159-60507

9015960584

main90159-60584

9017905060

main90179-05060

9017910087

main90179-10087

9017910173

main90179-10173

9017912081

main90179-12081

9018906027

main90189-06027

9018906065

main90189-06065

9018906177

main90189-06177

9046706133C0

main90467-06133C0

9095001392

main90950-01392

9095001398

main90950-01398

9095001915

main90950-01915

91511K0845

main91511-K0845

49 parts on this diagram · 1 diagram in section
