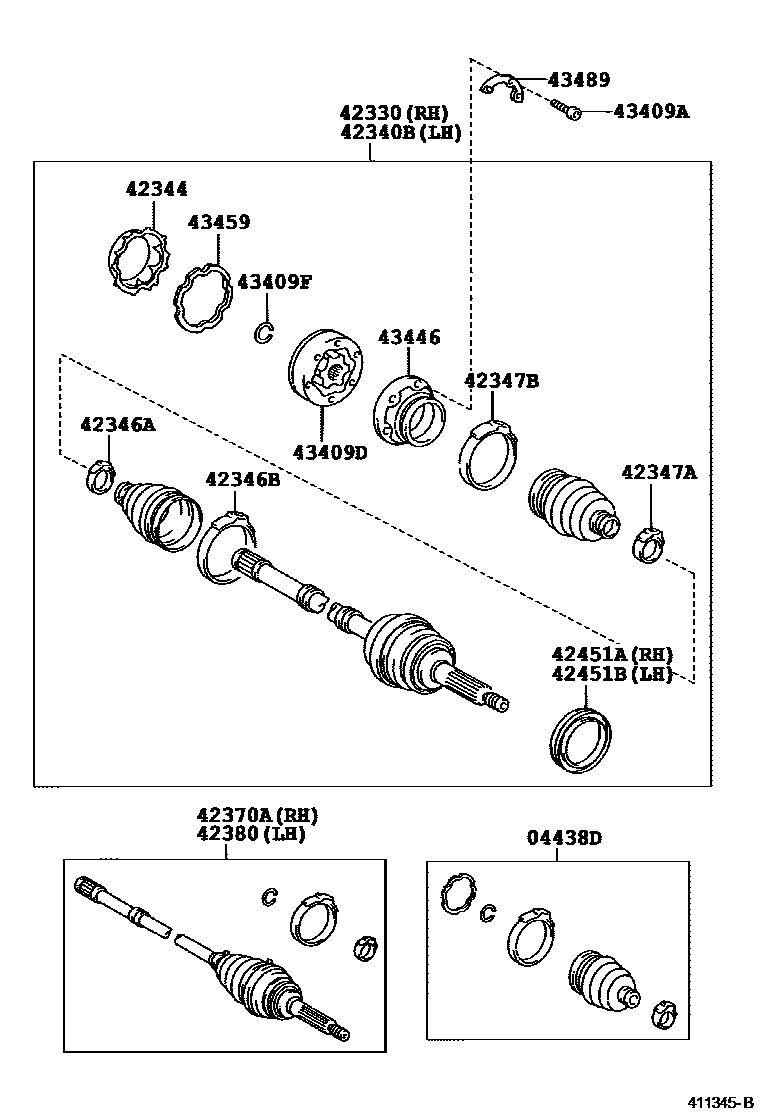

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-24031iUZZ40200101-200508

sub04439-22020

42330SHAFT ASSY, REAR DRIVE, RH

main42330-24020iUZZ40200101-200508

main42330-24040iUZZ40200508-201007

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-24050iUZZ40200101-200508

main42340-24070iUZZ40200508-201007

42344COVER, REAR AXLE INBOARD JOINT END

main42344-50011iUZZ40200101-200508

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01837iUZZ40200101-200508

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01838iUZZ40200101-200508

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01837iUZZ40200101-200508

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01838iUZZ40200101-200508

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29109iUZZ40200101-200508

sub42370-29705

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-29029iUZZ40200101-200508

sub42380-29235

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42453-50010iUZZ40200101-200508

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42453-50010iUZZ40200101-200508

43409ABOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90110-12003iUZZ40200101-200508

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-24010iUZZ40200101-200508

43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90520-26028iUZZ40200101-200508

43446COVER, REAR AXLE INBOARD JOINT

main43446-24020iUZZ40200101-200508

43459GASKET, REAR AXLE INBOARD JOINT END COVER

main43459-50011iUZZ40200101-200508

43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

main43489-50010iUZZ40200101-200508

18 parts on this diagram · 3 diagrams in section
