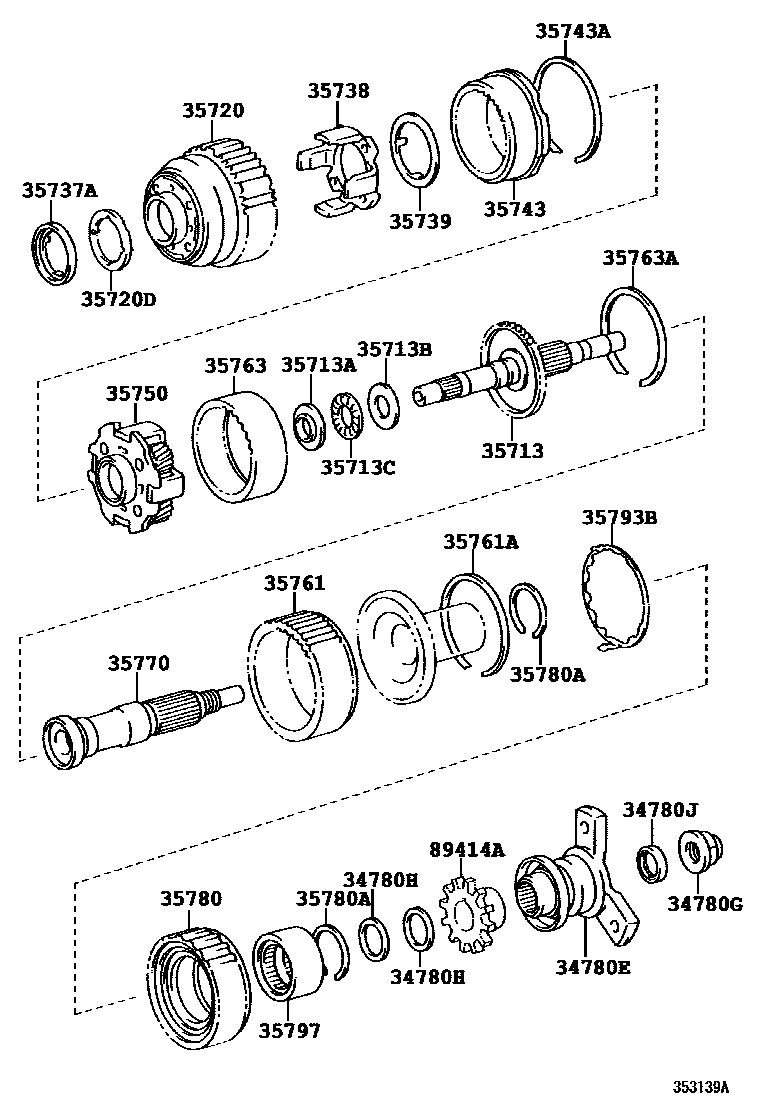

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)
34780GNUT (FOR ATM FRANGE YOKE)
34780HWASHER, PLATE (FOR ATM FLANGE YOKE)
34780JSEAL, TYPE V OIL (FOR FRANGE YOKE)
35713ARACE, THRUST BEARING, NO.1 (FOR INTERMEDIATE SHAFT)
35713BRACE, THRUST BEARING, NO.2 (FOR INTERMEDIATE SHAFT)
35713CBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35770SHAFT ASSY, OUTPUT
35780CLUTCH ASSY, 1 WAY NO.2
35780ARING, SNAP (FOR 1 WAY CLUTCH)
35793BRETAINER, 1 WAY CLUTCH
35797RACE, 1 WAY CLUTCH INNER
89414AROTOR, SENSOR
26 parts on this diagram · 2 diagrams in section
