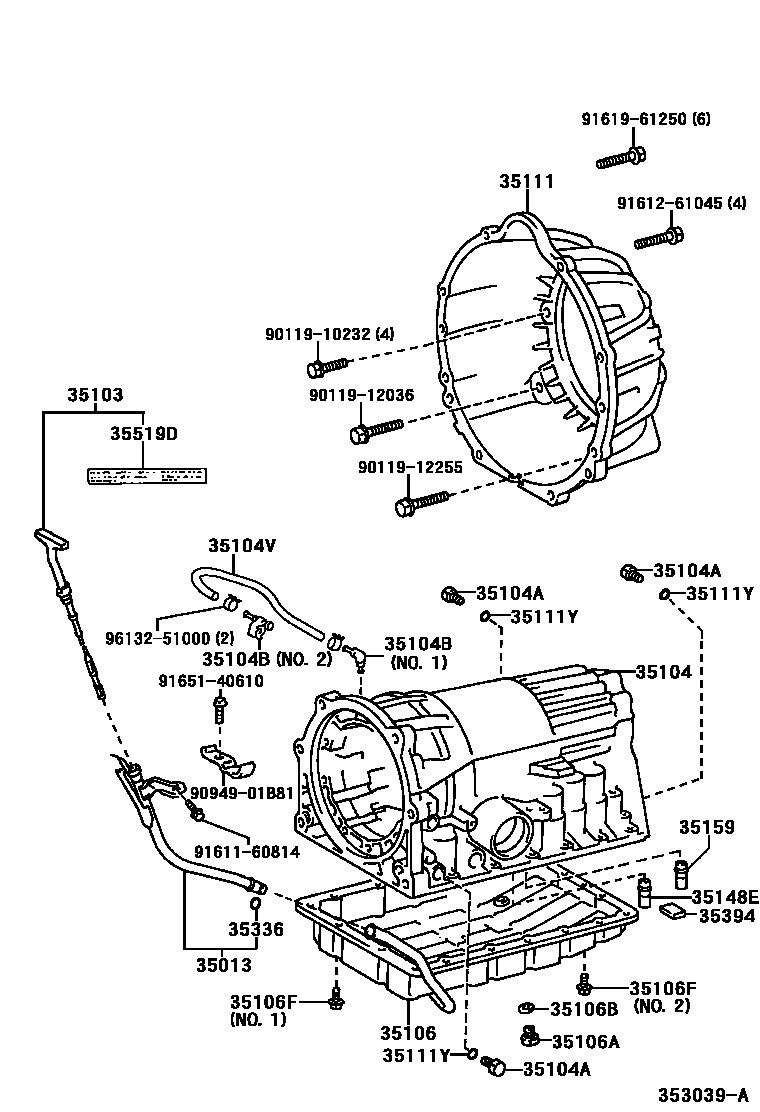

TRANSMISSION CASE & OIL PAN (ATM)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104APLUG, AUTOMATIC TRANSMISSION CASE
35104BPLUG, BREATHER, NO.1 (ATM)
NO.1
NO.2
35104VHOSE (FOR BREATHER PLUG)
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106APLUG SUB-ASSY, DRAIN (ATM)
NO.1
NO.2
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35148EGASKET, BRAKE DRUM, NO.2
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
9011910232
main90119-10232
9011912036
main90119-12036
9011912255
main90119-12255
9094901B81
main90949-01B81
9161160814
main91611-60814
9161261045
main91612-61045
9161961250
main91619-61250
9165140610
main91651-40610
9613251000
main96132-51000
26 parts on this diagram · 2 diagrams in section
