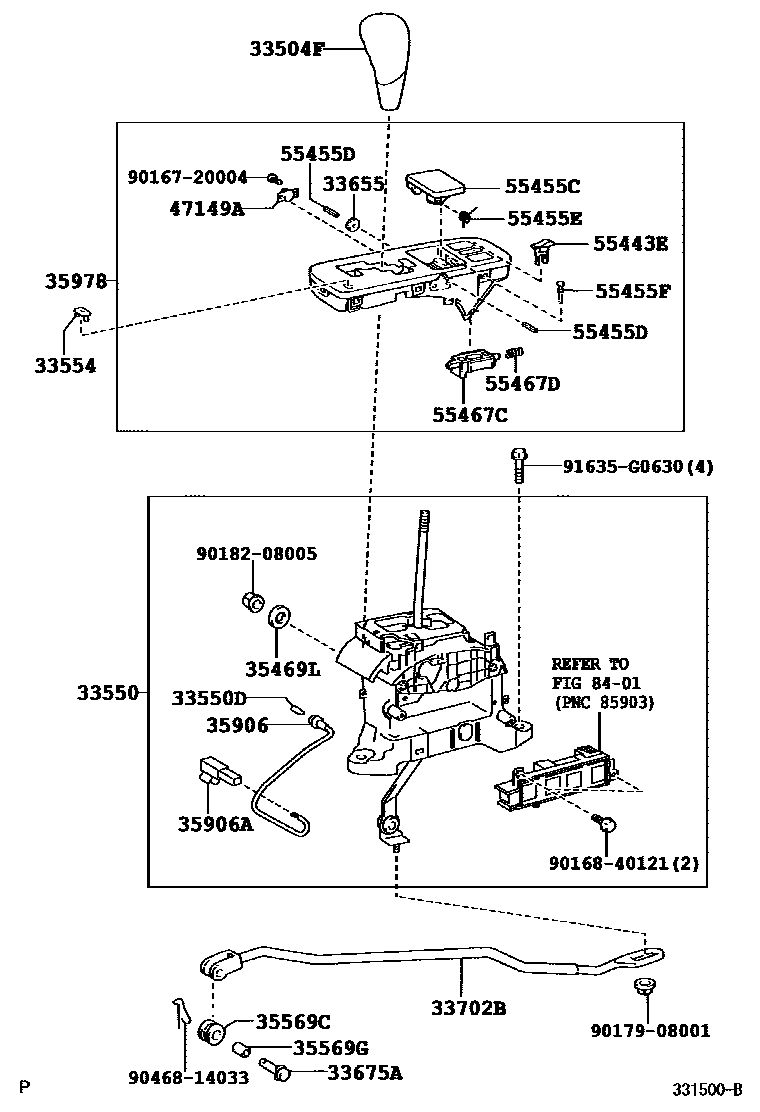

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24080-D0iUZZ40200111-200112

NEIMAN MARCUS X'MAS EDITION(USA),RED,TRIM21

main33504-24110-B0iUZZ40200101-200508

ECRU BROWN,TRIM0#

main33504-24110-B1iUZZ40200608-200611

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.GRAY,TRIM33

main33504-24110-B1iUZZ40200808-200809

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.GRAY,TRIM24

main33504-24110-E1iUZZ40200708-200711

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),DK.BROWN,TRIM04

main33504-24110-E1iUZZ40200508

DK.BROWN,TRIM42

main33504-24120-E0iUZZ40200508

MD.BROWN,TRIM00,20,50

main33504-24120-E0iUZZ40200101-200508

MD.BROWN,TRIM20,21

main33504-30330-A0iUZZ40200308-200311

PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),BLACK,TRIM0#

main33504-30330-C0iUZZ40200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-24200iUZZ40..5FC200101-200105

main33550-24201iUZZ40200105-200508

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iUZZ40200101-200508

14V 1.4W

main90981-11018iUZZ40200508

12V 1.2W W/O SOCKET

33554CAP, SHIFT LEVER

main33554-24030iUZZ40200101-200508

main33554-24040iUZZ40200508

33655GEAR, SHIFT LEVER, NO.1

main33655-24010iUZZ40200104-200508

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iUZZ40200508

main33726-35010iUZZ40200101-200508

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-50060iUZZ40200101-200508

main33702-50070iUZZ40200508

35469LSPACER, SHIFT LEVER

main94623-10800iUZZ40200105-200508

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iUZZ40200101-200508

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iUZZ40200101-200508

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-24020iUZZ40200101-200508

main35906-24050iUZZ40200508

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-11967iUZZ40200101-200508

35978INDICATOR, SHIFT POSITION

main35978-24020iUZZ40200101-200508

main35978-24050iUZZ40200508

47149ADAMPER, RETURN SPRING

main47149-24020iUZZ40200104-200508

55443EKNOB, SHIFT POSITION INDICATOR

main55443-24010iUZZ40200104-200508

main55443-24020iUZZ40200508

55455CPANEL, COIN BOX, NO.1

main55455-24040iUZZ40200104-200508

main55455-24050iUZZ40200508

55455DPIN, STRAIGHT

main90250-03106iUZZ40200104-200508

55455ESPRING, TORSION(FOR COIN BOX PANEL)

main90508-04009iUZZ40200104-200508

55455FPIN, STRAGHT(FOR COIN BOX PANEL)

main90541-02001iUZZ40200104-200508

55467CLOCK, COIN BOX

main55467-24040iUZZ40200104-200508

55467DSPRING, COMPRESSION(FOR COIN BOX LOCK)

main90501-05060iUZZ40200104-200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016720004

main90167-20004

9016840121

main90168-40121

9017908001

main90179-08001

9018208005

main90182-08005

9046814033

main90468-14033

91635G0630

main91635-G0630

28 parts on this diagram · 2 diagrams in section
