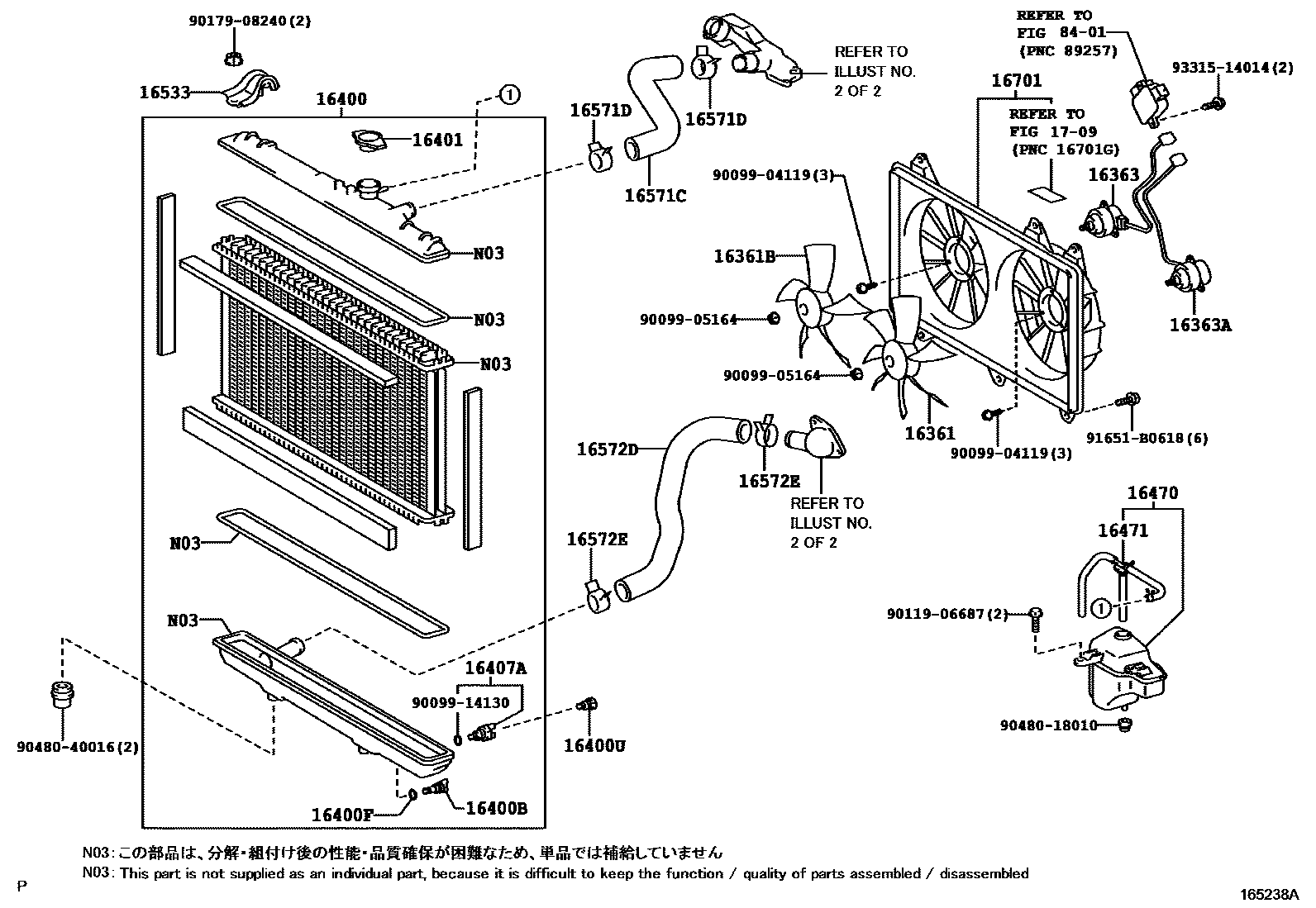

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16361FAN

main16361-50090i3UZFE..UZZ40200101-200508

16361BFAN, NO.2

main16361-50100i3UZFE..UZZ40200101-200508

16363MOTOR, COOLING FAN

main16363-50050i3UZFE..UZZ40..5FC200101-200504

sub16363-50070

main16363-50070i3UZFE..UZZ40200504-200508

16363AMOTOR, COOLING FAN, NO.2

main16363-20300i3UZFE..UZZ40200504-200508

main16363-50060i3UZFE..UZZ40..5FC200101-200504

sub16363-20300

16400RADIATOR ASSY

main16400-50280i3UZFE..UZZ40200101-200508

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i3UZFE..UZZ40200101-200508

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i3UZFE..UZZ40200101-200508

16400UPLUG, STRAIGHT SCREW W/HEAD(FOR RADIATOR)

main90341-16016i3UZFE..UZZ40200101-200508

16401CAP SUB-ASSY, RADIATOR

main16401-28430i3UZFE..UZZ40200504-200806

sub16401-31480

main16401-31480i3UZFE..UZZ40200807

main16401-62100i3UZFE..UZZ40..5FC200101-200504

sub16401-31520

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i3UZFE..UZZ40200101-200508

16470TANK ASSY, RADIATOR RESERVE

main16470-50120i3UZFE..UZZ40200101-200508

16471CAP SUB-ASSY, RESERVE TANK

main16405-50040i3UZFE..UZZ40200101-200508

16533SUPPORT, RADIATOR, UPPER

main16505-50080i3UZFE..UZZ40200101-200508

16571CHOSE, RADIATOR, NO.1

main16571-50190i3UZFE..UZZ40200101-200508

16571DCLIP, RADIATOR HOSE, NO.1

main90466-41003i3UZFE..UZZ40200101-200307

main90466-41007i3UZFE..UZZ40200308-200508

16572DHOSE, RADIATOR, NO.2

main16572-50130i3UZFE..UZZ40200101-200508

16572ECLIP, RADIATOR HOSE, NO.2

main90466-41003i3UZFE..UZZ40200101-200307

main90466-41007i3UZFE..UZZ40200308-200508

16701SHROUD SUB-ASSY, FAN

main16711-50160i3UZFE..UZZ40200101-200508

1709

8401

9009904119

main90099-04119

9009905164

main90099-05164

9009914130

main90099-14130

9011906687

main90119-06687

9017908240

main90179-08240

9048018010

main90480-18010

9048040016

main90480-40016

91651B0618

main91651-B0618

9331514014

main93315-14014
