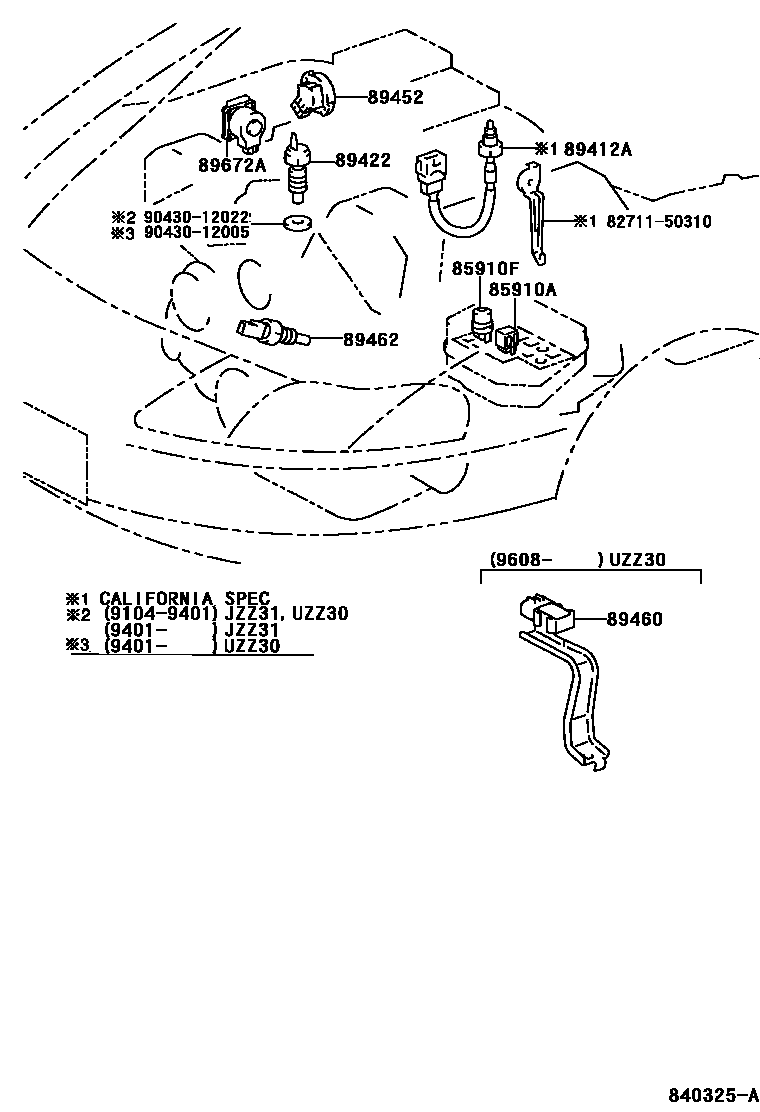

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040iUZZ30199104-199401

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iJZZ31,UZZ30199104-199401

main90987-02009iJZZ31,UZZ30199401-199405

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-24030iJZZ31..USA199108-199401

sub89412-24031

main89412-24031iJZZ31199401-199709

main89412-34010iUZZ30199404-199709

main89412-50010iUZZ30199104-199404

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iJZZ31,UZZ30199104

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12050iUZZ30199104-199210

sub89452-33010

main89452-22090iJZZ31,UZZ30199408-199709

main89452-30150iJZZ31199709

main89452-33010iJZZ31199108-199408

sub89452-22090

sub89452-32060

89460SENSOR ASSY, VAPOR PRESSURE

main89460-24010iJZZ31,UZZ30199608-199908

main89460-50020iJZZ31,UZZ30199908

89462SWITCH, START INJECTOR TIME

main89462-20020iUZZ30199104-199401

89672AMOTOR, THROTTLE CONTROL

main89672-30010iUZZ30199709

sub89672-47010

main89672-30020iJZZ31199709

8271150310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50310

9043012005

main90430-12005

9043012022

main90430-12022

11 parts on this diagram · 3 diagrams in section
