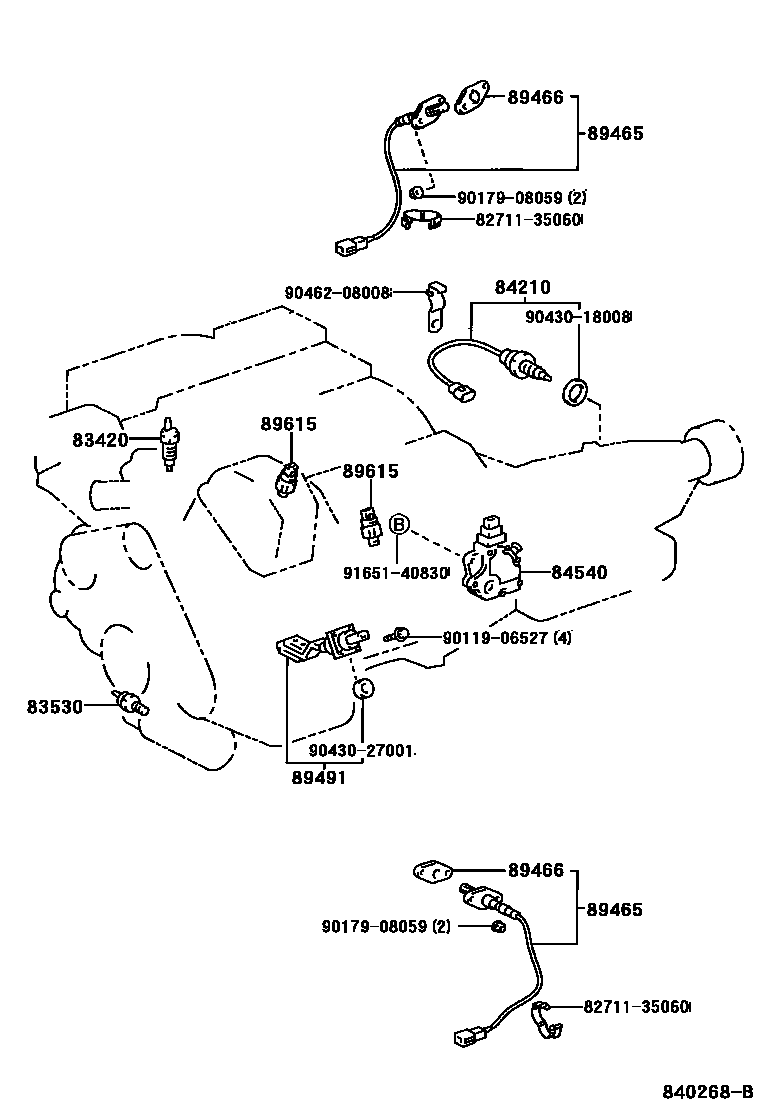

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL SWITCH 0006 1COWL SIDE RH 0007 1COWL SIDE LH 0008 1COMBINATION SWITCH 0009 1REAR 0010 1DOOR,SEAT 0011 1ROOF,FLOOR,SEAT

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iUZZ30199104-199210

main83420-16040iJZZ31199401

main83420-16050iUZZ30199210-199401

main83420-20020iJZZ31199108-199211

main83420-20040iUZZ30199401

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iJZZ31199211-199401

DENSO

main83530-28020iJZZ31199801

DENSO

main83530-30080iJZZ31,UZZ30199104-199208

sub83530-60040

main83530-30090iUZZ30199712-199801

main83530-60020iJZZ31199712

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iJZZ31..5F199111-199709

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZZ31,UZZ30..ATM199401

main84540-50010iJZZ31,UZZ30..4FC199104-199401

89465SENSOR, OXYGEN

main89465-14120×2iJZZ31199508-199709

FRONT

main89465-14140×2iJZZ31199401-199508

CALIFORNIA SPEC,FRONT

main89465-14200iJZZ31199709

FRONT,NO.1

main89465-14220iJZZ31199709

REAR

main89465-19625iJZZ31199401-199508

FRONT

main89465-24050×2iUZZ30199104-199508

FRONT

main89465-24060iUZZ30199104-199508

REAR LH

main89465-24120iUZZ30199104-199508

REAR RH

main89465-24160iUZZ30199508-199701

REAR LH

main89465-24170×2iUZZ30199709

REAR RH

main89465-24200iJZZ31199709

FRONT,NO.2

main89465-29505×2iJZZ31199108-199401

FRONT

main89465-29525iJZZ31..USA199108-199508

CALIFORNIA SPEC,REAR

main89465-29895iJZZ31199508-199709

REAR

main89465-30470iJZZ31199709

FRONT,NO.3

main89465-50060×2iUZZ30199508

FRONT

sub89465-50150

89466GASKET, OXYGEN SENSOR

main89466-20020iJZZ31199401-199508

CALIFORNIA SPEC

89491SENSOR, ENGINE OIL LEVEL

main89491-14050iJZZ31199108-199305

main89491-14070iJZZ31199305

main89491-24010iUZZ30199104-199709

main89491-24011iUZZ30199709

89615SENSOR, KNOCK CONTROL

main89615-12040×2iUZZ30199709

main89615-12050×2iJZZ31199709

sub89615-12090

main89615-22040×2iJZZ31199401-199709

main89615-50010×2iUZZ30199608-199709

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9011906527

main90119-06527

9017908059

main90179-08059

9043018008

main90430-18008

9043027001

main90430-27001

9046208008

main90462-08008

9165140830

main91651-40830

15 parts on this diagram · 11 diagrams in section
