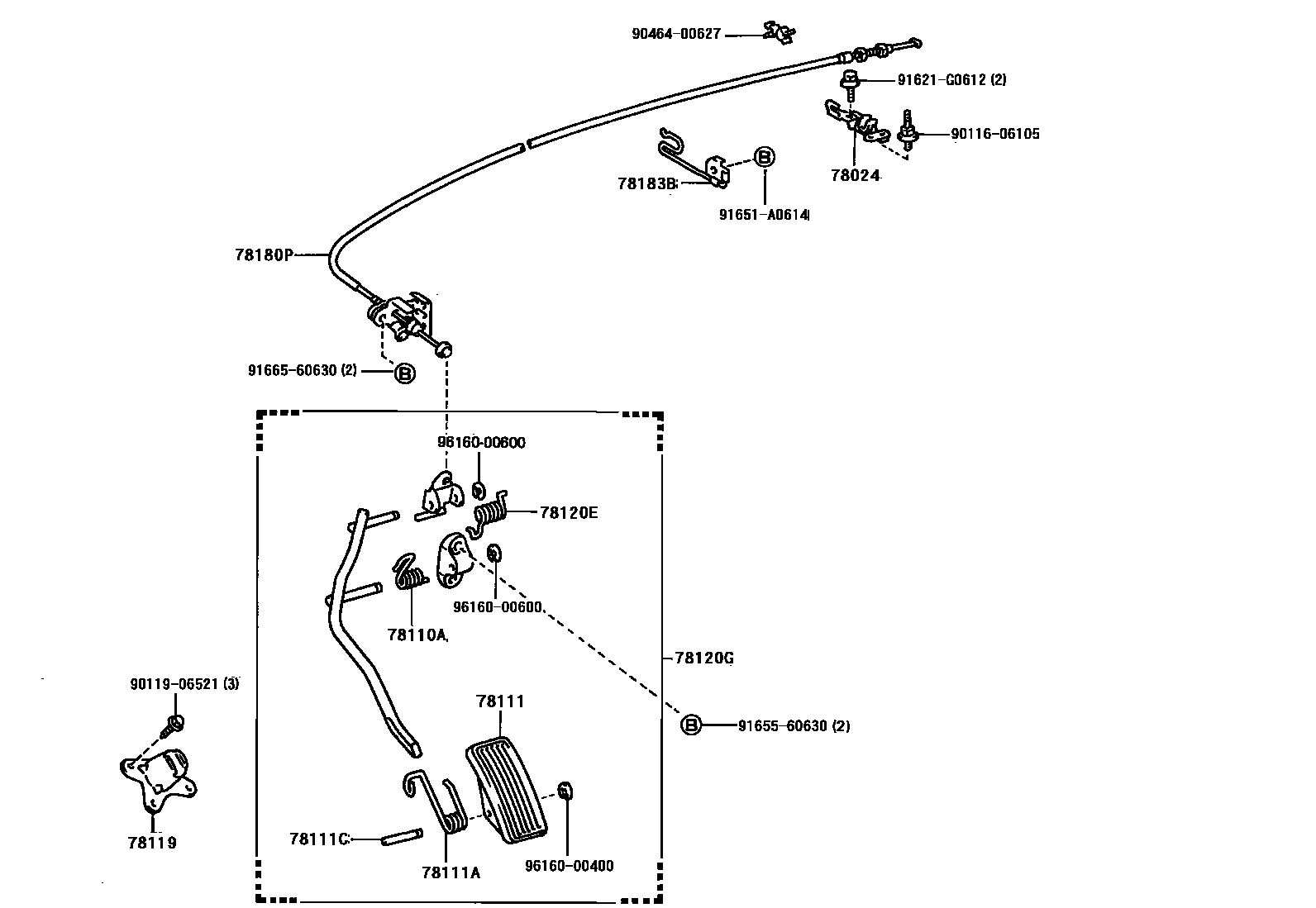

ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-24020iJZZ31..5F199111-199709

main78024-24030iJZZ31..4FC199108-199512

sub78024-24031

main78024-24031iJZZ31..4FC199512-199709

main78024-50010iUZZ30199104-199709

main78024-50020iUZZ30199709

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060iJZZ31,UZZ30199104-199709

main90508-26036iJZZ31,UZZ30199709

78111PEDAL, ACCELERATOR

main78111-12100iJZZ31,UZZ30199104

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088iJZZ31,UZZ30..4FC199104-199401

main90508-23121iJZZ31..5F199111-199401

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iJZZ31,UZZ30199104

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-24020iJZZ31..5F199111-199401

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-29022iJZZ31,UZZ30199104-199401

78120GROD ASSY, ACCELERATOR PEDAL

main78120-24050iJZZ31,UZZ30..4FC199104-199401

main78120-24070iJZZ31..5F199111-199709

main78120-24071iJZZ31,UZZ30199709

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-24070iJZZ31..5F199111-199709

main78180-24130iJZZ31..4FC199108-199709

sub78180-24131

main78180-24131iJZZ31199709-199908

main78180-24132iJZZ31199908

main78180-24150iUZZ30199104-199508

sub78180-24151

main78180-24151iUZZ30199508-199709

main78180-24180iUZZ30199709

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-24030iJZZ31199108

main78183-30140iUZZ30199709

9011606105

main90116-06105

9011906521

main90119-06521

9046400627

main90464-00627

91621G0612

main91621-G0612

91651A0614

main91651-A0614

9165560630

main91655-60630

9166560630

main91665-60630

9616000400

main96160-00400

9616000600

main96160-00600

19 parts on this diagram · 1 diagram in section
