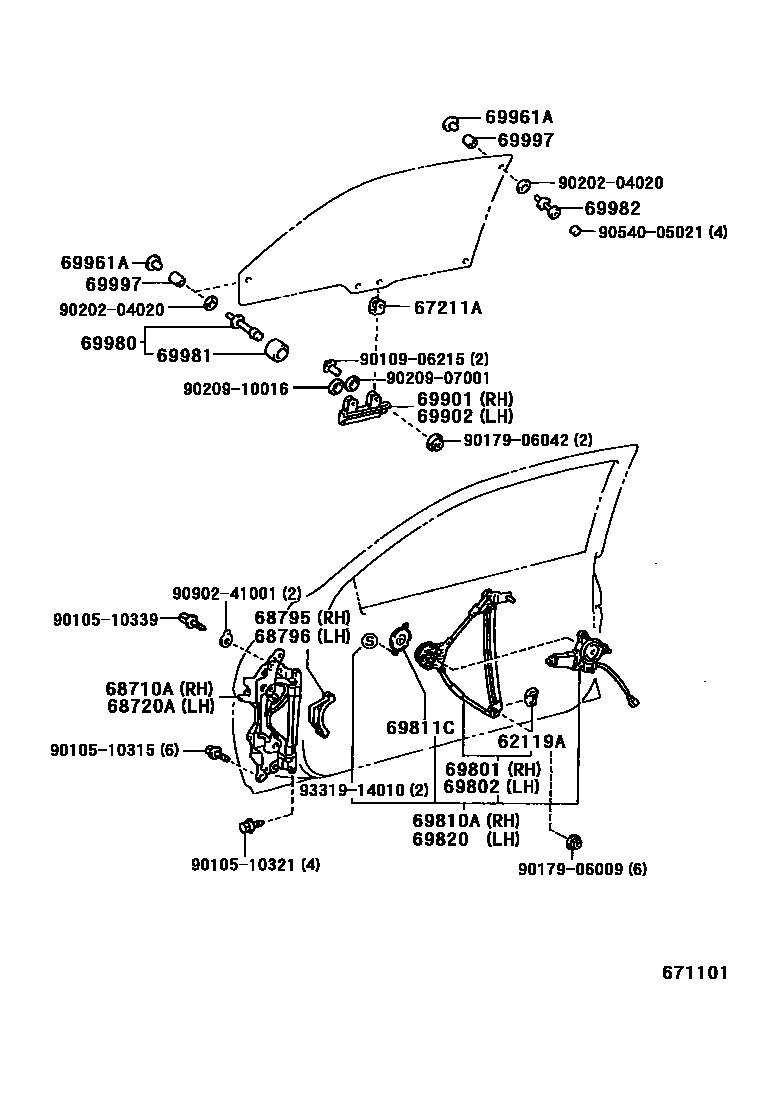

FRONT DOOR WINDOW REGULATOR & HINGE

62119ACUSHION, DOOR GLASS DOWN STOP

main68119-24010iJZZ31,UZZ30199104

RH

main68119-24020iJZZ31,UZZ30199104

LH

67211ASTOP, FRONT DOOR WINDOW, UPPER

main69915-24010iJZZ31,UZZ30199104

68710AHINGE ASSY, FRONT DOOR, RH

main68710-24030iJZZ31,UZZ30199104-199308

sub68710-24031

main68710-24031iJZZ31,UZZ30199308

68720AHINGE ASSY, FRONT DOOR, LH

main68720-24030iJZZ31,UZZ30199104-199308

sub68720-24031

main68720-24031iJZZ31,UZZ30199308

68795COVER, DOOR HINGE, NO.1 RH

main68795-24020iJZZ31,UZZ30199104

68796COVER, DOOR HINGE, NO.1 LH

main68796-24020iJZZ31,UZZ30199104

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-24030iJZZ31,UZZ30199104-199307

sub69801-24033

main69801-24031iJZZ31,UZZ30199307-199401

sub69801-24032

main69801-24040iJZZ31,UZZ30199401-199505

sub69801-24041

main69801-24041iJZZ31,UZZ30199505

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-24030iJZZ31,UZZ30199104-199307

sub69802-24033

main69802-24031iJZZ31,UZZ30199307-199401

sub69802-24032

main69802-24040iJZZ31,UZZ30199401-199505

sub69802-24041

main69802-24041iJZZ31,UZZ30199505

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-24040iJZZ31,UZZ30199104-199307

main69810-24041iJZZ31,UZZ30199307-199401

main69810-24050iJZZ31,UZZ30199401

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-24010iJZZ31,UZZ30199505

RH

main69813-32030iJZZ31,UZZ30199104-199505

main69814-24010iJZZ31,UZZ30199505

LH

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-24040iJZZ31,UZZ30199104-199307

main69820-24041iJZZ31,UZZ30199307-199401

main69820-24050iJZZ31,UZZ30199401

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-24020iJZZ31,UZZ30199104

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-24010iJZZ31,UZZ30199104

69961ARETAINER, FRONT DOOR GLASS

main69961-50020iJZZ31,UZZ30199104-199608

69980ROLLER ASSY, FRONT DOOR GLASS GUIDE

main69980-24020iJZZ31,UZZ30199104-199608

69981ROLLER, FRONT DOOR GLASS GUIDE

main69981-14020iJZZ31,UZZ30199104-199608

69982ROLLER, FRONT DOOR GLASS GUIDE, NO.2

main69982-50020iJZZ31,UZZ30199104-199608

69997SPACER, FRONT DOOR GLASS GUIDE

main69997-24010iJZZ31,UZZ30199104-199608

9010510315

main90105-10315

9010510321

main90105-10321

9010510339

main90105-10339

9010906215

main90109-06215

9017906009

main90179-06009

9017906042

main90179-06042

9020204020

main90202-04020

9020907001

main90209-07001

9020910016

main90209-10016

9054005021

main90540-05021

9090241001

main90902-41001

9331914010

main93319-14010

30 parts on this diagram · 1 diagram in section
