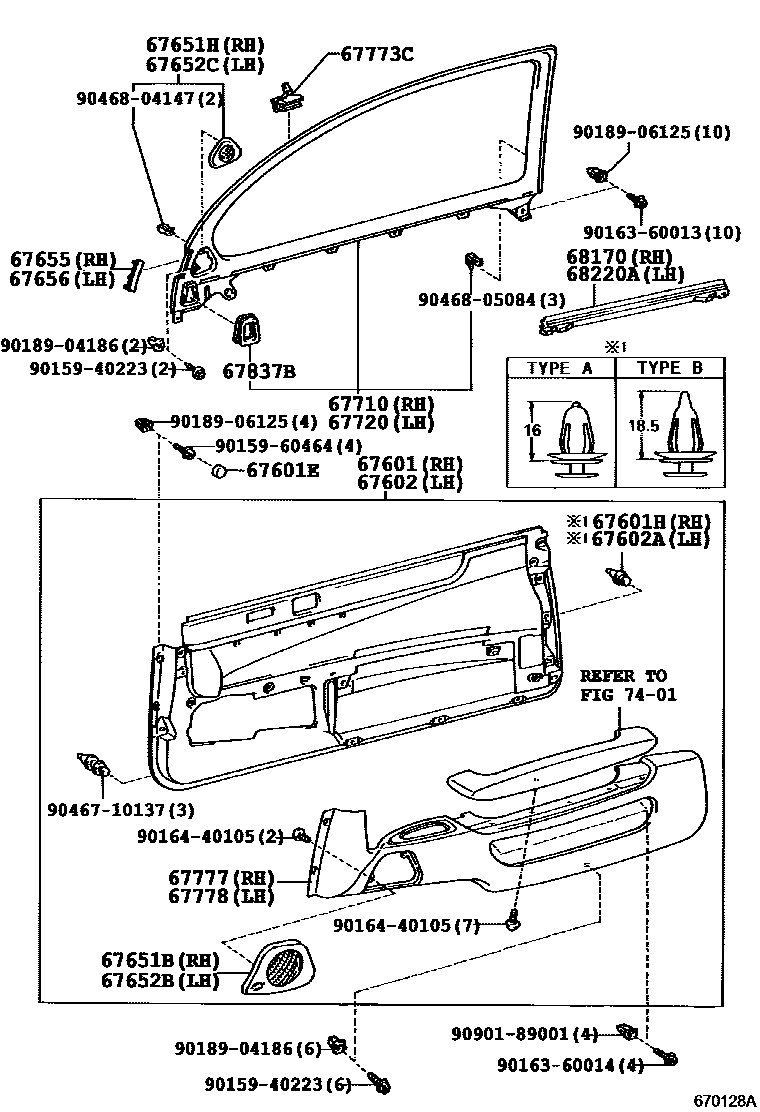

FRONT DOOR PANEL & GLASS
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
IVORY,TRIM0#
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
W(LEATHER SEAT),IVORY,TRIM0#
BLACK,TRIM2#
SPRUCE,TRIM6#
IVORY,TRIM08
IVORY,TRIM07
BLACK,TRIM2#
LEATHER,IVORY,TRIM0#
BLACK,TRIM2#
67601ECAP(FOR FRONT DOOR TRIM BOARD)
67601HRETAINER, DOOR TRIM, RH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
IVORY,TRIM0#
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
W(LEATHER SEAT),IVORY,TRIM0#
BLACK,TRIM2#
SPRUCE,TRIM6#
IVORY,TRIM07
IVORY,TRIM08
BLACK,TRIM2#
LEATHER,IVORY,TRIM0#
BLACK,TRIM2#
67602ARETAINER, DOOR TRIM, LH
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
67651BGRILLE, SPEAKER DOOR, RH
67651HGRILLE, SPEAKER DOOR, RH
67652BGRILLE, SPEAKER DOOR, LH
67652CGRILLE, SPEAKER DOOR, LH
67655GARNISH, FRONT DOOR TRIM, RH
67656GARNISH, DOOR TRIM, LH
67710PANEL ASSY, FRONT DOOR TRIM, UPPER RH
67720PANEL ASSY, FRONT DOOR TRIM, UPPER LH
67773CCLIP, DOOR TRIM UPPER RETAINER, NO.1
67777POCKET, FRONT DOOR TRIM, RH
67778POCKET, FRONT DOOR TRIM, LH
67837BSEAL, FRONT DOOR DUST PROOF
RH
LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
7401
9015940223
main90159-40223
9015960464
main90159-60464
9016360013
main90163-60013
9016360014
main90163-60014
9016440105
main90164-40105
9018904186
main90189-04186
9018906125
main90189-06125
9046710137
main90467-10137
9046804147
main90468-04147
9046805084
main90468-05084
9090189001
main90901-89001
31 parts on this diagram · 2 diagrams in section
