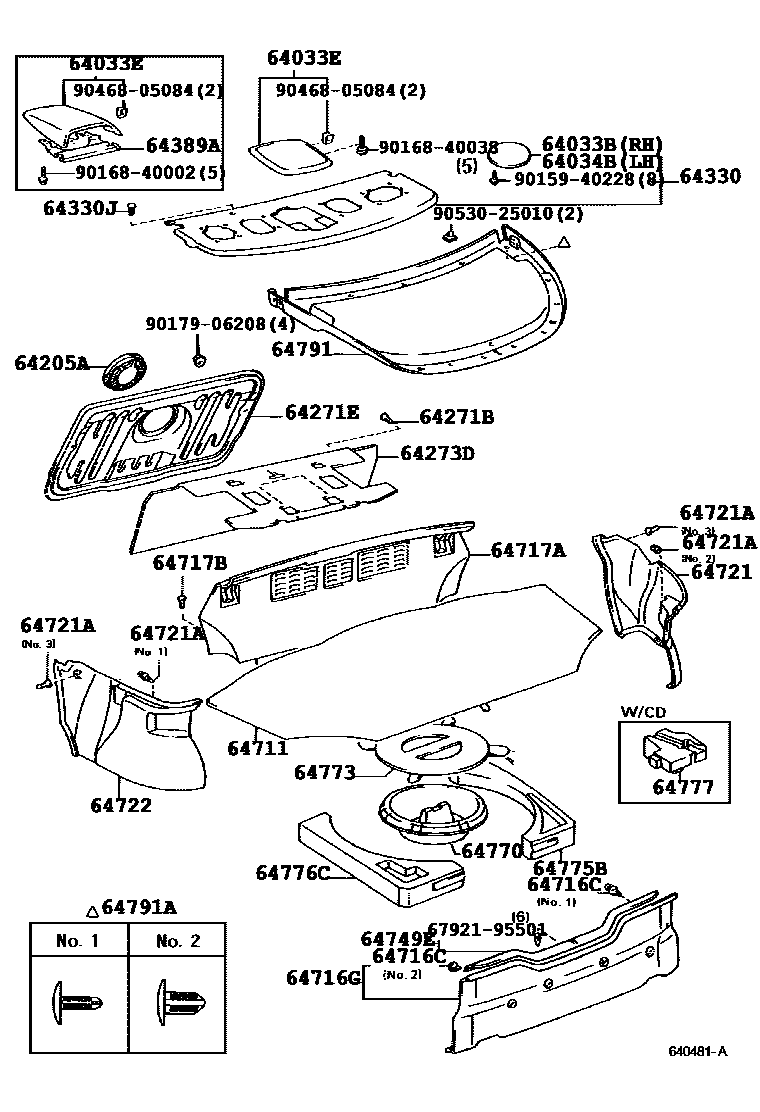

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
SHADOW GRAY,TRIM1#
GREIGE,TRIM0#
DARK SPRUCE,TRIM6#
BLACK,TRIM08,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
OAK,TRIM0#,07
OAK,TRIM07
OAK,TRIM0#
SPRUCE GRAY,TRIM6#
64033EGRILLE SUB-ASSY, REAR SPEAKER
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
64205ACOVER SUB-ASSY, ROOM PARTITION
64271BCLIP(FOR ROOM PARTITION BOARD)
64271EPANEL, ROOM PARTITION
64273DPAD, ROOM PARTITION, NO.1
64330PANEL ASSY, PACKAGE TRAY TRIM
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64389ABASE, REAR SPEAKER GRILLE
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#,6#
BLACK,TRIM07,08,2#
BLACK,TRIM0#,07,08,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,6#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#,6#
W(CD AUTO CHANGER),BLACK,TRIM0#,1#,6#
BLACK,TRIM0#,2#,6#
BLACK,TRIM0#,07,08,2#
BLACK,TRIM07,08,2#
W(CD AUTO CHANGER),BLACK,TRIM0#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#,6#
BLACK,TRIM0#,2#,6#
BLACK,TRIM07,08,2#
BLACK,TRIM0#,07,08,2#
BLACK,TRIM0#,2#
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
64770COVER ASSY, SPARE WHEEL
64773COVER, SPARE WHEEL, NO.2
64776CGUARD, SPARE WHEEL, NO.2
64777CLAMP, SPARE WHEEL COVER
64791COVER, BACK DOOR TRIM
64791ACLIP(FOR BACK DOOR TRIM)
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
9015940228
main90159-40228
9016840002
main90168-40002
9016840038
main90168-40038
9017906208
main90179-06208
9046805084
main90468-05084
9053025010
main90530-25010
33 parts on this diagram · 1 diagram in section
