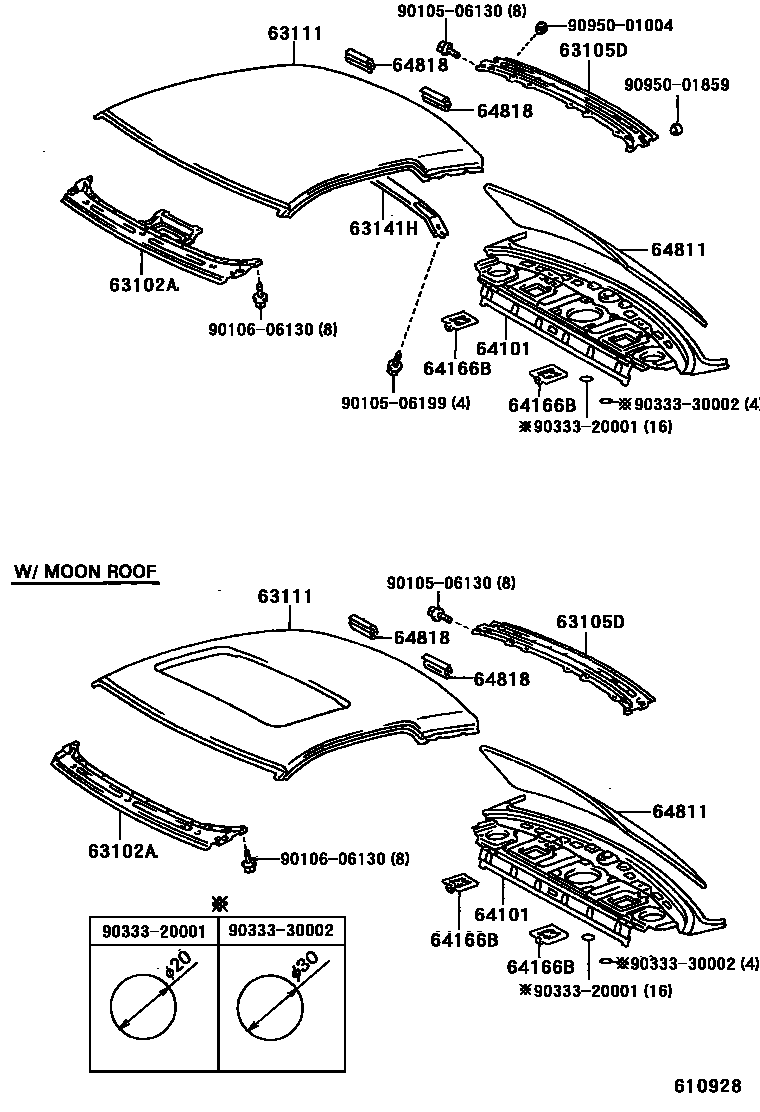

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-24010iJZZ31,UZZ30199104

main63102-24020iJZZ31,UZZ30199104

W(MOON ROOF)

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-24010iJZZ31,UZZ30199104

63111PANEL, ROOF

main63111-24050iJZZ31,UZZ30199104

main63111-24900iJZZ31,UZZ30199104

W(MOON ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-24030iJZZ31,UZZ30199104

64101PANEL SUB-ASSY, UPPER BACK

main64101-24040iJZZ31,UZZ30199104-199903

sub64101-24041

main64101-24041iJZZ31,UZZ30199903

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-24020iUZZ30..CND199105-199808

W(CD AUTO CHANGER)

sub64166-24021

main64166-24020iUZZ30..CND199104-199903

W(REAR SPEAKER)

sub64166-24021

main64166-24021iJZZ31,UZZ30199903

64811GLASS, BACK WINDOW

main64801-24070iJZZ31,UZZ30199104-199508

*EHTT,T=3.5,GRAY,W(REAR SPOILER)

sub64811-24200

sub75571-24051

main64801-24080iUZZ30199508-199511

*EHTT,T=3.5,GRAY,W(REAR SPOILER)

sub64811-24212

sub75571-24051

main64801-24090iJZZ31,UZZ30..USA199508-199511

*EHTT,T=3.5,GRAY

sub64811-24222

sub75571-24051

main64801-24160iJZZ31,UZZ30199104-199508

*EHTT,T=3.5,GRAY

sub64811-24290

sub75571-24051

main64811-24212iUZZ30199511-199608

*EHTT,T=3.5,GRAY,W(REAR SPOILER)

main64811-24222iJZZ31,UZZ30..USA199511-199608

*EHTT,T=3.5,GRAY

main64811-24340iJZZ31,UZZ30199608-199611

*EHTT,T=3.5,GREEN

main64811-24350iJZZ31,UZZ30..USA199608

*EHTT,T=3.5,GREEN,W(HIGH MOUNT STOP LAMP)

64818SPACER, BACK WINDOW GLASS

main64818-24040iJZZ31,UZZ30199104

9010506130

main90105-06130

9010506199

main90105-06199

9010606130

main90106-06130

9033320001

main90333-20001

9033330002

main90333-30002

9095001004

main90950-01004

9095001859

main90950-01859

15 parts on this diagram · 2 diagrams in section
