SIDE MEMBER
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
58747APROTECTOR, QUARTER PANEL, REAR RH
58748APROTECTOR, QUARTER PANEL, REAR LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
W(MOON ROOF)
61125BPANEL, COWL SIDE, FRONT RH
61126PANEL, COWL SIDE, FRONT LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61147AEXTENSION, FRONT BODY PILLAR, UPPER OUTER
61148EXTENSION, FRONT BODY PILLAR, OUTER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61195BPLATE, SIDE PANEL WATER GUARD, RH
61196PLATE, SIDE PANEL WATER GUARD, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61308BRETAINER SUB-ASSY, DOOR LOCK STRIKER, RH
61309BRETAINER SUB-ASSY, DOOR LOCK STRIKER, LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH
61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
sub61633-24902
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
sub61634-24902
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61683BBRACKET, REAR WHEEL OPENING, NO.1 RH
61684BBRACKET, REAR WHEEL OPENING, NO.1 LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61716AEXTENSION, ROOF SIDE, INNER UPPER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61819ASEAL, ROOF SIDE INNER LOWER COVER
61824PLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
W(MOON ROOF)
61826APLATE, NOISE CONTROL, NO.3
62429COVER, CENTER PILLAR SERVICE HOLE
62939ASILENCER, QUARTER VENT
64320BRACKET, PACKAGE TRAY TRIM, LH
66243APROTECTOR, REAR BODY, NO.1
9017906243
main90179-06243
9017908025
main90179-08025
9095001027
main90950-01027
9095001247
main90950-01247
9095001327
main90950-01327
9095001392
main90950-01392
9095001759
main90950-01759
9095001808
main90950-01808
9095006051
main90950-06051
9095006063
main90950-06063
9095006115
main90950-06115
9165160816
main91651-60816

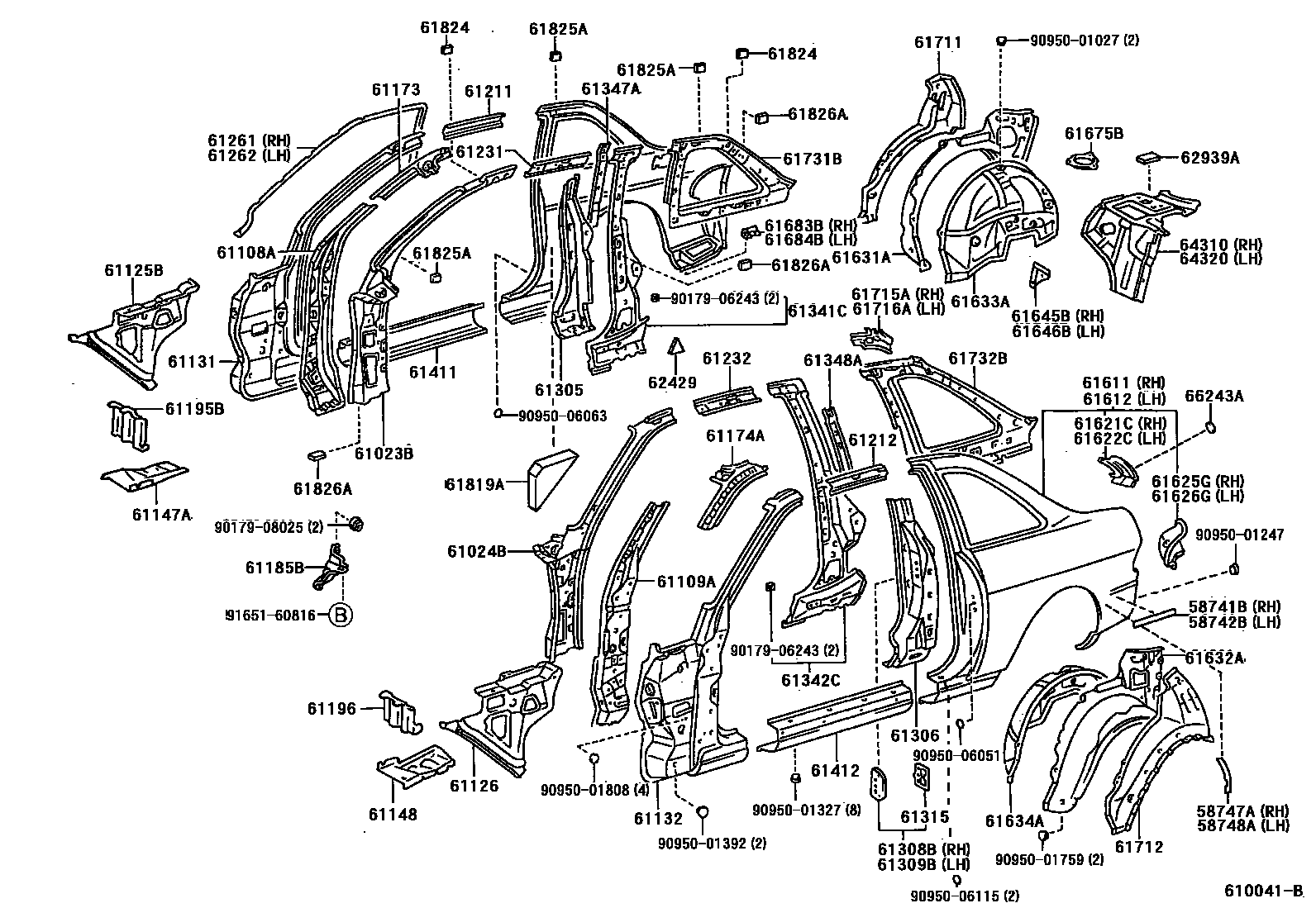

78 parts on this diagram · 1 diagram in section
